Black Box FlexPoint Ethernet Media Converter

Part No. LMC212A-SM-R3

by Black Box Corporation

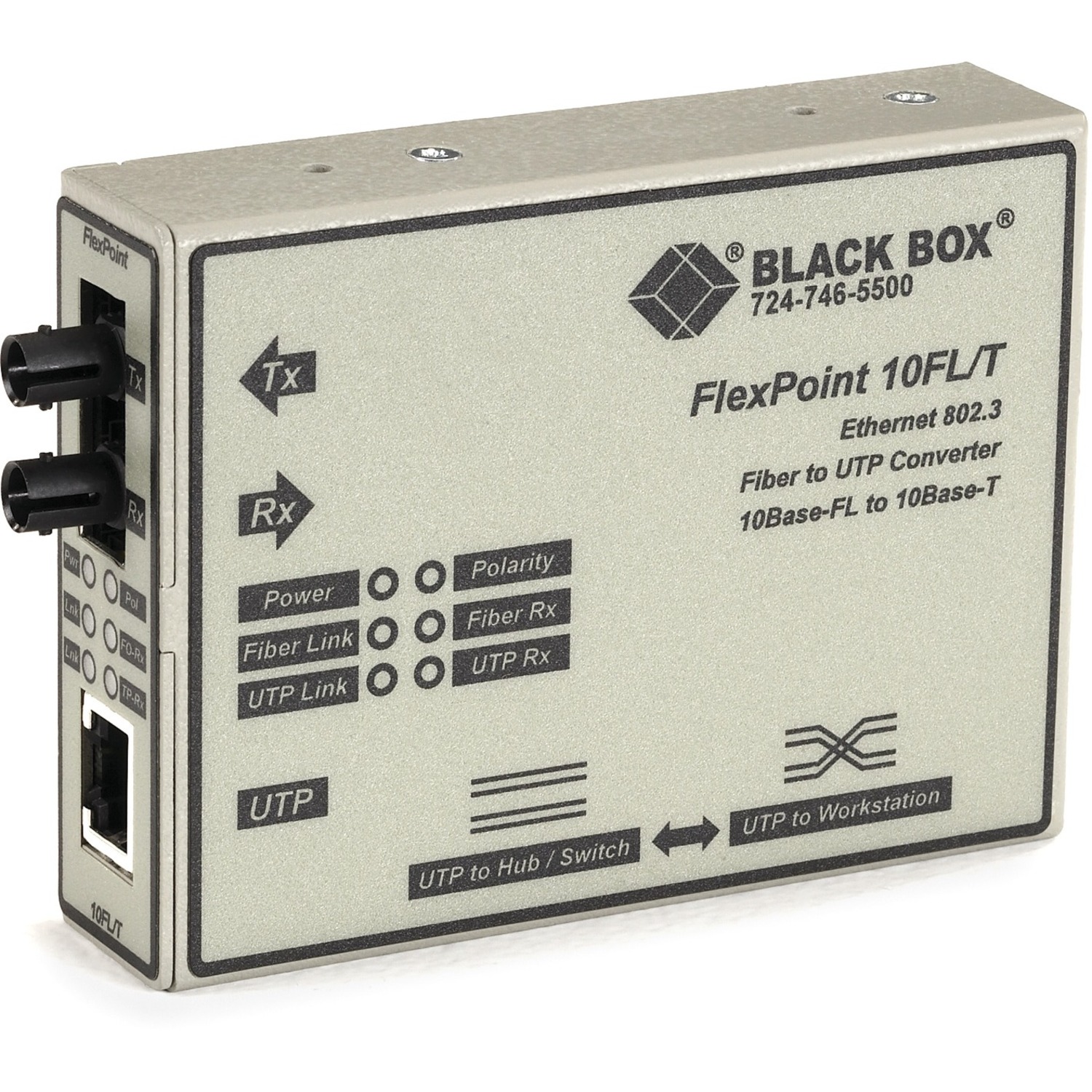

Black Box FlexPoint Ethernet Media Converter

New - 1 x Network (RJ-45) - 1 x ST Ports - Multi-mode - 1310 nm Fiber - Ethernet - 10Base-FL, 10Base-T - 15 km (9.32 Mile) - Power Supply - External, Rack-mountable

Part No. LMC212A-SM-R3

by Black Box Corporation

$536.99
General Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberLMC212A-SM-R3
Brand NameBlack Box
Product LineFlexPoint
Product NameFlexPoint Ethernet Media Converter
Marketing Information
  • Hardware available for mounting the converter to a wall or a DIN rail.
  • Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
  • Adapts automatically to 10-Mbps half-duplex or 20-Mbps full-duplex Ethernet.
  • Increases bandwidth and distance in full-duplex operation.
  • A UTP crossover switch eliminates the need for a crossed cable.

About the Flexpoint Modular Media Conversion System

The FlexPoint™ Modular Media Conversion System from Black Box provides a versatile and cost-effective standalone converters that you can use individually or upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN. The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes. Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies. Also, be sure to see the rest of the FlexPoint family:

  • FlexPoint 10BASE-T to BNC Media Converter (LMC210A)
  • FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2, etc.)
  • FlexPoint Token Ring UTP to Fiber Media Converters (LTM215A)
  • FlexPoint 10/100 Rate Converters (LMC100A-R2, etc.)
  • FlexPoint Gigabit UTP to Fiber Media Converters (LMC1003A-R3, etc.)
  • FlexPoint 100-Mbps Fiber to Fiber Converters (LMC252A-ST, etc.)
  • FlexPoint 1000-Mbps Fiber to Fiber Mode Converters (LMC1001A, etc.)
  • FlexPoint Fiber-to-Fiber Mode Converters for ATM OC-3 and OC-12 (LMC156A-ST, etc.)
  • FlexPoint T1/E1 Copper to Fiber Line Drivers (MT660A-MM, etc.)
  • FlexPoint RS-232 to Fiber Converters (ME660A-MST, etc.) Questions? Contact our FREE Tech Support.
Product ConditionNew
Product TypeTransceiver/Media Converter
Interfaces/Ports
Total Number of Ports2
Network (RJ-45)Yes
Number of Network (RJ-45) Ports1
Number of ST Ports1
Media & Performance
Media Type Supported
  • Optical Fiber
  • Twisted Pair
Fiber Mode SupportedMulti-mode
Fiber Optic Cable Wavelength1310 nm
Maximum Distance Supported15 km (9.32 Mile)
Network & Communication
Ethernet TechnologyEthernet
Network Technology
  • 10Base-FL
  • 10Base-T
Power Description
Power SourcePower Supply
Physical Characteristics
Form Factor
  • External
  • Rack-mountable
Height1" (25.40 mm)
Width3" (76.20 mm)
Depth4" (101.60 mm)
Weight (Approximate)6.40 oz (181.44 g)
Miscellaneous
Additional Information

Product works with:

  • FlexPoint Power Chassis (LMC200A, etc.)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
  • FlexPoint DC Power Converter (LMC204A)
  • Compatibility

    FlexPoint 14-Slot Power Chassis

    Country of OriginUnited States
    TAA CompliantYes
    ConditionNo
    UPC822088109044
    Warranty
    Limited Warranty1 Year
