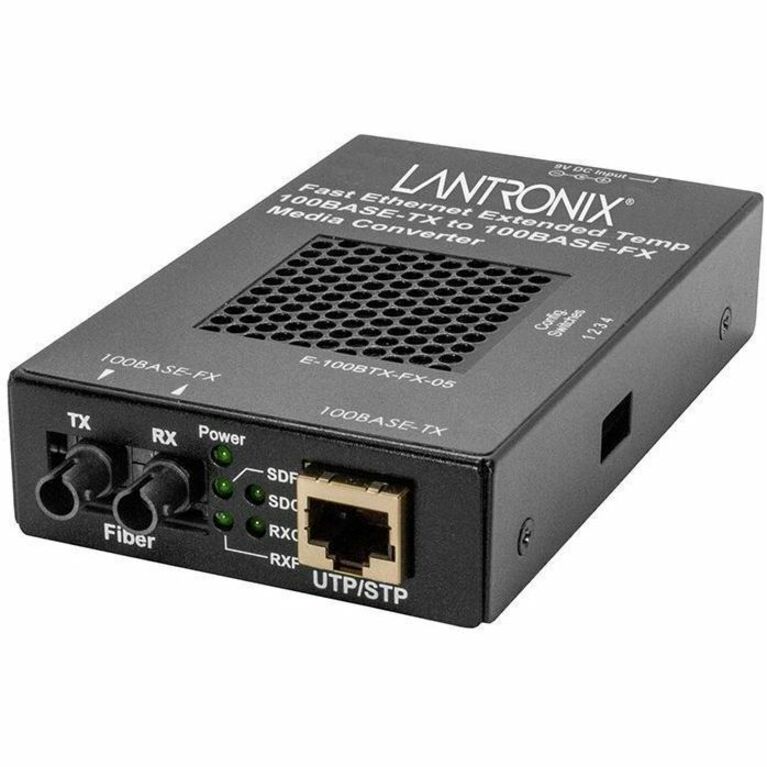

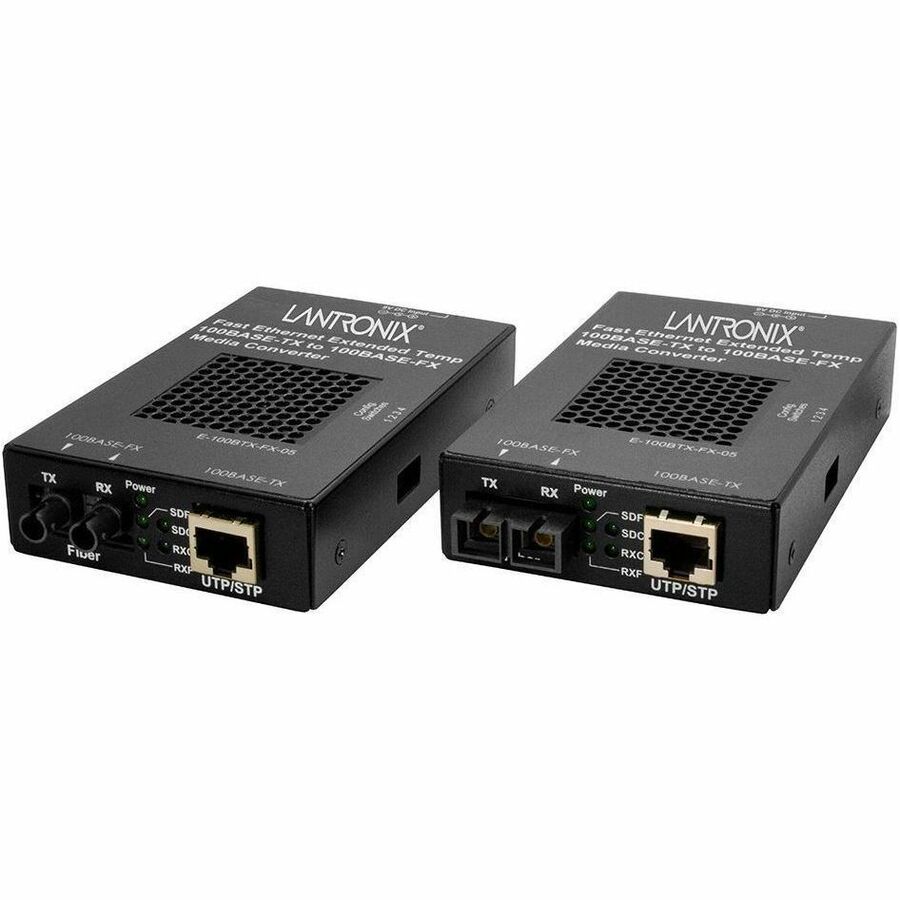

Lantronix E-100BTX-FX-05(SMHT) Fast Ethernet Media Converter
1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 20 km (12.43 Mile) - AC/DC - External, Wall Mountable
$1054.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E100BTXFX05(SMHT)NA |
| Brand Name | Lantronix |
| Product Series | E-100BTX-HT |
| Product Model | E-100BTX-FX-05(SMHT) |
| Product Name | E-100BTX-FX-05(SMHT) Fast Ethernet Media Converter |
| Marketing Information | The E-100BTX-HT Series is a Hardened Ethernet stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into extreme 100Base-TX copper environments, by supporting an operating temperature range of -25°C to 65°C. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential; NDAA Compliant, TAA Compliant |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
Network & Communication
| Ethernet Technology | Fast Ethernet |
| Network Technology |
|
Power Description
| Power Source | AC/DC |
Physical Characteristics
| Form Factor |
|
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
Miscellaneous
| Package Contents |
|
| Additional Information |
Features:
|
| Certifications & Standards |
|
| TAA Compliant | Yes |
| Condition | No |
Warranty
| Limited Warranty | Lifetime |
