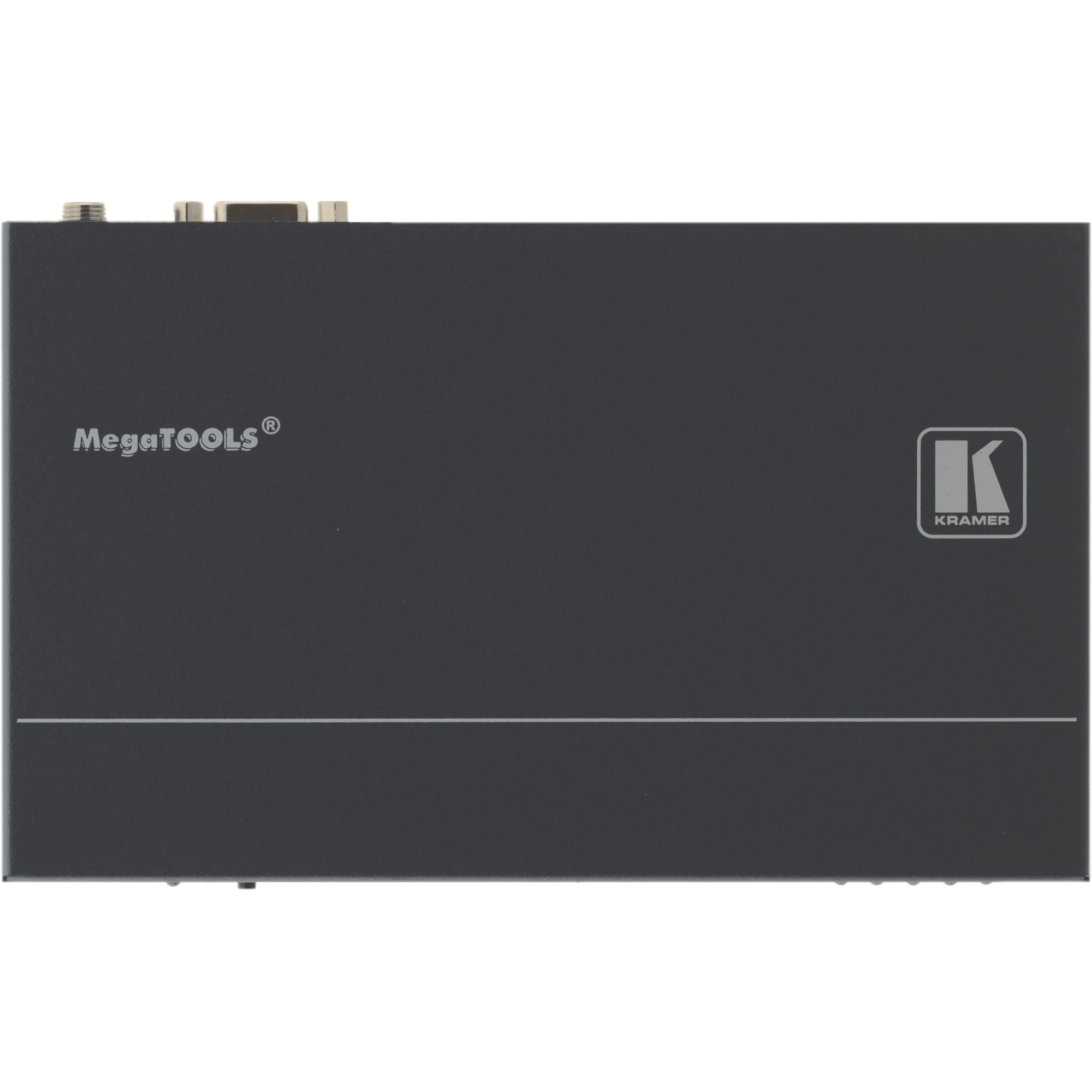

Kramer Video Extender
2 Input Device - 1 Output Device - 328.08 ft (100000 mm) Range - 2 x Network (RJ-45) - 2 x HDMI In - Twisted Pair - Category 7 - Rack-mountable
$642.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | TP-582T |
| Brand Name | Kramer |
| Product Model | TP-582T |
| Product Name | Video Extender |
| Marketing Information | The TP-582T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-582T selects one of two HDMI inputs, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK audio outputs. |
| Product Type | Video Extender Transmitter |
Technical Information
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
Interfaces/Ports
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of HDMI Inputs | 2 |
Media & Performance
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
Power Description
| Input Voltage | 5 V DC |
Physical Characteristics
| Transmitter Height | 1" (25.40 mm) |
| Transmitter Width | 7.40" (187.96 mm) |
| Transmitter Depth | 4.50" (114.30 mm) |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 600 g |
Warranty
| Limited Warranty | 7 Year |
