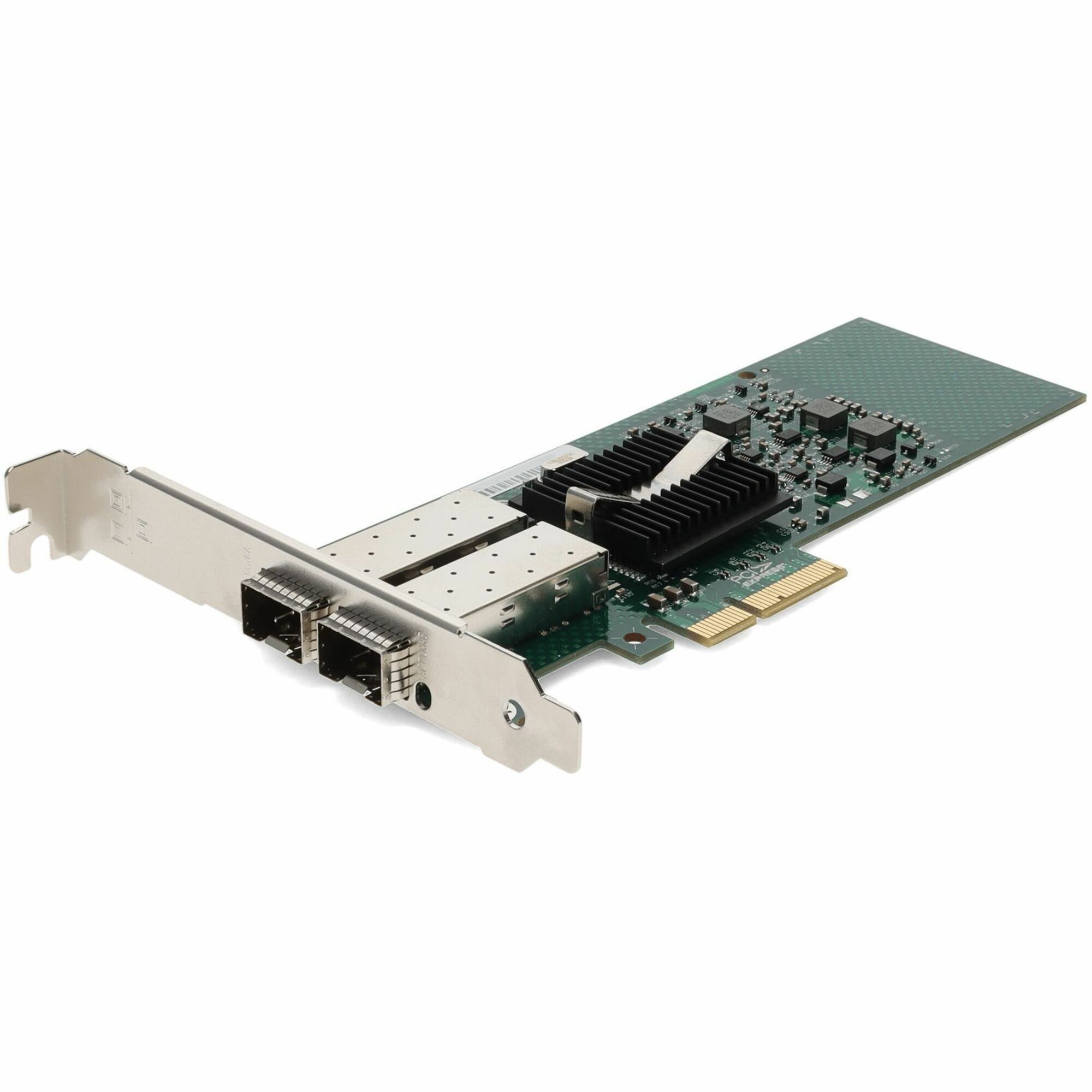

AddOn 1Gbs Dual Open SFP Port PCIe 2.0 x4 Network Interface Card
PCI Express 2.0 x4 - 8 Gbit/s Data Transfer Rate - Intel 82576 - 2 Port(s) - Optical Fiber - Multi-mode, Single-mode - 1000Base-LX, 1000Base-SX - SFP - Plug-in Card
$207.99
In Stock Availability
- All Locations: (4+)
- Other_SY (4+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-PCIE-2SFP |
| Brand Name | AddOn |
| Product Model | ADD-PCIE-2SFP |
| Product Name | 1Gbs Dual Open SFP Port PCIe 2.0 x4 Network Interface Card |
| Marketing Information | This is a Gigabit Ethernet PCIe 2.0 x4 network interface card with dual open SFP ports that comply with IEEE 802.3 standards. It is based on an Intel 82576 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The dual open SFP ports allow users to choose from a range of SFP transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time. |
| Packaged Quantity | 1 |
| Product Type | Gigabit Ethernet Card |
Technical Information
| Chipset Manufacturer | Intel |
| Chipset Model | 82576 |
Interfaces/Ports
| Host Interface | PCI Express 2.0 x4 |
| Total Number of Ports | 2 |
| Network (RJ-45) | No |
| USB | No |
| Serial Port | No |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
I/O Expansions
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
Media & Performance
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Core/Cladding Specification |
|
| Maximum Data Transfer Rate | 8 Gbit/s |
| Fiber Mode Supported |
|
Network & Communication
| Network Technology |
|
| InfiniBand | No |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 4.20" (106.68 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 3.70" (93.98 mm) |
| Length | 4.69" (119.13 mm) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
Miscellaneous
| Package Contents |
|
| Application/Usage | Network |
| Device Supported | PC |
| Platform Supported | PC |
| Operating System Compatibility |
|
| System Requirements | Compatible operating system:
|
| Country of Origin | China |
| Condition | No |
| UPC | 0821455048115 |
Warranty
| Limited Warranty | Lifetime |
