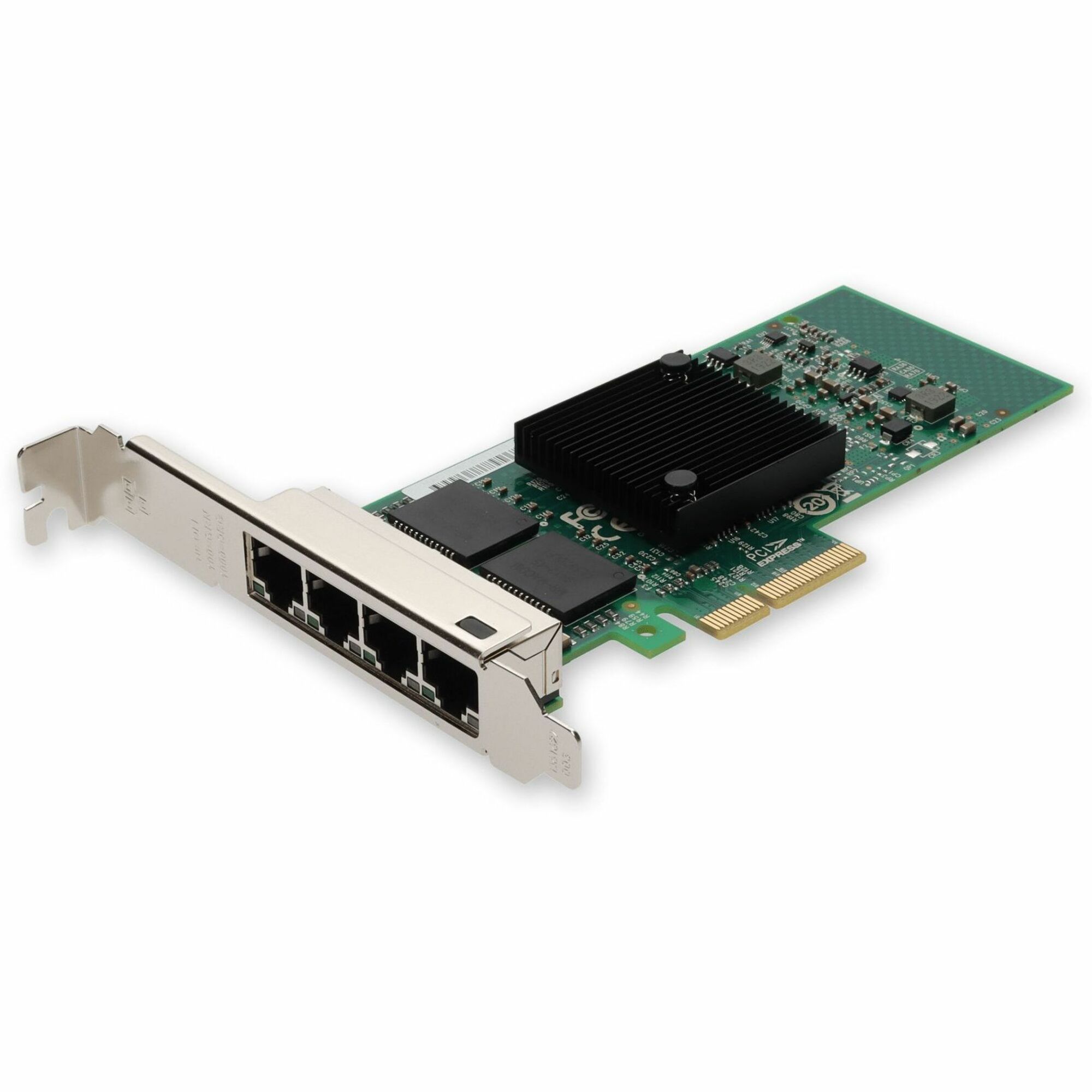

AddOn 10/100/1000Mbs Quad RJ-45 Port 100m PCIe 2.0 x4 Network Interface Card
PCI Express 2.0 x4 - 8 Gbit/s Data Transfer Rate - Intel 82580 - 4 Port(s) - 4 x Network (RJ-45) - Twisted Pair - 10/100/1000Base-T - Plug-in Card
$380.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-PCIE-4RJ45 |
| Brand Name | AddOn |
| Product Model | ADD-PCIE-4RJ45 |
| Product Name | 10/100/1000Mbs Quad RJ-45 Port 100m PCIe 2.0 x4 Network Interface Card |
| Marketing Information | This is a Gigabit Ethernet PCIe 2.0 x4 network interface card with quad RJ-45 ports that comply with IEEE 802.3 standards. It is based on an Intel 82580 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10/100/1000Mbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The quad RJ-45 ports operate over copper patch cable, allowing for an operating distance of 100m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time. |
| Packaged Quantity | 1 |
| Product Type | Gigabit Ethernet Card |
Technical Information
| Chipset Manufacturer | Intel |
| Chipset Model | 82580 |
Interfaces/Ports
| Host Interface | PCI Express 2.0 x4 |
| Total Number of Ports | 4 |
| Network (RJ-45) | Yes |
| USB | No |
| Serial Port | No |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 4 |
Media & Performance
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 8 Gbit/s |
Network & Communication
| Network Technology | 10/100/1000Base-T |
| InfiniBand | No |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 4.20" (106.68 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 3.70" (93.98 mm) |
| Length | 4.69" (119.13 mm) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
Miscellaneous
| Package Contents |
|
| Application/Usage | Network |
| Device Supported | PC |
| Platform Supported | PC |
| Operating System Compatibility |
|
| System Requirements | Compatible operating system:
|
| Country of Origin | China |
| Condition | No |
| UPC | 0821455048146 |
Warranty
| Limited Warranty | Lifetime |
