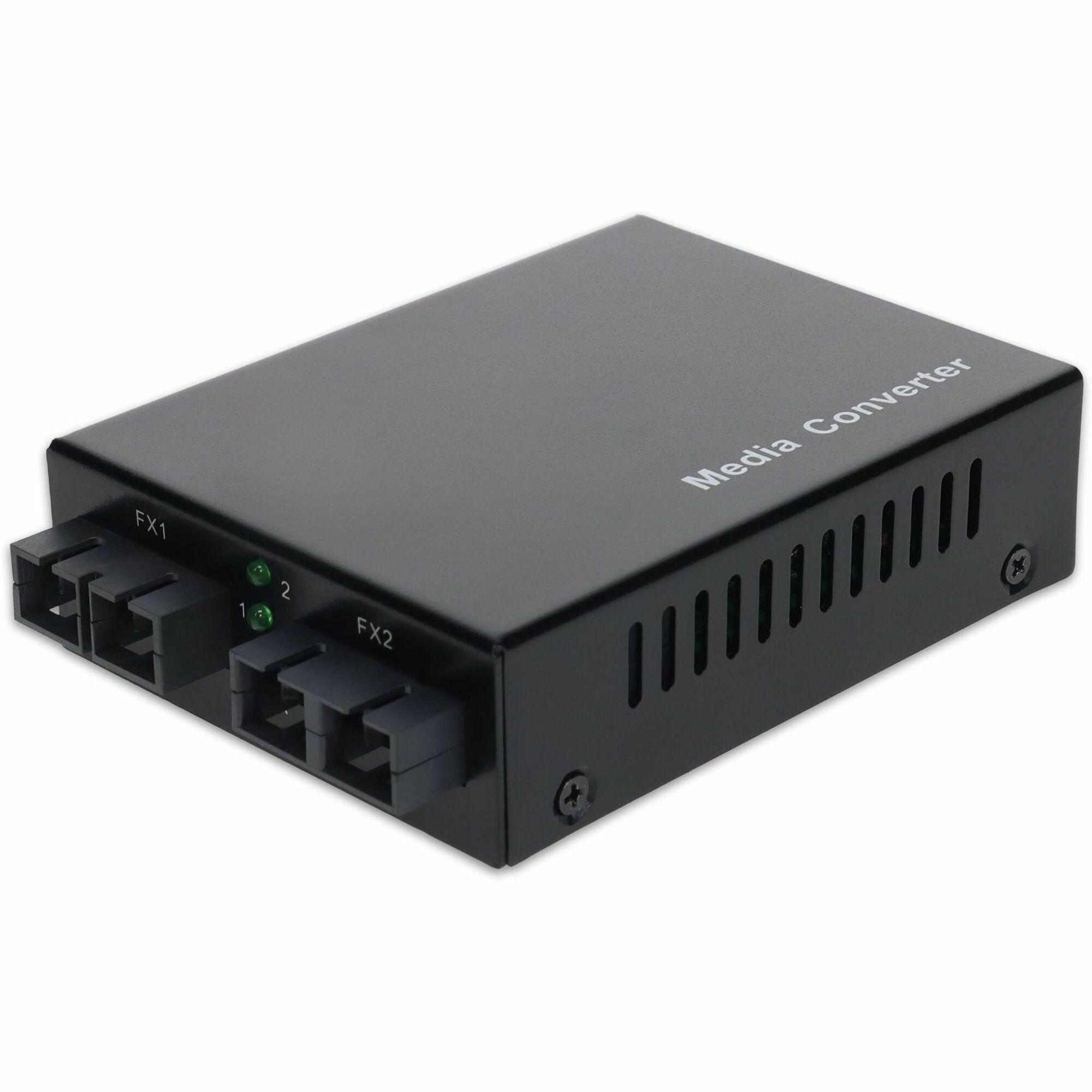

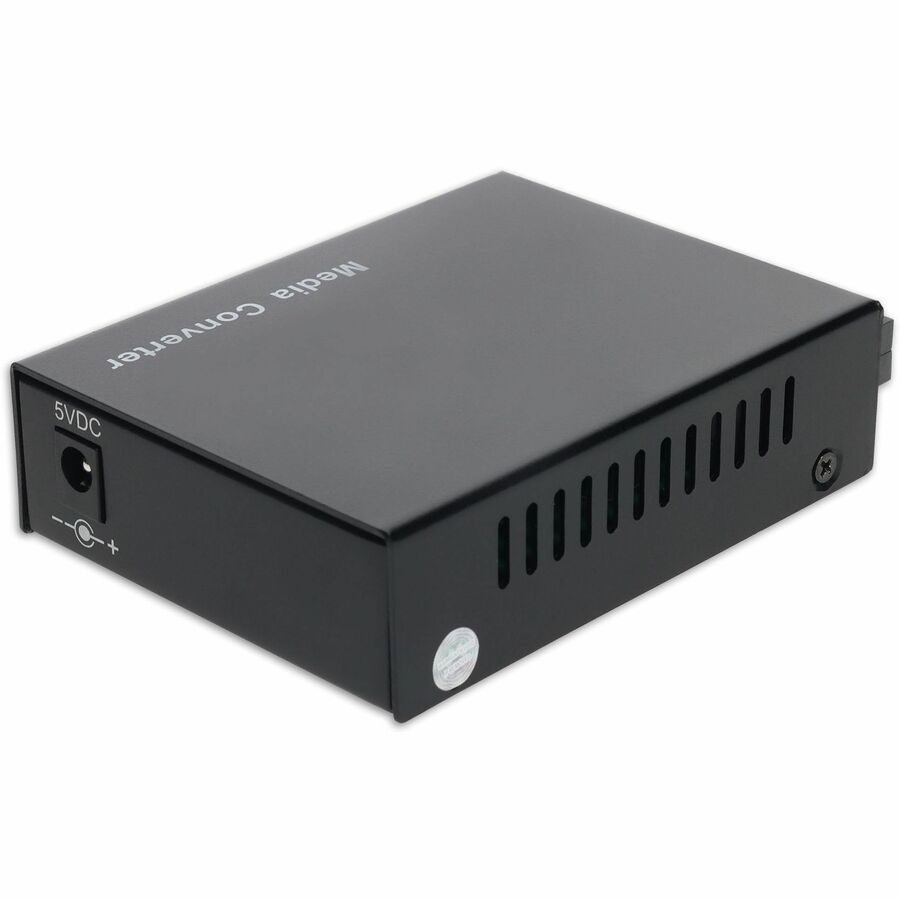

AddOn 1000Base-SX(ST) to 1000Base-LX(ST) MMF/SMF 850nm/1310nm 550m/20km Media Converter
2 x ST Ports - Single-mode, Multi-mode - 850 nm, 1310 nm Fiber - Gigabit Ethernet - 1000Base-LX, 1000Base-SX - 1 Gbit/s - 20 km (12.43 Mile) - 2 x Expansion Slots - AC/DC
$264.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-GMC-MMSM-2ST |
| Brand Name | AddOn |
| Product Name | Transceiver/Media Converter |
| Marketing Information | This is a media converter that converts a 1000Base-SX(ST) to 1000Base-LX(ST), providing the conversion from 850nm to 1310nm wavelengths, while extending distance reach between 550m to 20km. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Management Port | No |
| Number of ST Ports | 2 |
Media & Performance
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported |
|
| Fiber Optic Cable Wavelength |
|
| Maximum Data Transfer Rate | 1 Gbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
I/O Expansions
| Total Number of Expansion Slots | 2 |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Power Description
| Power Source | AC/DC |
| Input Voltage | 5 V DC |
Physical Characteristics
| Height | 3.50" (88.90 mm) |
| Width | 1.50" (38.10 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 8 oz (226.80 g) |
Miscellaneous
| TAA Compliant | No |
| Condition | No |
| UPC | 821455347911 |
Warranty
| Limited Warranty | 3 Year |
