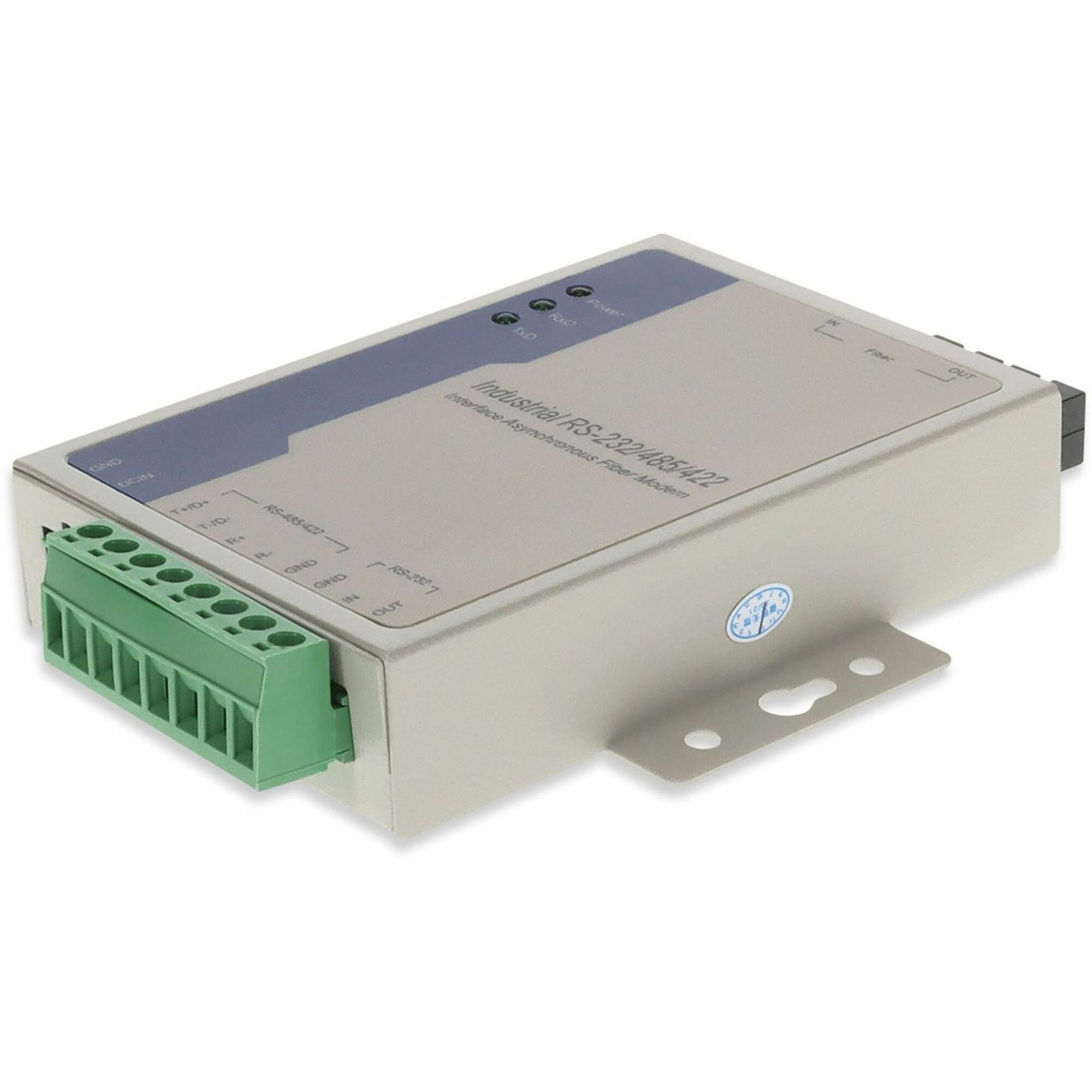

AddOn Serial RS232/RS485/RS422 to Fiber SMF 1310nm 20km SC Serial Media Converter
1 x SC Ports - 1310 nm Fiber - 115.20 kbit/s - 20 km (12.43 Mile) - AC/DC
$315.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-SERIAL-2SC |
| Brand Name | AddOn |
| Product Model | ADD-SERIAL-2SC |
| Product Name | Media Converter Rs232/Rs485/Rs422 To Smf 1310Nm Sc 20Km Reach |
| Marketing Information | This is a serial media converter that allows the conversion from a RS232/RS485/RS422 port to fiber via a 1310nm single-mode fiber (SMF) SC connector, allowing a distance reach up to 20km. This provides a cost effective conversion from serial RS232/RS485/RS422 to fiber, while extending your network reach beyond the 100m reach limitation of copper. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 2 |
| DVI | No |
| USB | No |
| Parallel Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Number of Serial Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 115.20 kbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
Power Description
| Power Source | AC/DC |
| Input Voltage | 5 V DC |
Physical Characteristics
| Height | 4.50" (114.30 mm) |
| Width | 3.50" (88.90 mm) |
| Depth | 0.75" (19.05 mm) |
| Weight (Approximate) | 1.80 lb (816.47 g) |
Miscellaneous
| Application/Usage | Network |
| Additional Information | |
| Compatibility | |
| Country of Origin | China |
| TAA Compliant | No |
| Condition | No |
| UPC | 821455035399 |
Warranty
| Limited Warranty | 3 Year |
