Black Box LBH 120 Ethernet Switch

Part No. LBH120A-H-ST

by Black Box Corporation

$259.99

In Stock Availability

  • All Locations: (4+)
  • Other_SY (4+)

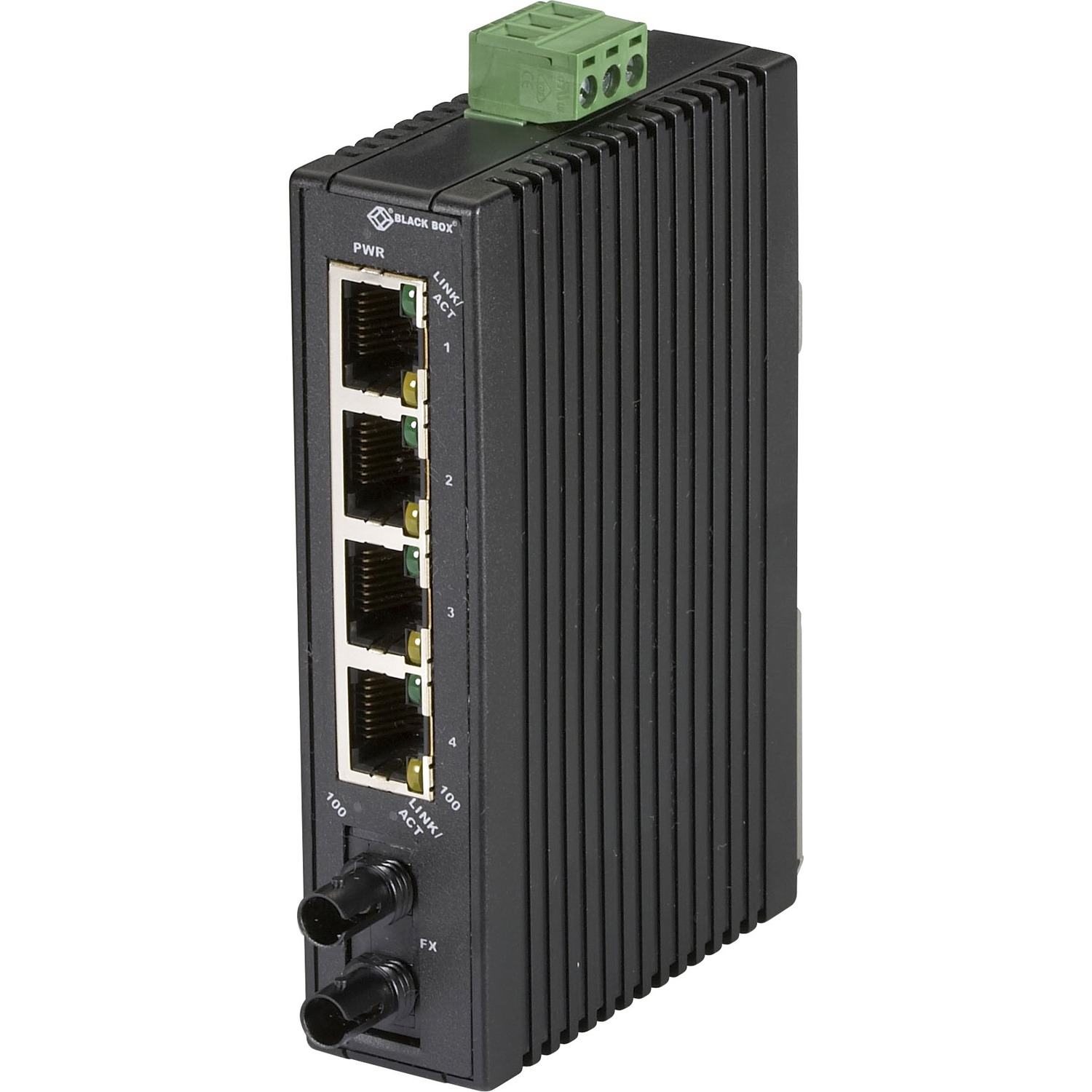

Black Box LBH 120 Ethernet Switch

5 Ports - 10/100Base-TX, 100Base-X - 2 Layer Supported - Twisted Pair, Optical Fiber - Rail-mountable, DIN Rail Mountable - 5 Year Limited Warranty

Part No. LBH120A-H-ST

by Black Box Corporation

$259.99

In Stock Availability

  • All Locations: (4+)
  • Other_SY (4+)

General Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberLBH120A-H-ST
Brand NameBlack Box
Product SeriesLBH120
Product NameLBH 120 Ethernet Switch
Marketing Information

  • An economical way to add four 10-/100-Mbps ports to your network.
  • Features an industrial-strength plastic case and complies with IEC 61000-Part 6-2 generic standards for electromagnetic compatibility (EMC) in industrial environments.
  • Offers full wire-speed forwarding rates across the network.
  • Supports 2048 MAC addresses and features a 384 KB buffer memory.
  • Can be installed easily on a DIN rail. Mounting kit is included.
  • Order power supplies separately, see Related Products.

    • Product TypeEthernet Switch
    Interfaces/Ports
    Total Number of Network Ports5
    Token Ring PortNo
    LRE PortNo
    BypassNo
    Management PortNo
    USBNo
    Number of Network (RJ-45) Ports4
    Number of ST Ports1
    ST Port TypeDuplex
    Port/Expansion Slot Details5 x Fast Ethernet Network
    Media & Performance
    Media Type Supported
    • Twisted Pair
    • Optical Fiber
    Fiber Mode SupportedMulti-mode
    Fiber Optic Cable Wavelength1300 nm
    Ethernet TechnologyFast Ethernet
    Network Technology
    • 10/100Base-TX
    • 100Base-X
    Network & Communication
    Layer Supported2
    Power Description
    Power SourcePower Supply
    Physical Characteristics
    Form Factor
    • Rail-mountable
    • DIN Rail Mountable
    Height4.30" (109.22 mm)
    Width1" (25.40 mm)
    Depth2.80" (71.12 mm)
    Weight (Approximate)8 oz (226.80 g)
    Miscellaneous
    Package Contents
    • LBH 120 Ethernet Switch
    • Din Rail Mounting Kit
    Certifications & StandardsEMI:
    • FCC Part 15, Class A
    • EN61000-6-3: EN55022
    • EN61000-3-2
    • EN61000-3-3
    EMS:
    • EN61000-6-2:EN61000-4-2
    • EN61000-4-3
    • EN61000-4-4
    • EN61000-4-5
    • EN61000-4-6
    • EN61000-4-8
    • EN61000-4-11
    Environmental test:
    • IEC60068-2-6 Fc
    • IEC60068-2-27 Ea
    • IEC60068-2-32 Ed 0
    • IP30
    • CE
    • TAA
    IEEE Standards:
    • 802.3x
    • 802.3
    • 802.3u
    Country of OriginTaiwan
    TAA CompliantYes
    Environmentally FriendlyYes
    ConditionNo
    UPC822088105237
    Warranty
    Limited Warranty5 Year
