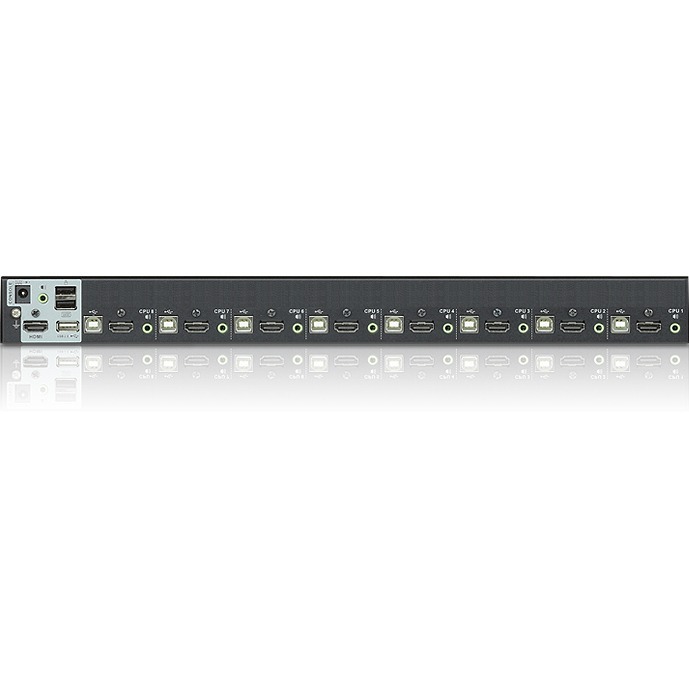

ATEN 8-Port USB HDMI KVM Switch
8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable
$594.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1798 |
| Brand Name | ATEN |
| Product Model | CS1798 |
| Product Name | 8-Port USB HDMI KVM Switch |
| Marketing Information | The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality, which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment. Furthermore, the CS1798 comes with ATEN's on-screen display (OSD) function, which can access any computer connected to the installation, it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis). |
| Product Type | KM Switchbox |
Technical Information
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Minimum Scan Interval | 1 Second |
Video
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
Interfaces/Ports
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Headphone | Yes |
| Microphone | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 12 |
| Number of HDMI Ports | 9 |
Power Description
| Input Voltage | 5 V DC |
Physical Characteristics
| Form Factor | Rack-mountable |
| Height | 4.40" (111.76 mm) |
| Width | 25.66" (651.76 mm) |
| Depth | 43.72" (1110.49 mm) |
| Weight (Approximate) | 7.69 lb (3490 g) |
Miscellaneous
| Package Contents |
|
| Platform Supported |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Condition | No |
| UPC | 672792005565 |
