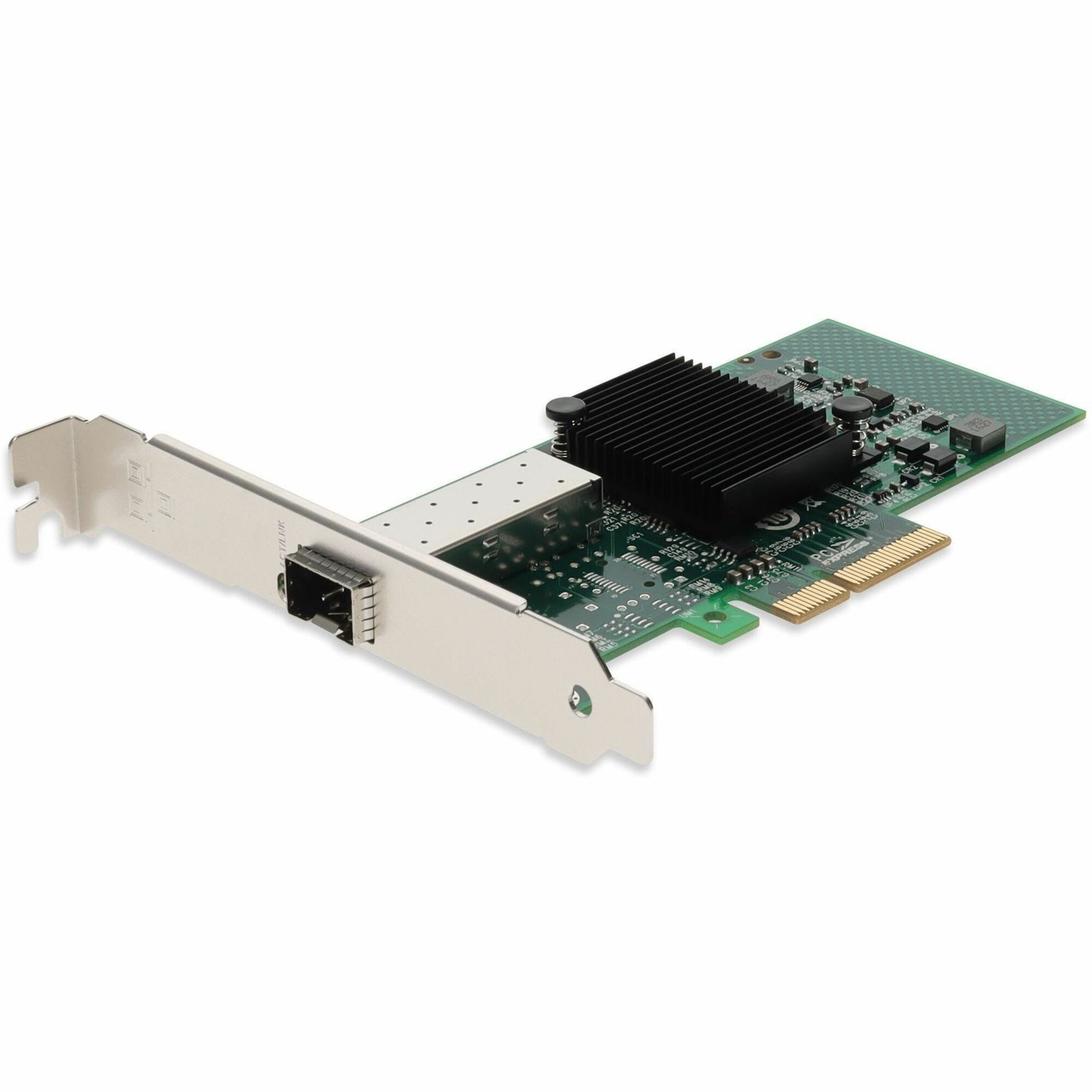

AddOn HP 394793-B21 Comparable 1Gbs Single Open SFP Port 550m MMF PCIe 2.0 x4 Network Interface Card w/1000Base-SX SFP Transceiver
PCI Express 2.0 x4 - 8 Gbit/s Data Transfer Rate - Intel 82574 - 1 Port(s) - Optical Fiber - Multi-mode - 1000Base-X - Plug-in Card
$236.99
In Stock Availability
- All Locations: (90+)
- Other_SY (90+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | 394793-B21-AO |
| Brand Name | AddOn |
| Product Name | HP Gigabit Ethernet Card |
| Marketing Information | This is an HP 394793-B21 comparable Gigabit Ethernet PCIe 2.0 x4 network interface card with 1 included SX SFP transceiver that complies with IEEE 802.3 standards. It is based on an Intel 82574 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 1Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The single open SFP port accommodates multi-mode, providing a reach up to 550m. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time. |
| Packaged Quantity | 2 Piece |
| Product Type | Gigabit Ethernet Card |
Technical Information
| Chipset Manufacturer | Intel |
| Chipset Model | 82574 |
Interfaces/Ports
| Host Interface | PCI Express 2.0 x4 |
| Total Number of Ports | 1 |
I/O Expansions
| Expansion Slot Type | SFP |
Media & Performance
| Media Type Supported | Optical Fiber |
| Maximum Operating Distance | 1804.46 ft (550000 mm) |
| Maximum Data Transfer Rate | 8 Gbit/s |
| Fiber Mode Supported | Multi-mode |
Network & Communication
| Network Technology | 1000Base-X |
Physical Characteristics
| Form Factor | Plug-in Card |
| Height | 4.20" (106.68 mm) |
| Width | 0.80" (20.32 mm) |
| Depth | 3.70" (93.98 mm) |
| Weight (Approximate) | 6.40 oz (181.44 g) |
Miscellaneous
| Package Contents | |
| Application/Usage | Network |
| Additional Information | |
| Device Supported | Server |
| Operating System Compatibility |
|
| Country of Origin | China |
| TAA Compliant | No |
| Condition | No |
| UPC | 0821455095713 |
Warranty
| Limited Warranty | Lifetime |
