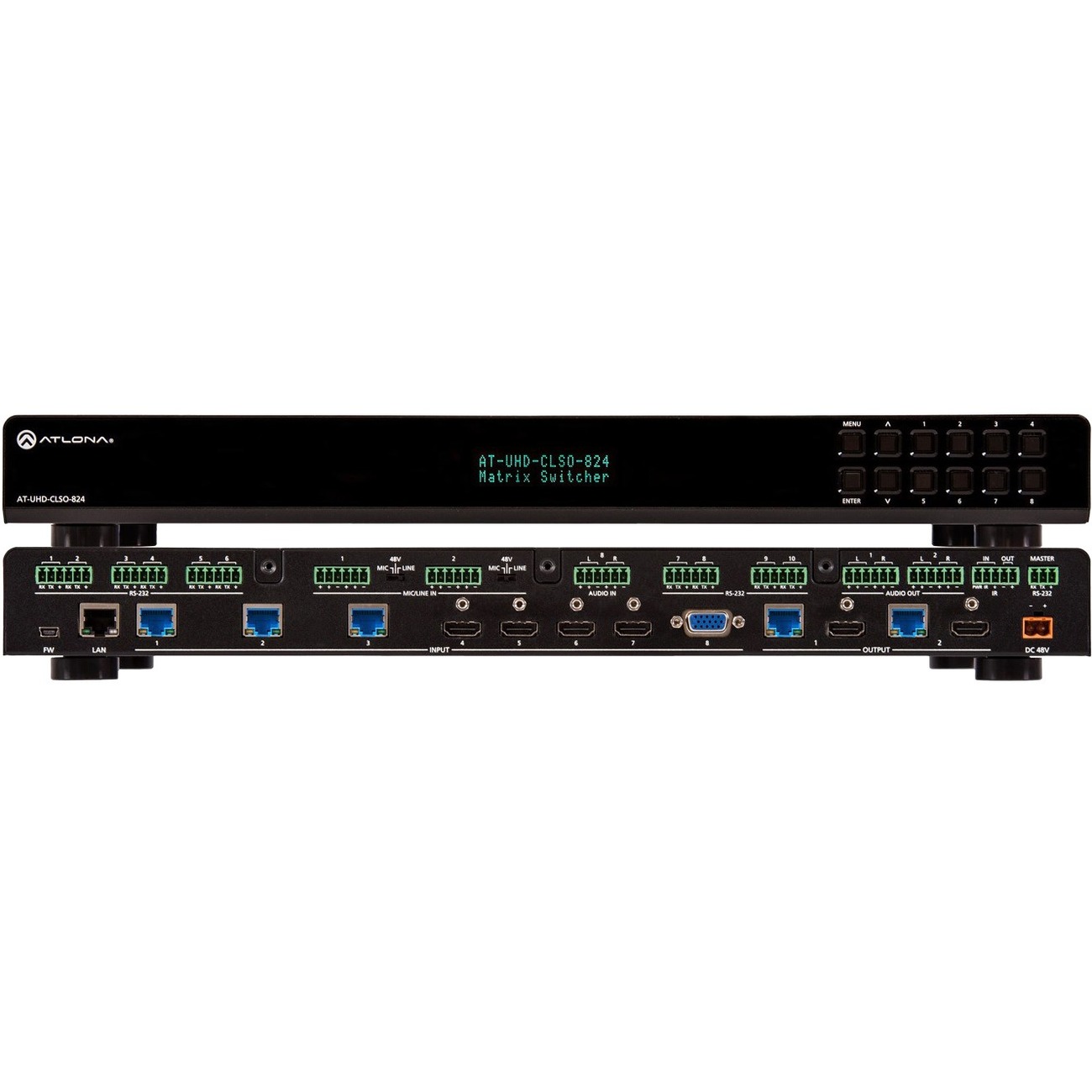

Atlona 4K/UHD 8×2 Matrix with HDBaseT and HDMI Outputs
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-UHD-CLSO-824 |
| Brand Name | Atlona |
| Product Model | AT-UHD-CLSO-824 |
| Product Name | 4K/UHD 8×2 Matrix with HDBaseT and HDMI Outputs |
| Marketing Information | The AT-UHD-CLSO-824 is a 4K/UHD 8×2 matrix switcher with dual, HDBaseT and mirrored HDMI outputs for 4K/UHD @ 60Hz signals. This matrix switcher has multi-format signal-handling, Ethernet-enabled 100-meter HDBaseT™ input/output extension, and advanced audio capabilities. Presentation Matrix Switcher The AT-UHD-CLSO-824 brings advanced multi-format matrix switching to the CLSO series of classroom and small office switchers. The mix of inputs supports remote sources at lecterns and conference room tables via HDBaseT transmission as well as local sources in the equipment rack. The matrix serves a wide array of room configurations with two HDBaseT video outputs, each featuring a mirrored HDMI port to provide an additional output for a local display or an Atlona Extender Kit. 100-meter HDBaseT Routing The AT-UHD-CLSO-824 offers three Ethernet-enabled HDBaseT inputs designed to provide system design flexibility. To increase the number of system inputs, designers can choose the AT-HDVS-200-TX HDBaseT transmitter that offers HDMI and VGA inputs with Ethernet or the AT-HDVS-150-TX HDBaseT transmitter that offers HDMI and VGA inputs without Ethernet. The switcher is also compatible with the UHD-EX Series of HDBaseT extenders for HDMI signals with or without control signals. Two HDBaseT outputs on the switcher provide extended distance AV signal extension up to 328 feet (100 m). These outputs are Ethernet-enabled to also provide extension of control signals to displays. All HDBaseT inputs and outputs feature industry standard Power over Ethernet to remotely power extender endpoints. Audio Sophisticated matrixing capabilities within the switcher include a dedicated audio mix-matrix for signals routed to the switcher's outputs. This gives integrators the ability to mix audio signals from either of the two selected video sources along with both mic/line input signals. Audio is de-embedded from the video signal for processing and mixing with the mic/line sources. The resulting audio mix is sent to the balanced line level analog outputs and re-embedded to the digital video outputs. The CLSO for complex systems The AT-UHD-CLSO-824 serves as the centerpiece of complex systems where audio and video signals must be dedicated to different zones. It also provides the flexibility to route identical or separate video signals to the two displays in larger rooms. |
| Product Type | Audio/Video Switchbox |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 8 |
| Device Supported |
|
| Number of Displays Supported | 2 |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 6 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 2 |
| Number of VGA Inputs | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.08" (433.83 mm) |
| Depth | 10.04" (255.02 mm) |
| Weight (Approximate) | 3.49 kg |
| Package Contents |
|
| Condition | No |
| UPC | 846352004354 |
| Limited Warranty | 10 Year |
