Atlona Three-Input HD Video Scaler for HDMI and VGA Signals
1920 x 1200 - WUXGA - 3 x 1 - Computer, Notebook, Display, TV, DVR, Camera, A/V Receiver, Projector - 1 x HDMI Out
$663.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HD-SC-500 |
| Brand Name | Atlona |
| Product Model | HD-SC-500 |
| Product Name | Three-Input HD Video Scaler for HDMI and VGA Signals |

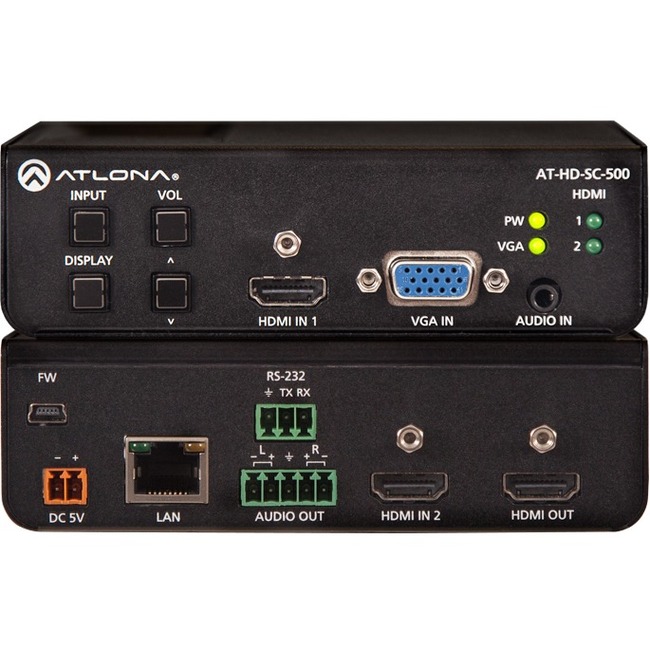

| Marketing Information | The Atlona AT-HD-SC-500 is a scaler with built-in 3×1 switcher for HDMI and VGA signals. It features two HDMI inputs and a VGA input with 3.5mm audio connector. The scaler is designed to take video signals from switchers, PCs or laptops and scale them to an HDMI output at a wide-range of HDTV and PC resolutions, up to 1080p/60Hz and WUXGA (1920×1200). For ease of operation, the AT-HD-SC-500 features auto-switching for active input selection when sources are connected or if there is a change in source power status. Input selection can also be controlled from the front panel, RS-232, or TCP/IP commands. Set-up is performed using Atlona's webGUI or OSD. Set-up options include variable preferred input resolutions, output resolution, plus control of brightness, contrast, saturation, hue and sharpness. The AT-HD-SC-500 is ideal for applications where multiple signals with different resolutions must be optimized for a display. The AT-HD-SC-500 combines a scaler with multiple inputs and auto-switching capabilities for use in a small system with HDMI and VGA sources, and audio features including analog de-embedding, volume control, and equalization. Scaler with HDMI output and input resolution control -
|
| Product Type | Audio/Video Switchbox |
Technical Information
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 3 |
| Device Supported |
|
| Number of Displays Supported | 1 |
Video
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
Interfaces/Ports
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Number of VGA Inputs | 1 |
Media & Performance
| Maximum Operating Distance | 30 ft (9144 mm) |
Physical Characteristics
| Form Factor |
|
| Height | 1.50" (38 mm) |
| Width | 5" (127 mm) |
| Depth | 4.02" (102 mm) |
| Weight (Approximate) | 270 g |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Condition | No |
| UPC | 846352004668 |
Warranty
| Limited Warranty | 10 Year |
