TRENDnet Hardened Industrial 100Base-FX Multi-Mode SC Fiber Converter; (2km; 1.2 Miles); IP40 Rated Housing; TI-F10SC

Part No. TI-F10SC

by TRENDnet

$111.99

On back-order, will ship once in-stock

  • All Locations: (0+)

TRENDnet Hardened Industrial 100Base-FX Multi-Mode SC Fiber Converter; (2km; 1.2 Miles); IP40 Rated Housing; TI-F10SC

Hardened Industrial 100Base-FX

Part No. TI-F10SC

by TRENDnet

$111.99

On back-order, will ship once in-stock

  • All Locations: (0+)

General Information
ManufacturerTRENDnet
Manufacturer Part NumberTI-F10SC
Brand NameTRENDnet
Product ModelTI-F10SC
Product NameHardened Industrial 100Base-FX
Marketing Information

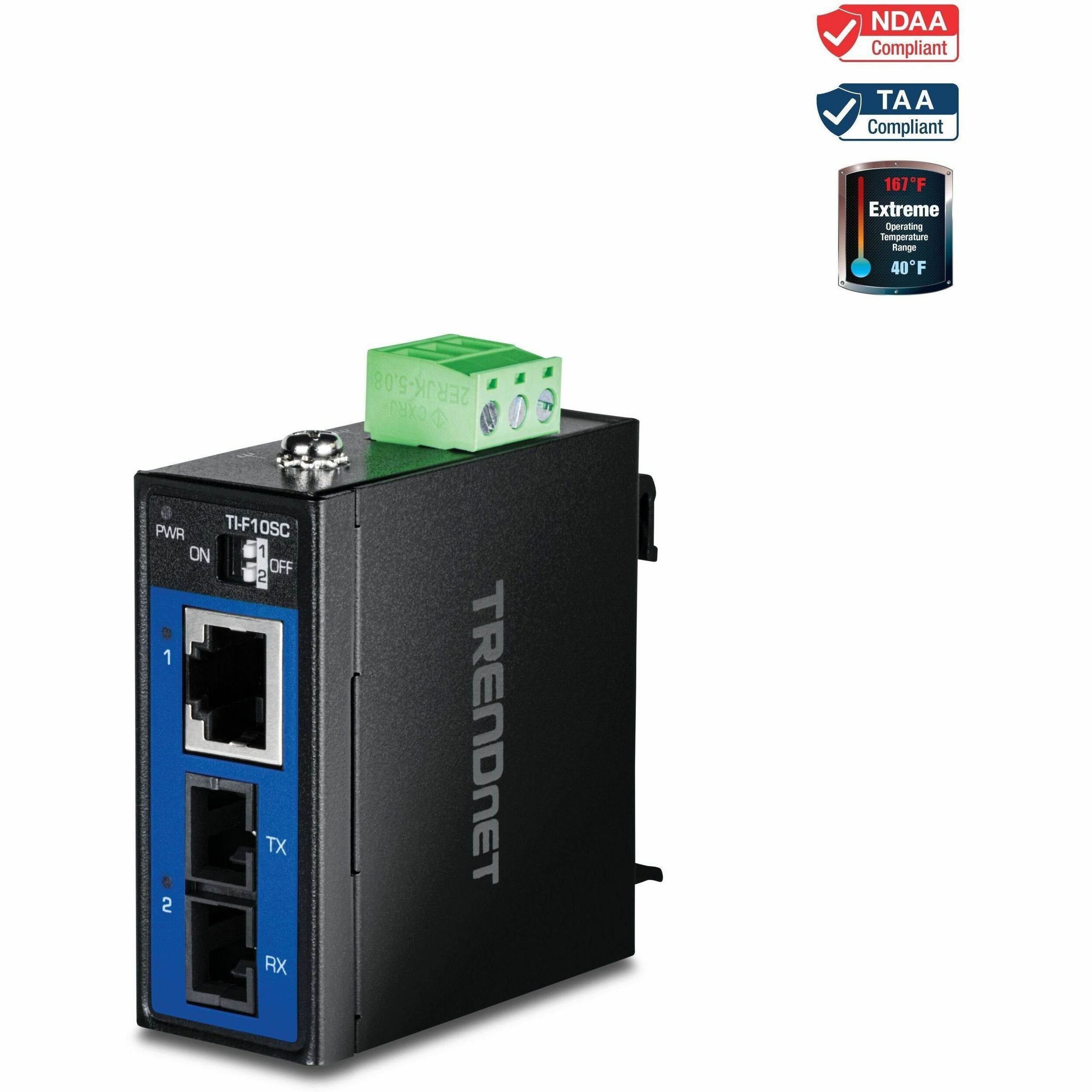

TRENDnet's Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.24 mi.), model TI-F10SC, is a reliable IP50 rated multi mode SC-type media converter with hardened components rated for extreme industrial environments and spans distances up to 2km (1.24 mi.). The front panel DIP switches control Link Fault Pass Through (LFPT), and setting the device to switch/converter mode.

  • DEVICE INTERFACE: 1 x 100Mbps Ethernet port (10/100Mbps); 1 x 100Mbps Multi-Mode SC-type port; 3-pin Removable Terminal Block; LED Indicators; DIP Switch
  • NDAA + TAA COMPLIANT: With NDAA and TAA compliant products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
  • RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
  • DIP SWITCHES: (1) LFPT (Link Fault Pass Through) on/off (default ON); (2) Converter and Switch mode on/off (default Converter mode)
  • POWER SUPPLY SOLD SEPARATELY: Powers supply sold separately (model: TI-M6024)
  • INDUSTRIAL HARDENED DESIGN: Rugged IP50 Rated housing with an extreme operating temperature range of -40° - 75° C
    (-40° - 167° F) allows for installations in industrial environments with intense hot or cold conditions
  • SURGE PROTECTION: 6kV Ethernet surge protection
  • DIN RAIL & WALL MOUNTS INCLUDED: IP50 rated metal enclosure with included DIN-rail and wall mount hardware
  • GROUNDING POINT: Grounding point protects equipment from external electrical surges
  • ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2); Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 2kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 2kV
    • Product TypeTransceiver/Media Converter
    Product ConditionNew
    Interfaces/Ports
    Total Number of Ports1
    Network (RJ-45)Yes
    DVINo
    USBNo
    Management PortNo
    Number of Network (RJ-45) Ports1
    Number of SC Ports1
    Media & Performance
    Media Type Supported
    • Optical Fiber
    • Twisted Pair
    Fiber Mode SupportedMulti-mode
    Fiber Optic Cable Wavelength1310 nm
    Maximum Distance Supported2 km (1.24 Mile)
    Fiber Optic Cable Core/Cladding Specification
    • 62.5/125 µm
    • 50/125 µm
    Network & Communication
    Ethernet TechnologyFast Ethernet
    Network Technology
    • 100Base-FX
    • 10/100Base-T
    Power Description
    Power SourcePower Supply
    Physical Characteristics
    Form Factor
    • Rail-mountable
    • Wall Mountable
    Height3" (76.20 mm)
    Width5" (127 mm)
    Depth10" (254 mm)
    Weight (Approximate)1.49 lb (673.58 g)
    Miscellaneous
    Package Contents
    • Hardened Industrial 100Base-FX Multi-Mode SC Fiber Converter (2 km, 1.2 mi.)
    • Quick Installation Guide
    • Removable terminal block
    • DIN-rail / wall mount kit
    Country of OriginTaiwan
    TAA CompliantYes
    NDAA CompliantYes
    ConditionNo
    UPC0710931160451
    Warranty
    Limited Warranty3 Year
