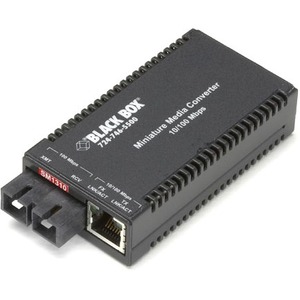

Black Box LHC015A-R3 Transceiver/Media Converter

1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 40 km (24.85 Mile) - AC Adapter - Rail-mountable, Rack-mountable

Part No. LHC015A-R3

by Black Box Corporation

$350.99

Specifications

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	LHC015A-R3
Brand Name	Black Box
Product Model	LHC015A-R3
Product Name	LHC015A-R3 Transceiver/Media Converter
Marketing Information	Autonegotiates for speed and duplex. A DIP switch enables Link Fault Pass-Through to be turned on and off for better troubleshooting. Powered by a universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray. Auto MDI/MDI-X means you never need to worry about what kind of cable to use. Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs. Black Box Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC. The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port. Choose from multimode duplex, single-mode duplex, and single-mode single-strand duplex fiber versions. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray (LHC018A-AC-R2).
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Distance Supported	40 km (24.85 Mile)

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX

Power Description

Power Source	AC Adapter

Physical Characteristics

Form Factor	Rail-mountable Rack-mountable
Height	0.80" (20.32 mm)
Width	1.80" (45.72 mm)
Depth	3.40" (86.36 mm)

Miscellaneous

Additional Information	The power supply included with this converter is not compatible with the earlier version of this product.
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Condition	No
UPC	822088123200

Warranty

Limited Warranty	6 Year
