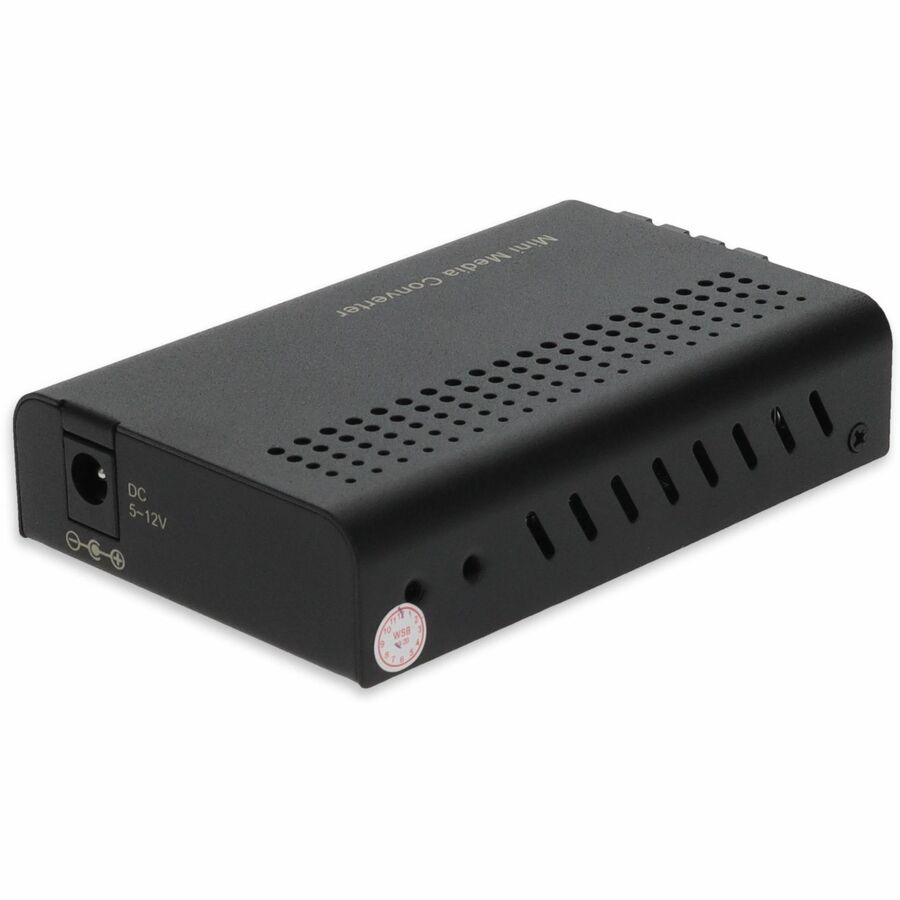

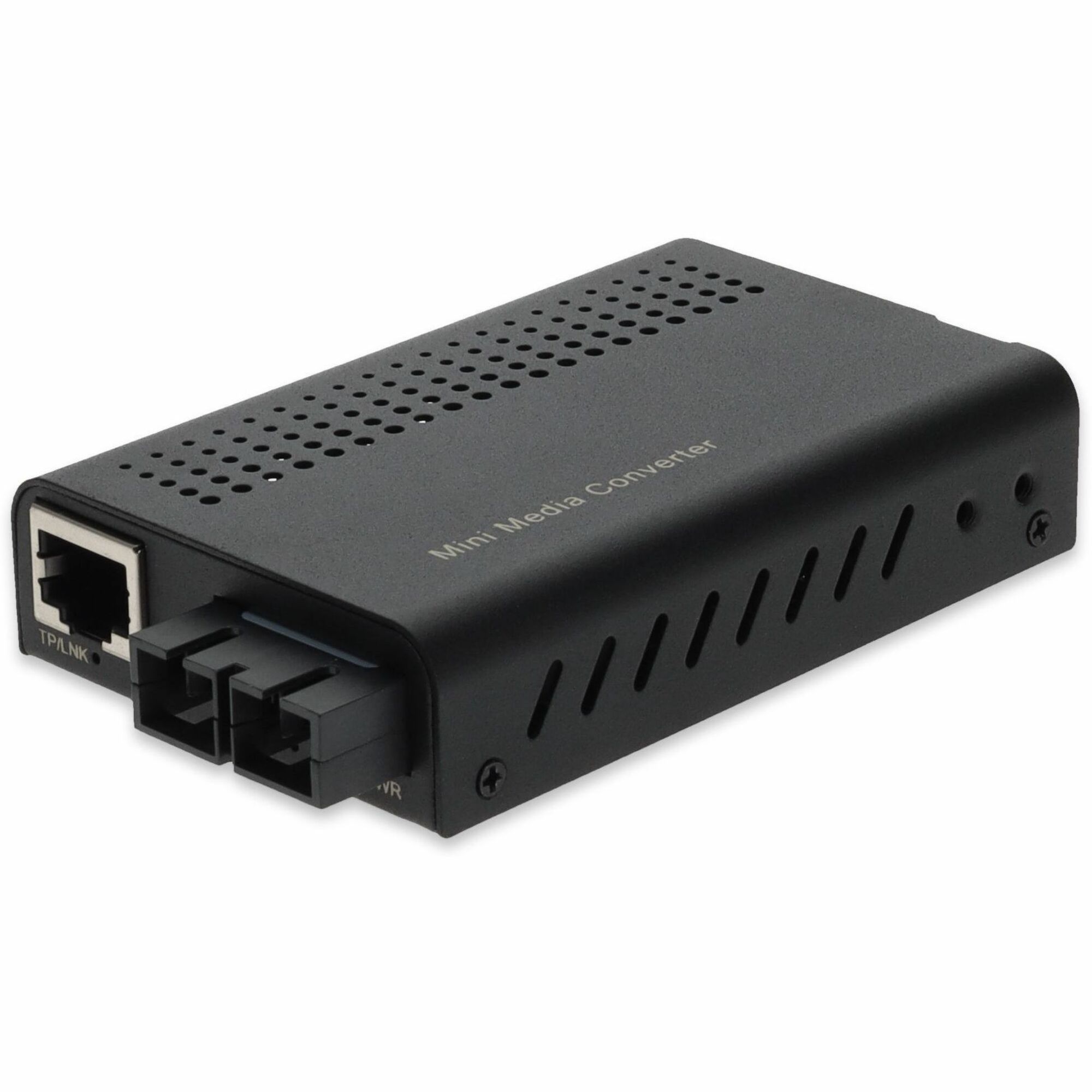

AddOn 10/100Base-TX(RJ-45) to 100Base-SX(SC) MMF 850nm 550m Mini Media Converter
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - 850 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-SX - 100 Mbit/s - 0.55 km (0.34 Mile) - AC/DC
$99.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | AddOn |
| Manufacturer Part Number | ADD-FMCMN-SX-SC |
| Brand Name | AddOn |
| Product Name | 10/100Base-TX(RJ-45) to 100Base-SX(SC) MMF 850nm 550m Mini Media Converter |
| Marketing Information | This is a mini media converter that converts a 10/100Base-TX(RJ-45) to 100Base-SX(SC) via a 850nm multi-mode fiber (MMF) SC connector, which allows distance reach up to 550m. This provides a cost effective conversion from 10/100Base-TX(RJ-45) to 100Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper and saving space (3.75" x 2.25" x 1"). Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
Interfaces/Ports
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
Media & Performance
| Media Type Supported |
|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
Network & Communication
| Ethernet Technology | Fast Ethernet |
| Network Technology |
|
Power Description
| Power Source | AC/DC |
| Input Voltage |
|
Physical Characteristics
| Height | 3.75" (95.25 mm) |
| Width | 2.25" (57.15 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 9.60 oz (272.16 g) |
Miscellaneous
| Application/Usage | Network |
| Additional Information | |
| Compatibility | |
| Environmental Compliance |
|
| Country of Origin | China |
| TAA Compliant | No |
| Condition | No |
| UPC | 821455559710 |
Warranty
| Limited Warranty | 3 Year |
