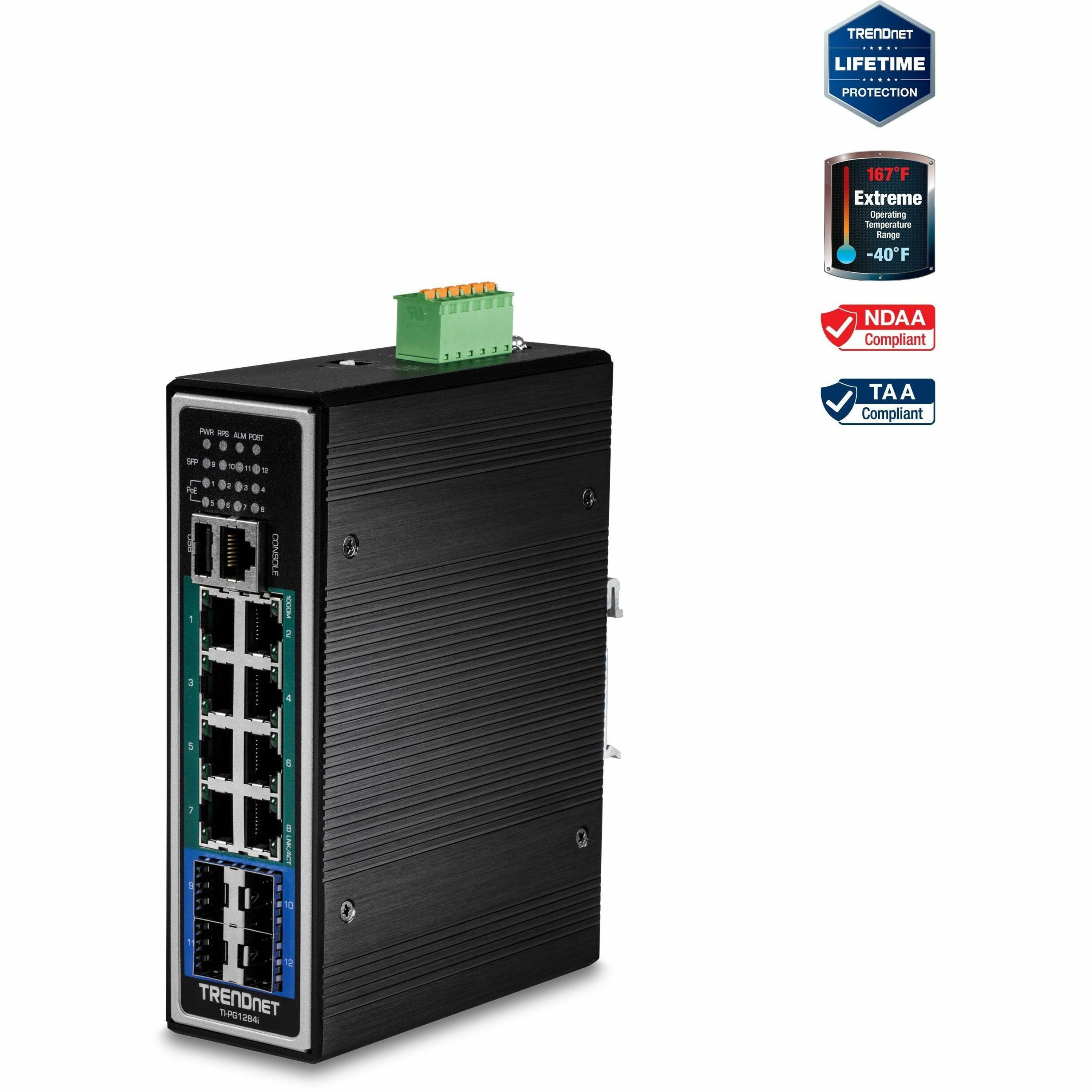

TRENDnet 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, 240W Power Budget, Hardened IP30 Network Ethernet Gigabit PoE+ Switch, Lifetime Protection, Black, TI-PG1284i

12-Port Gigabit L2 Managed PoE+ DIN-Rail Switch

Part No. TI-PG1284i

by TRENDnet

$1140.99

Specifications
Options & Accessories (1)

General Information

Manufacturer	TRENDnet
Manufacturer Part Number	TI-PG1284i
Brand Name	TRENDnet
Product Model	TI-PG1284i
Product Name	12-port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch
Marketing Information	TRENDnet's 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch, model TI-PG1284i, has eight Gigabit PoE+ ports, four Gigabit SFP slots, and a 240 Watts PoE budget. The switch is equipped with an IP30 rated metal enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range (- 40 - 75 °C (- 40 - 167°F)) for harsh environments. L2+ management include features such as PoE port control, 802.1Q / Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4 / IPv6 static routing, ACLs, and 802.1X which allow for network integration flexibility. ETHERNET PORT INTERFACE: 8 x Gigabit PoE+ (802.3at) ports, 4 x Gigabit SFP slots, and 1 x console port LIFETIME PROTECTION -We stand by the quality of our products. The TI-PG1284i 12-Port Hardened Industrial Gigabit PoE+ Layer 2+ Managed DIN-Rail Switch with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Switches , you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) FULL POE+ POWER BUDGET & CONTROL PER PORT: The managed PoE+ switch supplies up to 30 Watts of PoE / PoE+ power per port (ports 1-4 802.3at / 802.3af) with a 240 Watt PoE power budget and allows for a 24 Gbps switching capacity. PoE control features for the DIN-Rail switch include enabling / disabling PoE and class, power priority, PD alive check, scheduling, and power delay per port using CLI or web management. DIN-RAIL & WALL MOUNT KIT: This 12-Port gigabit PoE+ managed switch comes with an integrated DIN-Rail mount and mounting hardware. EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments. TRAFFIC MANAGEMENT: The Layer 2+ Managed switch features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, and Xpress Ring + ERPS protection for flexible network integration. FAULT TOLERANCE: The DIN-Rail Switch features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure. REDUNDANT POWER: The 12 Port Switch has dual redundant power inputs with overload current protection (power supply sold separately: model: (TI-S24048)
Product Condition	New
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	12
Uplink Port	No
Modular	Yes
Stack Port	No

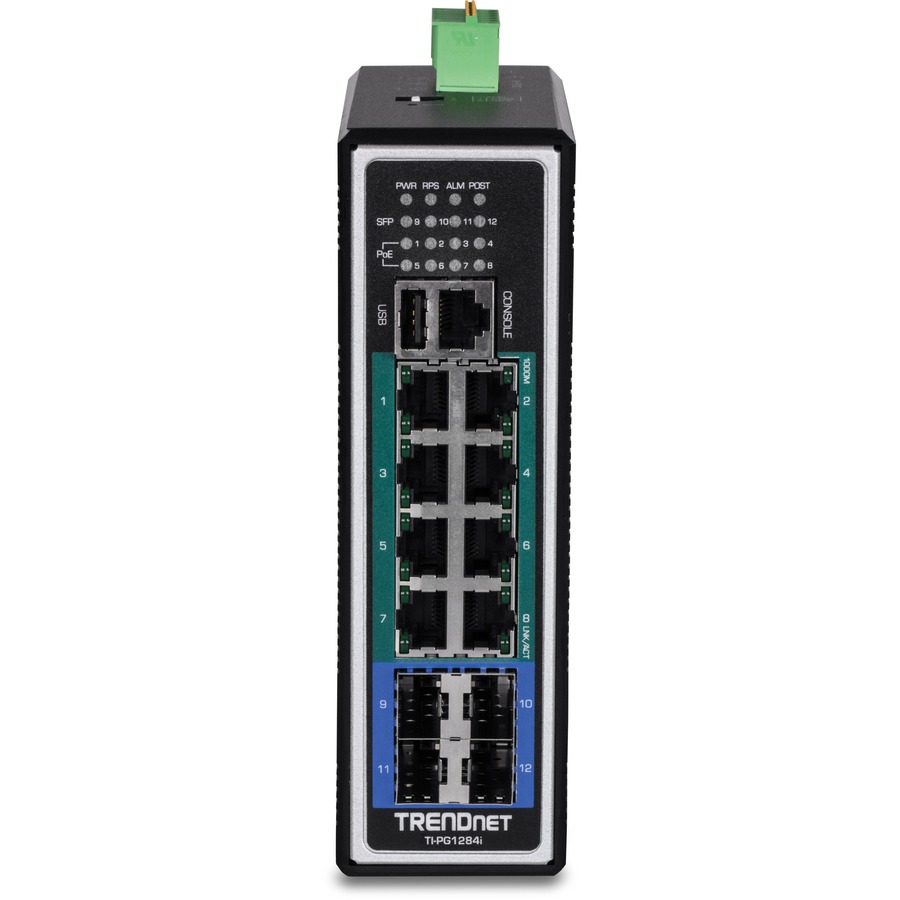

Port/Expansion Slot Details	8 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-X

I/O Expansions

Total Number of Expansion Slots	4

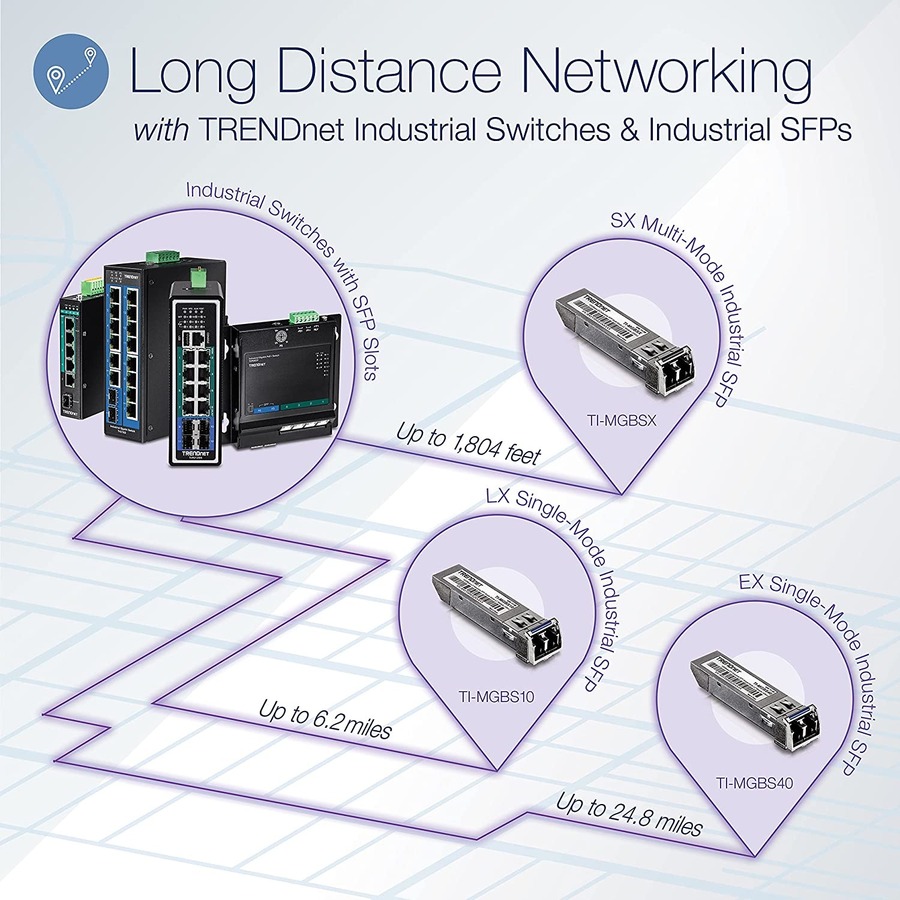

Expansion Slot Type	SFP
Shared SFP Slot	No
Number of SFP Slots	4

Network & Communication

Layer Supported	3

Management & Protocols

Manageable	Yes

Power Description

Redundant Power Supply Supported	Yes

Physical Characteristics

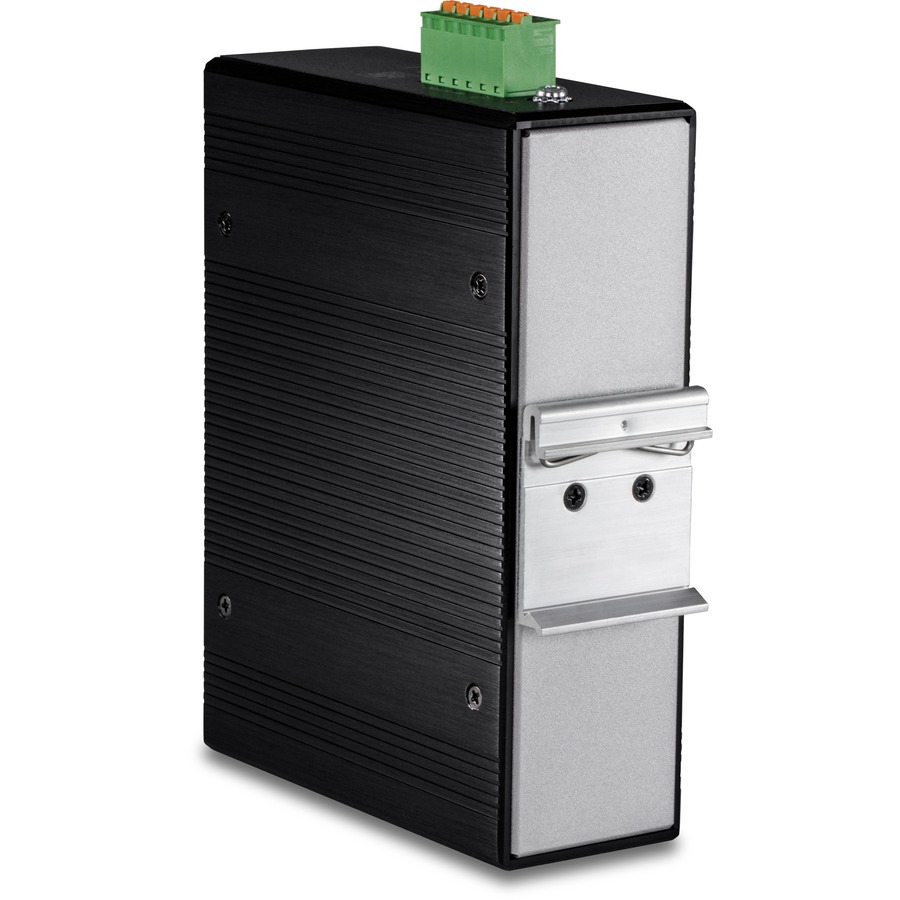

Form Factor	Rail-mountable
Height	7" (177.80 mm)
Width	9" (228.60 mm)
Depth	11" (279.40 mm)
Weight (Approximate)	7.43 lb (3367.92 g)

Miscellaneous

Country of Origin	Taiwan
TAA Compliant	Yes
NDAA Compliant	Yes
Condition	No
UPC	0710931160598

Warranty

Limited Warranty	Lifetime
