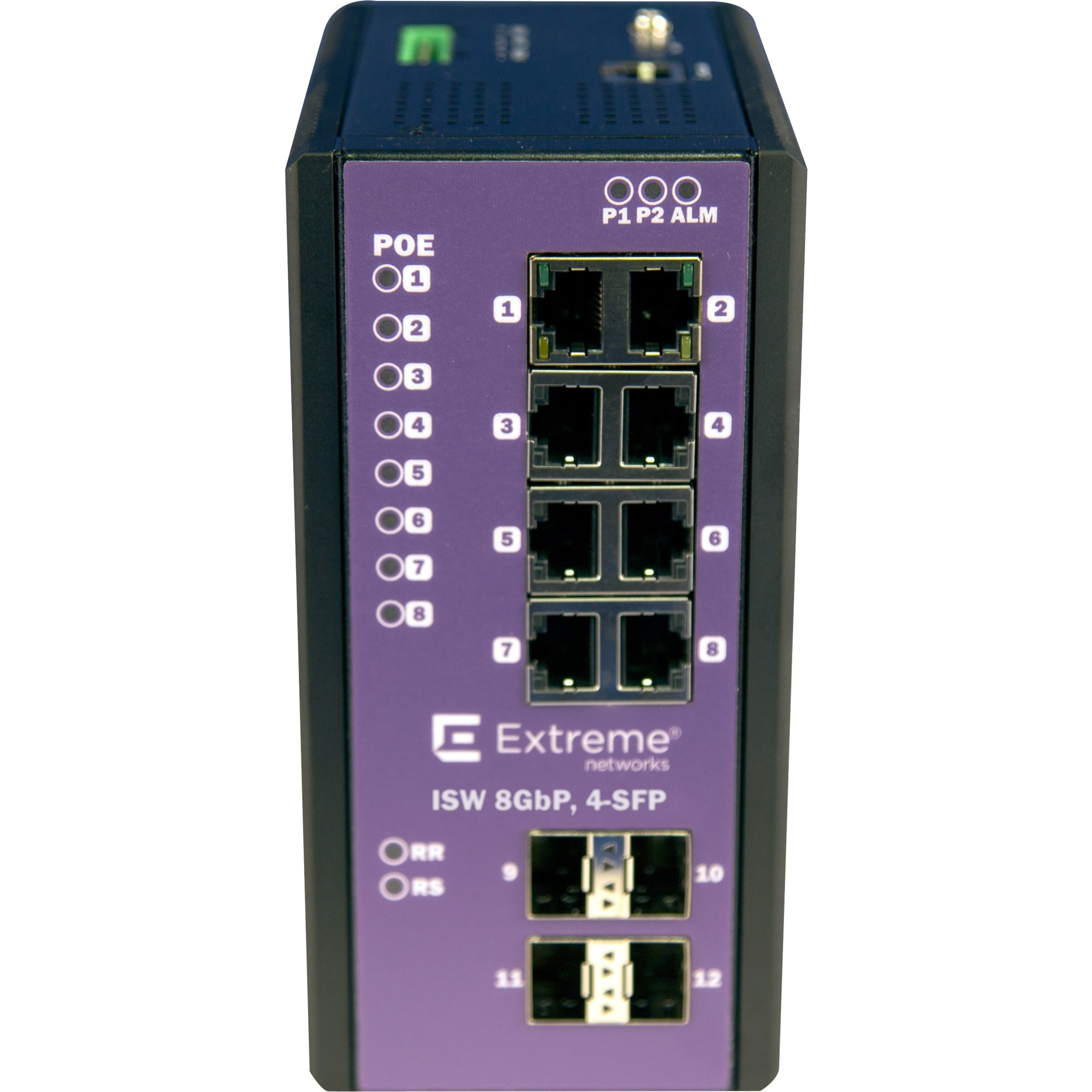

Extreme Networks ISW 8GBP,4-SFP Ethernet Switch

Part No. 16804

by Extreme Networks, Inc

Extreme Networks ISW 8GBP,4-SFP Ethernet Switch

8 Ports - Manageable - 10/100/1000Base-T - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable

Part No. 16804

by Extreme Networks, Inc

$1811.99
General Information
ManufacturerExtreme Networks, Inc
Manufacturer Part Number16804
Brand NameExtreme Networks
Product ModelISW 8GBP,4-SFP
Product NameISW 8GBP,4-SFP Ethernet Switch
Marketing Information

Industrial Networking

Designed for industrial use, Extreme Industrial Switches provide continuous uptime, manageability and operational efficiency. With full PoE+ power per PoE port, each switch offers the performance needed for todays power-hungry surveillance devices and WLAN access points.

Extreme Industrial Switches are an excellent choice for industrial environments, including intelligent transportation systems, utilities, and smart cities. Full redundant ring technology creates fault-tolerant networks with high availability with industry standard technologies.

Product TypeEthernet Switch
Interfaces/Ports
Total Number of Network Ports8
Uplink PortYes
ModularYes
Stack PortNo
Port/Expansion Slot Details
  • 8 x Gigabit Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
  • Twisted Pair
  • Optical Fiber
Ethernet TechnologyGigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
I/O Expansions
Total Number of Expansion Slots4
Expansion Slot TypeSFP
Shared SFP SlotNo
Number of SFP+ Slots4
Network & Communication
Layer Supported2
Management & Protocols
ManageableYes
Power Description
Power SourcePower Supply
Redundant Power Supply SupportedYes
Physical Characteristics
Form Factor
  • Wall Mountable
  • DIN Rail Mountable
Height6.06" (154 mm)
Width3.03" (77 mm)
Depth5.04" (128 mm)
Weight (Approximate)3.11 lb (1410 g)
Miscellaneous
Environmentally FriendlyYes
ConditionNo
UPC644728168040
modules (2)

Part No. 10051H

Extreme Networks 1000BASE-SX SFP, Hi - 1 x LC 1000Base-SX Network

1000BASE-SX SFP MMF 220 550 meters LC connector Industrial Temp

Part No. 10070H

Extreme Networks 10/100/1000BASE-T SFP, Hi - 1 x RJ-45 10/100/1000Base-T LAN

10/100/1000BASE-T SFP module CAT5 cable 100m link RJ45-connector for Giga Bit Ethernet SFP Port Industrial Temp

power supplies (2)

Part No. 16920

Extreme Networks SDR-480-48 Power Supply - DIN Rail - 120 V AC, 230 V AC Input - 55 V DC Output

IS ACDC Power Supply 480W Output DIN Rail 25 70C
