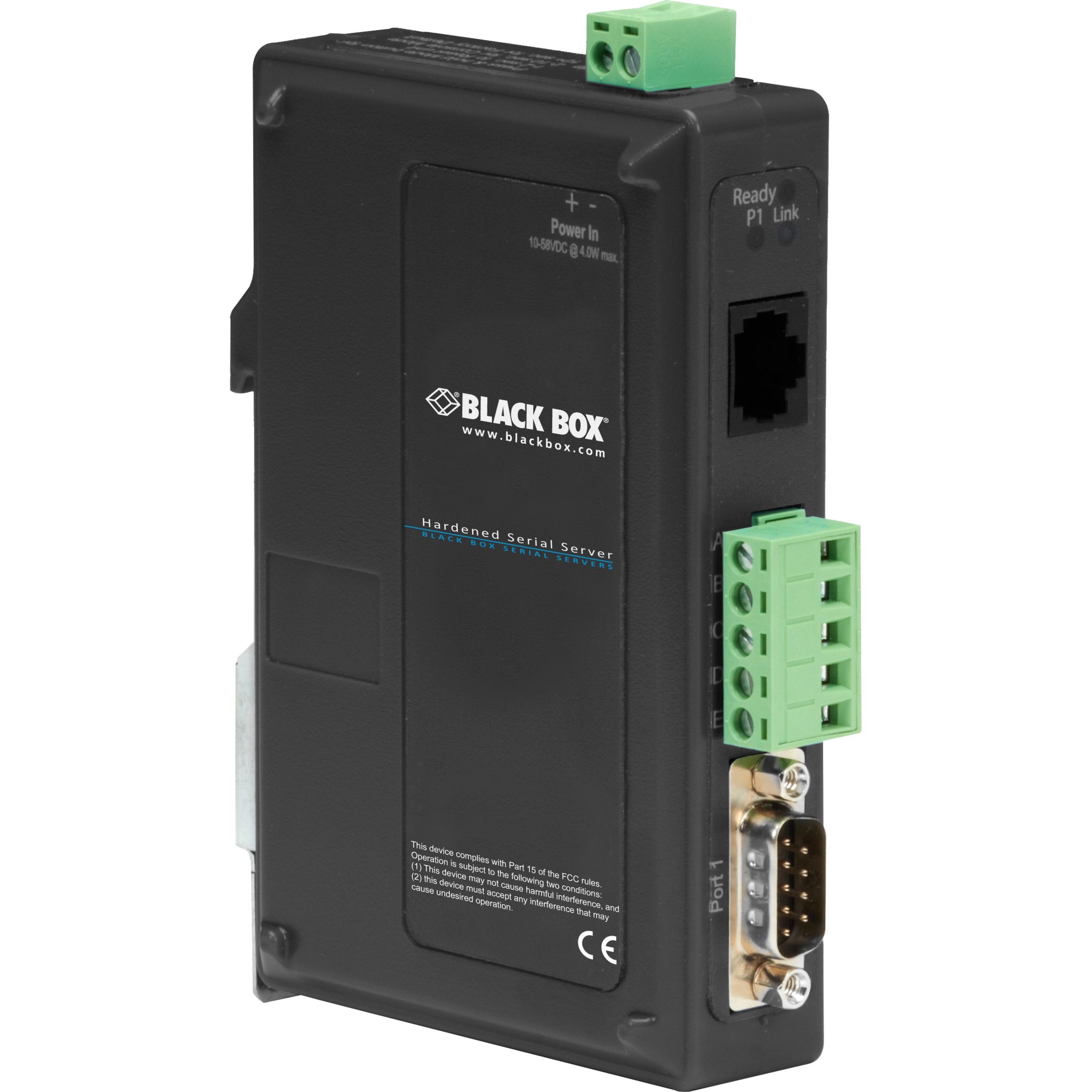

Black Box 1-Port Hardened Serial Server
Twisted Pair - 1 x Network (RJ-45) - 1 x Serial Port - 10/100Base-TX - Fast Ethernet - Rail-mountable
$784.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LES421A |
| Brand Name | Black Box |
| Product Model | LES421A |
| Product Name | 1-Port Hardened Serial Server |
| Marketing Information | Communicate easily with an RS-232, RS-422, or RS-485 serial device via your LAN or WAN with the rugged and compact 1-Port Hardened Serial Server from Black Box. It's just what you need to improve productivity and cut down on the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location. Eliminate visits to a distant site just to make a minor change to a configuration. You can do all this from the comfort of your office using an Ethernet LAN or WAN connection, or even from home via a standard Web connection. A simple-to-install, user-friendly Web configuration software application enables programming through a browser connection. No time-consuming setup is required. Set it up to operate in one of three modes: The Hardened Serial Server has a standard DB9 serial port and a removable terminal block for the RS-232, RS-422, or RS-485 device connection, and an autodetecting 10BASE-T/100BASE-TX port for a CAT5 connection to your Ethernet network. Plus, for reliable operation, the serial server offers a heartbeat connection, which detects any TCP communication failures and sends out signals every five seconds until the system is reconnected. |
| Product Type | Device Server |
Media & Performance
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 5 |
Wireless Specifications
| Wireless LAN | No |
Network & Communication
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Phone Line (RJ-11) | No |
| Network (RJ-11) | No |
| USB | No |
| Serial Port | Yes |
| Parallel Port | No |
| Centronics Port | No |
| Management Port | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 1 |
Physical Characteristics
| Form Factor | Rail-mountable |
| Height | 1.20" (30.48 mm) |
| Width | 3.20" (81.28 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 136.1 g |
Miscellaneous
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Condition | No |
| UPC | 822088107132 |
Warranty
| Limited Warranty | 5 Year |
