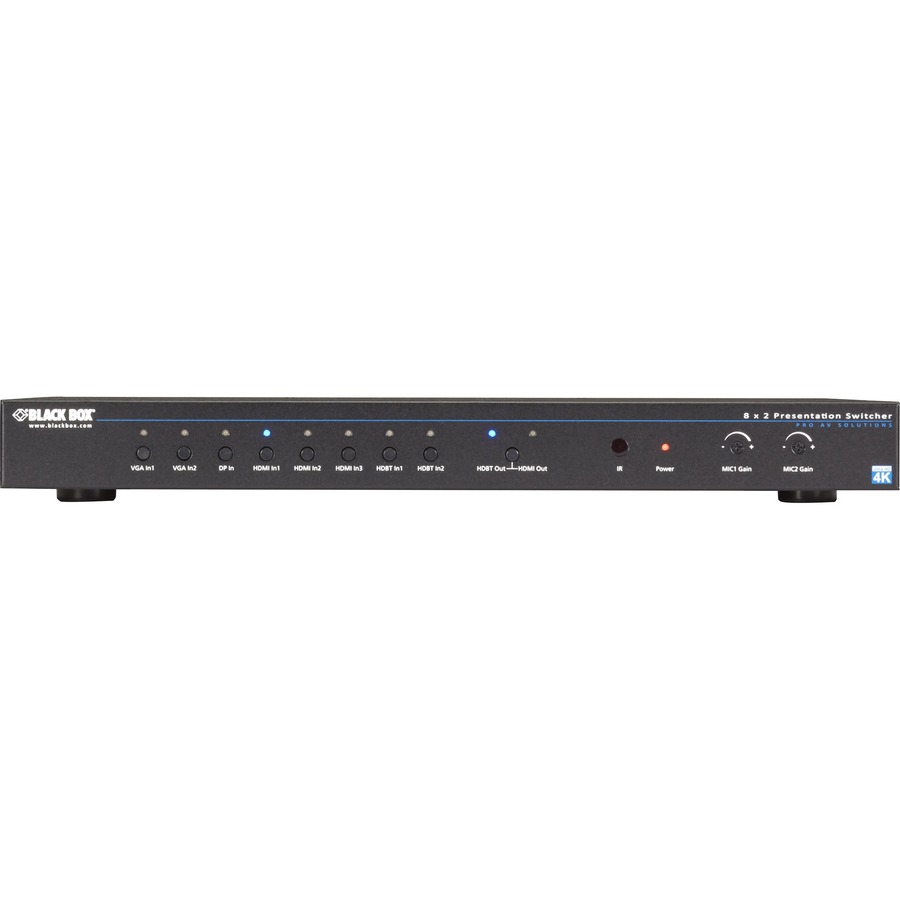

Black Box Presentation Switcher - 4K, HDMI, DisplayPort, VGA, CATx, 8x2
3840 × 2160 - 4K - Twisted Pair - 8 x 2 - Display - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort
$2863.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | AVSC-0802H |
| Brand Name | Black Box |
| Product Name | Presentation Switcher - 4K, HDMI, DisplayPort, VGA, CATx, 8x2 |
| Marketing Information | Use this reliable HDMI/DisplayPort switch to extend your HDMI or DisplayPort signal, or to switch between two signals. |
| Product Type | Video Switchbox |
Technical Information
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 8 |
| Device Supported | Display |
| Number of Displays Supported | 2 |
Video
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 × 2160 |

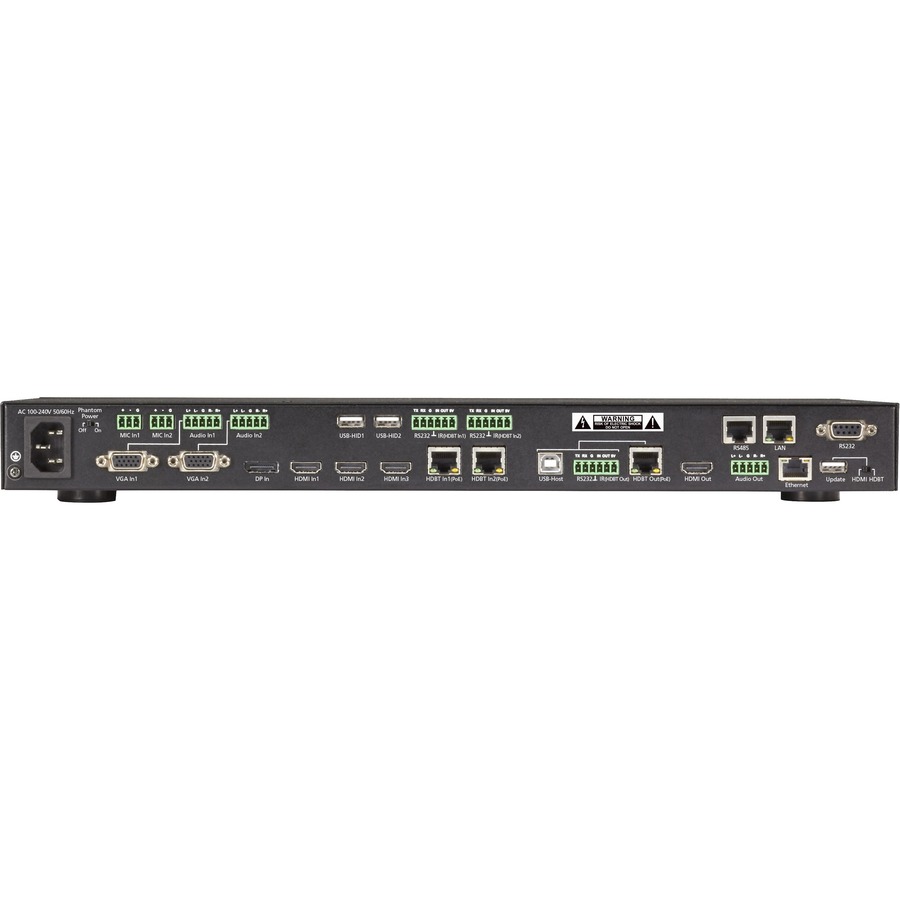

Interfaces/Ports
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| DisplayPort | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 5 |
| Number of USB Ports | 3 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Number of VGA Inputs | 2 |
| Number of DisplayPort Inputs | 1 |
Media & Performance
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 330 ft (100584 mm) |
Power Description
| Frequency |
|
Physical Characteristics
| Form Factor | Rack-mountable |
| Height | 12.99" (330 mm) |
| Width | 17.32" (440 mm) |
| Depth | 1.69" (43 mm) |
| Weight (Approximate) | 4.70 kg |
Miscellaneous
| Environmentally Friendly | Yes |
| Country of Origin | China |
| Condition | No |
| UPC | 822088122814 |
Warranty
| Limited Warranty | 3 Year |
