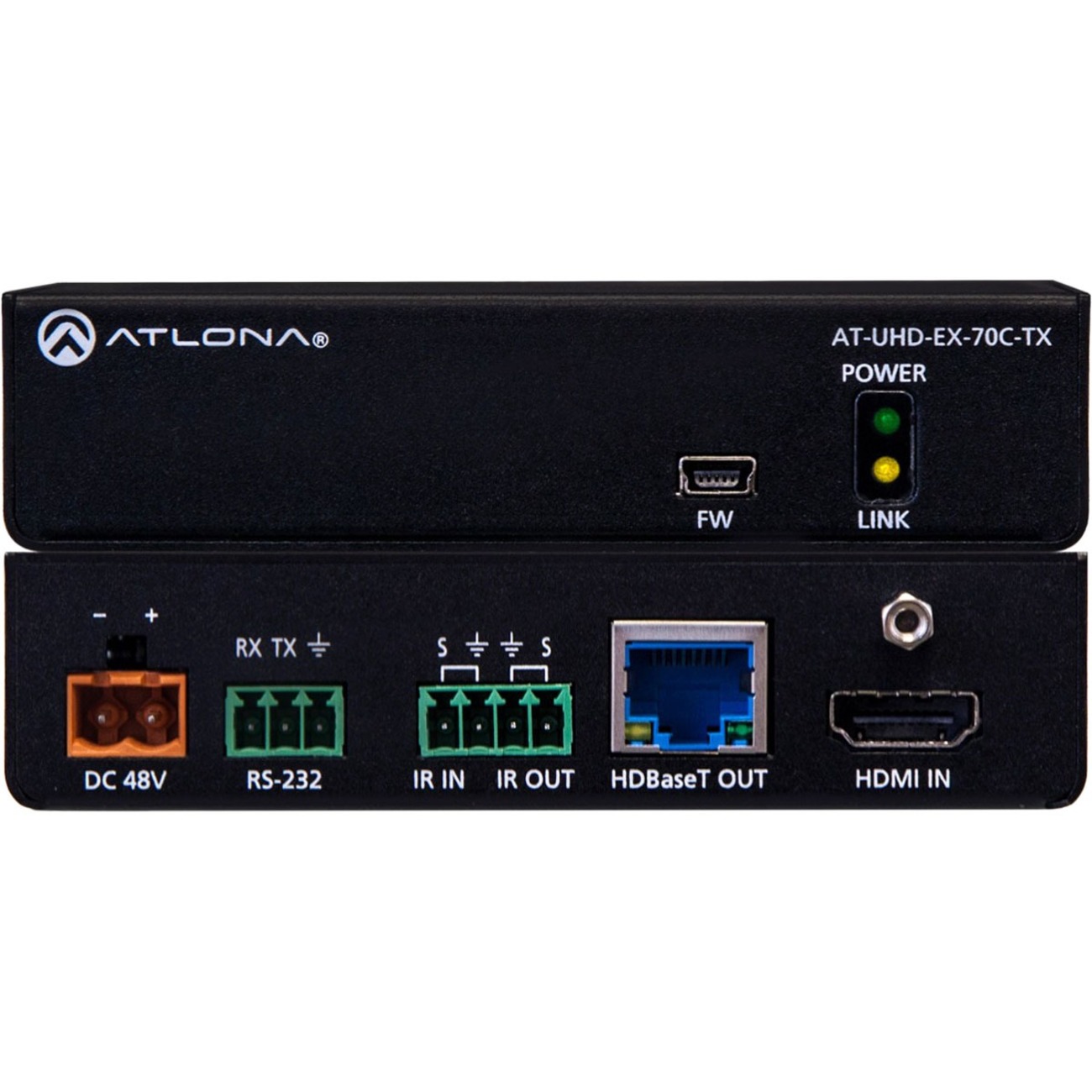

| 4K HDMI Over HDBaseT Transmitter The Atlona AT-UHD-EX-70C-TX is an HDBaseT transmitter for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control. It transmits video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-70C-TX is HDCP 2.2 compliant and supports EDID communication. This HDBaseT transmitter is externally powered by the included power supply, making it ideal for extending AV and control directly to a projector with an HDBaseT input. The AT-UHD-EX-70C-TX can also be used with Atlona switchers with HDBaseT inputs, including the AT-UHD-CLSO-612ED, AT-UHD-CLSO-824, and AT-UHD-SW-5000ED. The AT-UHD-EX-70C-TX provides a value-oriented integration solution for simple point-to-point signal extension to a display, or expanding the scope of an AV system design with remote input connectivity. It features a quarter rack width metal enclosure and includes surface mounting brackets for easy under-table, furniture, or on-wall installation. Applications The AT-UHD-EX-70C-TX is ideal for use in: - Extending AV and control to HDBaseT-equipped projectors and flat-panel displays
- Integrating a remote source or HDMI connection point into an Atlona switcher with an HDBaseT input
- Installations in which UHD-EX Series transmitters are to be used with third-party HDBaseT devices
|
