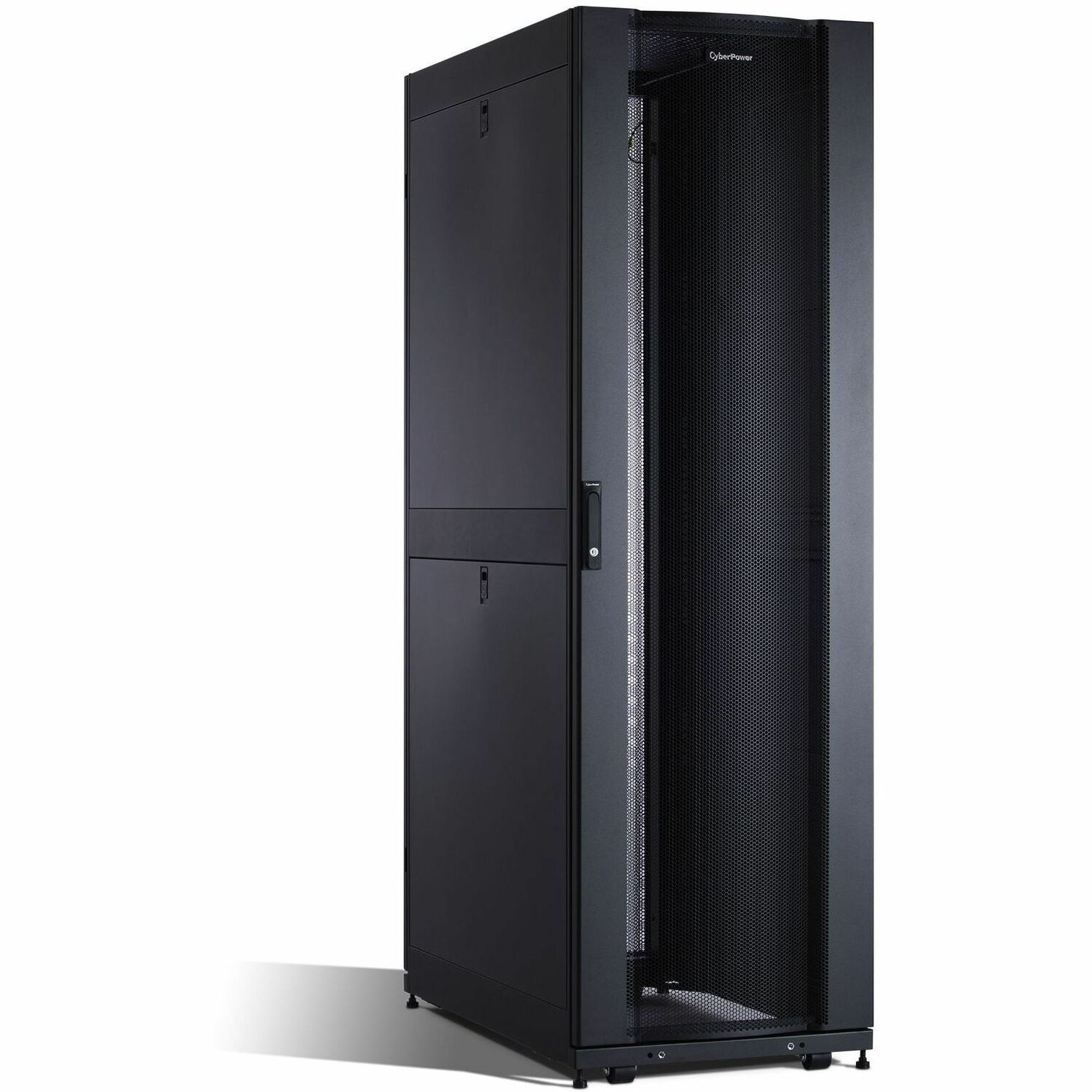

CyberPower CR42U11001 Rack Enclosures

Part No. CR42U11001

by CyberPower Systems, Inc

CyberPower CR42U11001 Rack Enclosures

42U 19" Rack Enclosure, 600mm wide, 1070mm deep, hex perforated metal door, 2 side panels per side, locking doors/side panels, black, with casters, 3000lbs (1365kg) loading capacity, 5 year warranty

Part No. CR42U11001

by CyberPower Systems, Inc

$8232.99
General Information
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberCR42U11001
Brand NameCyberPower
Product SeriesRack Enclosures
Product ModelCR42U11001
Product NameCR42U11001 Rack Enclosures
Marketing InformationThe CR42U11001 rack enclosure includes convenient top panel cable access openings, perforated doors for efficient airflow, adjustable rack angles, toolless vertical PDU mounting, and more. The CR42U11001 server cabinet ships fully assembled for quick deployment and can be customized with compatible accessories to meet specific requirements. It is covered by a 5-year limited warranty.
Product TypeRack Cabinet
Technical Information
Application/Usage
  • Server
  • LAN Switch
  • Patch Panel
Physical Characteristics
Color FamilyBlack
Product ColorBlack Powder Coat
Product MaterialMetal
Dynamic/Rolling Weight Capacity2250 lb (1020582.83 g)
Static/Stationary Weight Capacity3000 lb (1360777.11 g)
Height78.40" (1991.36 mm)
Width23.60" (599.44 mm)
Depth42.10" (1069.34 mm)
Weight (Approximate)282 lb (127913.05 g)
Rack Height42U
Rack Width19" (482.60 mm)
Rack Depth35.60" (904.24 mm)
Miscellaneous
Package Contents
  • EIA-310 Standard 19" Rack
  • Mounting Hardware
  • User Manual
Additional Information
  • Physical Dimensions - (WxHxD) (cm) : 59.94 x 199.14 x 106.93 (cm)
  • Physical Dimensions - (WxHxD) (in) : 23.6 x 78.4 x 42.1 (in)
  • Physical Dimensions - (WxHxD) (mm) : 599 x 1991 x 1069 (mm)
  • Weight (kg) : 127.91
  • Weight (lb) : 282
  • Shipping Dimensions - (WxHxD) (cm) : 64.14 x 214.63 x 113.03 (cm)
  • Shipping - Dimensions (WxHxD, in) : 25.25 x 84.5 x 44.5 (in)
  • Shipping - Dimensions (WxHxD, mm) : 641.35 x 2146.3 x 1130.3 (mm)
  • Shipping - Weight (kg) : 20.18
  • Shipping - Weight (lb) : 44.5
  • USB Charge Port : No
  • Color : Black
  • Door Type : Hex Perforated Metal Door
  • Factory Default Mounting Depth : 28.3 ft (718.8 mm)
  • Material of Construction : Metal
  • Max. Mounting Depth (in) : 35.6
  • Max. Mounting Depth (mm) : 905
  • Min. Mounting Depth (in) : 5.6
  • Min. Mounting Depth (mm) : 143
  • Rack Angle Mounting Hole Type : Square Mounting Holes
  • Rack Height : 42U
  • Weight Capacity - dynamic load (kg) : 1020
  • Weight Capacity - dynamic load (lbs) : 2250
  • Weight Capacity - stationary load (kg) : 1365
  • Weight Capacity - stationary load (lbs) : 3000
  • In-Row Rack Connection Brackets : Yes
  • Leveling Feet : Pre-Installed
  • Lockable Doors and Side Panels : Yes, keyed alike
  • Numbered Rack Units : Yes
  • PE Grounding Point : Yes
  • Removable Doors and Side Panels : Yes
  • Removable Roof : Yes
  • Reversible Front Door : Yes
  • Rolling Casters : Pre-Installed
  • Stabilization Brackets : Yes
  • Ventilation : Perforated Doors
  • Protection Class : IP20
  • Environmental : RoHS Compliant
  • Safety : DIN41491|DIN41494|EIA/ECA-310-E|IEC 294-2|CE
  • Product Warranty : 5 Year Limited Warranty
  • Assembly RequiredNo
    Country of OriginChina
    Environmentally FriendlyYes
    Environmental ComplianceRestriction of Hazardous Substances (RoHS)
    ConditionNo
    UPC0649532616329
    Warranty
    Limited Warranty5 Year
