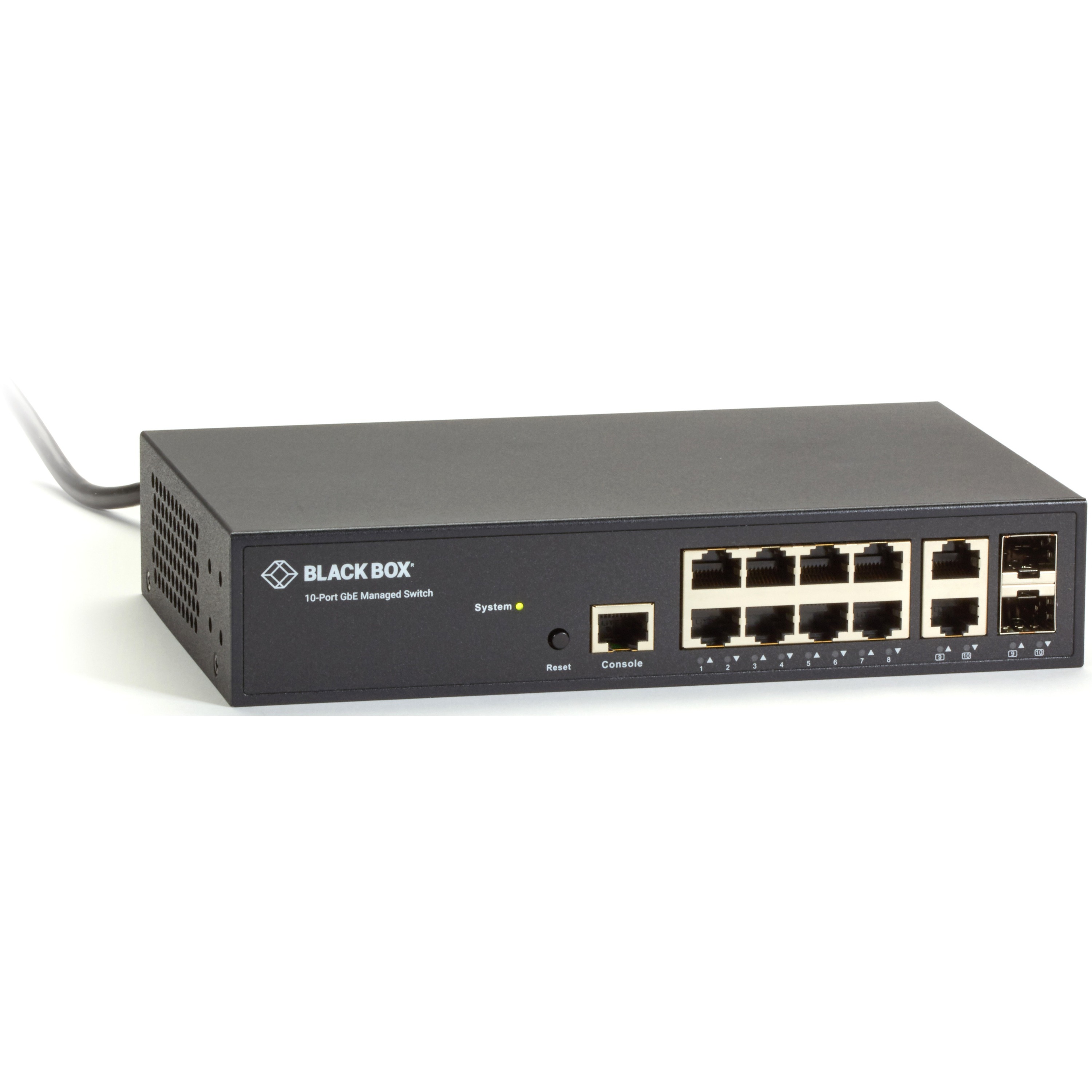

Black Box Gigabit Managed Ethernet Switch - 10-Ports

8 Ports - Manageable - Gigabit Ethernet - 1000Base-X - 3 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - Rack-mountable - 1 Year Limited Warranty

Part No. LGB1110A

by Black Box Corporation

$316.99

Specifications
Options & Accessories (5)

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	LGB1110A
Brand Name	Black Box
Product Model	LGB1110A
Product Name	Gigabit Managed Ethernet Switch - 10-Ports
Marketing Information	This capable Layer 2+ switch offers 8 autosensing 10-/100-/1000-Mbps RJ-45 Ethernet ports, plus 2 dual-media ports, each of which consists of one 100-/1000-Mbps RJ-45 port plus a 100-/1000-Mbps SFP port. The dual-media ports can be used either as a normal UTP Ethernet port for copper connections or adapted to fiber through the use of an SFP. You can also bundle multiple ports to create a single high-bandwidth port using 802.3ad LACP aggregation. The switch supports up to 2 ports per group and up to 5 groups total. Combine Gigabit ports, for instance, to create a multilink trunk for load sharing. It's especially beneficial in switch-to-switch cascading applications where you require higher full-duplex speeds. The switch supports 1024 multicast groups. Broadcast/multicast/ unicast storm control enables you to restrict excess traffic on your network. Plus it has IGMP (v1/v2/v3) for limiting bandwidth-heavy multicast traffic. Very manageable The switch is fully managed, supporting SNMP version 1, 2c, and 3. The embedded RMON software agents support RMON groups 1 (history), 2 (statistics), 3 (alarms), and 9 (events). It also includes a DHCP server to assign IP to DHCP clients. The integral Web server enables Web-based management via Web browser. This GUI interface enables switch configuration, system dashboard, maintenance, and monitoring. In addition, a Device Management System provides topology and map view graphical monitoring, traffic monitoring, and troubleshooting. The wide range of management and support features also includes dual image, port mirroring, LLDP, sFlow®, UPnP®, IPv6, SSH, RADIUS, DHCP Client/DHCPv6 Client, SNTP, cable diagnostics, ping, syslog, and Telnet client with SSH security. Support for VLAN and QoS The switch supports up to 4000 simultaneous VLANs for isolating guest traffic from your critical corporate network traffic. You can segment traffic with port-based, 802.1Q tag-based, or MAC-based VLANs. Plus, you can also program higher-layer classification and prioritization for reliable Quality of Service (QoS).802.1p Layer 2 QoS enables prioritization of time-sensitive applications, such as VoIP and video. Highly Secure You get enterprise-class security features, too. In addition to the switch's VLAN support, it boasts 802.1X port-based network access control for authenticating devices connecting to your network. In addition, the switch supports SNMPv3 cryptographic security, SSH, and SSL for remote management via a connection that encrypts the packet content at each session. Plus, you can set up a guest VLAN that enables visitors to access the Internet without also giving them access to the corporate network. By using its extensive ACLs (up to 256 entries total), you can keep guests or unauthorized users from accessing sensitive portions of your network. Green The Gigabit Ethernet Managed Switch features IEEE 802.3az Energy-Efficient Ethernet, which scales down power consumption during periods of low data activity. This feature adds up to energy savings of up to 50%.
Packaged Quantity	1
Product Type	Ethernet Switch

Interfaces/Ports

Total Number of Network Ports	8
Uplink Port	Yes
Modular	Yes
Stack Port	No
Port/Expansion Slot Details	8 x Gigabit Ethernet Network 2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-X 10/100/1000Base-T

I/O Expansions

Total Number of Expansion Slots	2.0
Expansion Slot Type	SFP
Shared SFP Slot	Yes
Number of SFP Slots	2

Network & Communication

Layer Supported	3

Management & Protocols

Manageable	Yes

Power Description

Power Source	Power Supply
Redundant Power Supply Supported	No

Physical Characteristics

Form Factor	Rack-mountable
Height	1.50" (38.10 mm)
Width	8.70" (220.98 mm)
Depth	5.30" (134.62 mm)
Weight (Approximate)	3.10 lb (1406.14 g)

Miscellaneous

Package Contents	(1) AC power cord (1) 19" rackmount kit (1) DB9 to RJ-45 console cable (1) URL direction sheet for quick start guide, user manual, and CLI
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
UPC	822088124368
