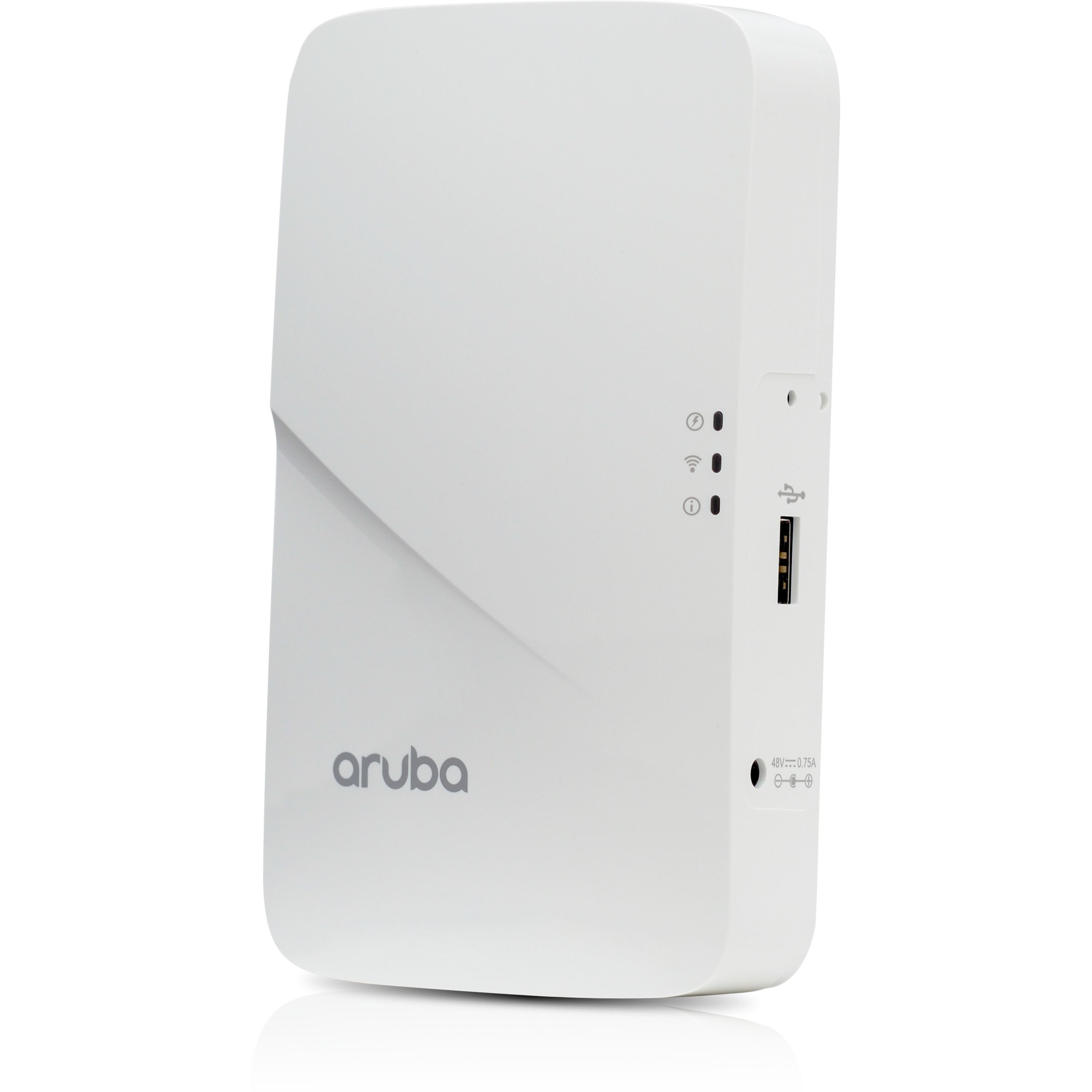

HPE AP-303H IEEE 802.11ac 1.24 Gbit/s Wireless Access Point

Part No. JY679A

by Hewlett Packard Enterprise

HPE AP-303H IEEE 802.11ac 1.24 Gbit/s Wireless Access Point

5 GHz, 2.40 GHz - 2 x Internal Antenna(s) - MIMO Technology - 6 x Network (RJ-45) - Gigabit Ethernet - PoE Ports - Wall Mountable, Desktop

Part No. JY679A

by Hewlett Packard Enterprise

$864.99
General Information
ManufacturerHewlett Packard Enterprise
Manufacturer Part NumberJY679A
Brand NameHPE
Product ModelAP-303H
Product Name303H Hospitality Access Point
Marketing InformationThe multi-functional Wave 2 303H access point delivers best-in class Wi-Fi connectivity for hospitality and branch offices, enabling an always-on user experience with low Total Cost of Ownership (TCO).

With a maximum concurrent data rate of 867Mbps in the 5GHz band and 400Mbps in the 2.4GHz band, the 303H AP delivers high-performance Gigabit Wi-Fi for hospitality and branch environments at an attractive price point. It supports multi-user MIMO MU-MIMO) and 2 spatial streams (2SS) to provide simultaneous data transmission for up to 2 devices, maximizing data throughput and improving network efficiency.

The 303H AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. It is ideal for schools (dormitories, classrooms), hotels, medical clinics, branch offices and remote workstations which often require flexible and easy deployment options.

The 802.11ac Wave 2 303H AP combines wireless and wired access in a single compact device. Three local Gigabit Ethernet ports are available to securely attach wired devices to your network. One of these ports is also capable of supplying PoE power to the attached device.

Like all other Aruba Wave 2 APs, the 303H AP includes the enhanced ClientMatch™ technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point to achieve the best WLAN performance in a mixed device environment during the technology transition period.

The integrated Bluetooth Aruba Beacon in the 303H AP simplifies the remote management of a large scale network of battery-powered BLE Aruba Beacons while also providing advanced location and indoor wayfinding, and proximitybased push notification capabilities.
Product TypeWireless Access Point
Technical Information
Wireless LAN StandardIEEE 802.11ac
Frequency Band
  • 5 GHz
  • 2.40 GHz
Total Number of Antennas2
Number of Internal Antennas2
Wireless Transmission Speed1.24 Gbit/s
MIMO TechnologyYes
Beamforming TechnologyYes
Interfaces/Ports
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports6
PoE (RJ-45) PortYes
PoE PD PortYes
VGANo
HDMINo
USBYes
PowerlineNo
Management PortYes
Physical Characteristics
Form Factor
  • Wall Mountable
  • Desktop
Height5.91" (150 mm)
Width3.39" (86 mm)
Depth1.57" (40 mm)
Weight (Approximate)10.93 oz (310 g)
Miscellaneous
TAA CompliantYes
ConditionNo
UPC0190017107127
