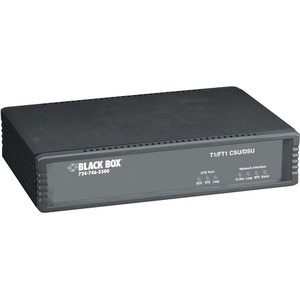

Black Box Managed T1/FT1 CSU/DSU - V.35

AMI/B8ZS Encoding - T-carrier - Serial V.35 Interface

Part No. MT1510A-35

$1591.99

Manufacturer Brochure

Specifications
Options & Accessories (1)

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	MT1510A-35
Brand Name	Black Box
Product Name	Managed T1/FT1 CSU/DSU - V.35
Marketing Information	Include a DB9 SNMP port. DSX (drop and insert) model (MT1511A) enables you to connect to a PBX and share voice/data bandwidth. All models include a DB9 (DCE) console port and have a V.35 female connector. All include (1) 6-foot (1.8-m) RJ-48C cable. Our Managed T1/FT1 CSU/DSUs (MT1510A-35, MT1511A, MT1510A-530) feature a single V.35 data port as well as an RS-232 console port. Plus, they come with a separate SNMP management port. Complete SNMP management with real-time alarm messages can be delivered to SNMP managers. The Managed T1/FT1 CSU/DSU with DSX (MT1511A) also has a DSX port that enables you to configure your T1 line to share bandwidth capacity for voice and data. All three managed CSU/DSUs feature critical information displayed with date- and time-stamped alarm information. Their menu structure enables easy setup and diagnostic testing from any VT100™ compatible device.
Product Type	CSU/DSU

Technical Information

Encoding Method	AMI/B8ZS

Interfaces/Ports

Serial V.35 Interface	Yes
Serial Port	Yes
Number of RJ-48 Ports	1

Media & Performance

Carrier Supported	T-carrier

Power Description

Input Voltage	120 V AC

Physical Characteristics

Height	2.30" (58.42 mm)
Width	8.50" (215.90 mm)
Depth	11.30" (287.02 mm)
Weight (Approximate)	3.18 kg

Miscellaneous

Additional Information	Connectors: MT1510A-35, MT1511A: (1) V.35 F, (2) DB9 F ([1] console, [1] SNMP management); MT1510A-530: (1) RJ-48C, (1) M/34 F, (2) DB9 F ([1] console, [1] SNMP management) Line Rate: 1.544 Mbps Framing: D4/ESF selectable Command Mode: Console, SNMP, LCD/front panel
Country of Origin	United States
TAA Compliant	Yes
Condition	No

Warranty

Limited Warranty	1 Year
