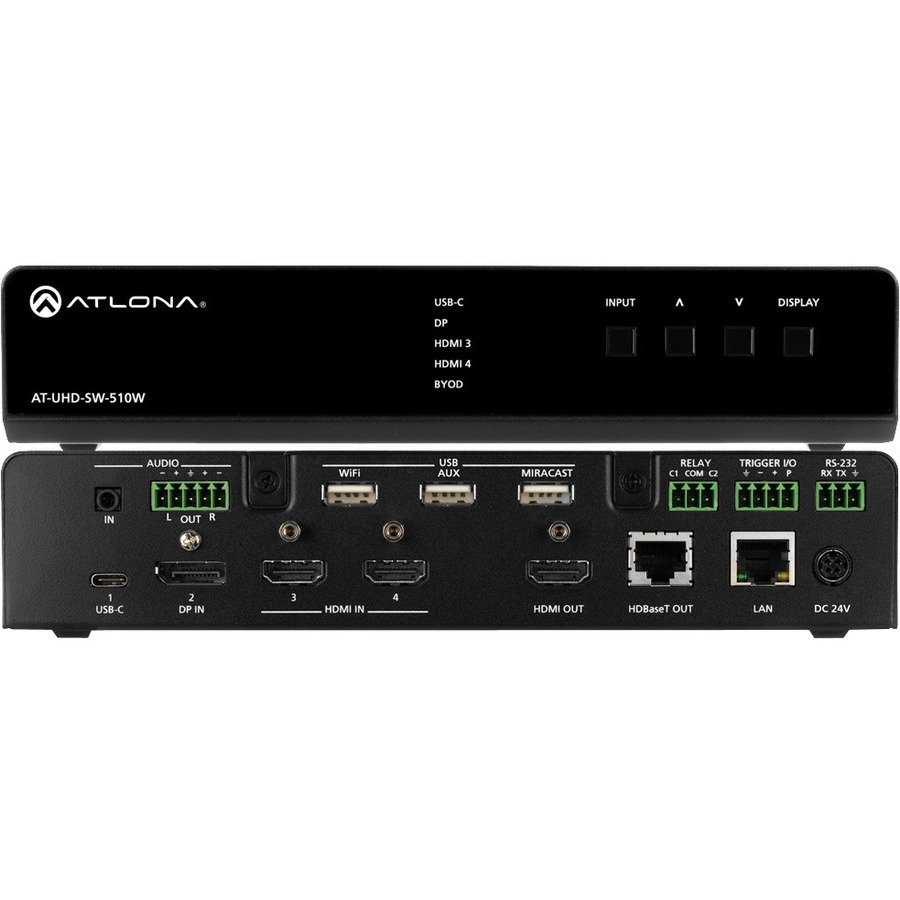

Atlona 4K/UHD Five-Input Universal Matrix Switcher

Part No. AT-UHD-SW-510W

by Atlona Technologies

Atlona 4K/UHD Five-Input Universal Matrix Switcher

4096 x 2160 - 4K - Twisted Pair - 5 x 2 - Display, Tablet, Computer - 1 x HDMI Out - 1 x DisplayPort In - DisplayPort

Part No. AT-UHD-SW-510W

by Atlona Technologies

$1824.99
General Information
ManufacturerAtlona Technologies
Manufacturer Part NumberAT-UHD-SW-510W
Brand NameAtlona
Product SeriesSW
Product ModelSW-510W
Product Name4K/UHD Five-Input Universal Matrix Switcher
Marketing InformationThe Atlona AT-UHD-SW-510W is a 5×2, multi-format matrix switcher with wireless presentation capability. It provides universal BYOD (bring your own device) compatibility with HDMI, DisplayPort, and USB-C inputs, plus wireless connectivity for mobile devices. The SW-510W is HDCP 2.2 compliant, and features matrixed or mirrored HDMI and HDBaseT outputs. The HDBaseT output is ideal for use with the Atlona AT-UHD-EX-100CE-RX-PSE HDBaseT receiver, or the AT-HDVS-SC-RX scaling HDBaseT receiver. It also includes automatic input switching and automatic display control capability, both applicable to wired and wireless source connections. This unique multi-format matrix switcher and wireless gateway provides a universal connectivity solution for presentation devices in a wide range of professional AV applications.

Applications

Meeting spaces

The SW-510W provides the flexibility to accept any presenter device, whether wired or wireless. This capability is ideal for a wide range of meeting environments, from a huddle room to a large presentation space in a convention center.

Classrooms and auditoriums

A credenza or lectern-based AV system for resident sources, plus wireless connectivity for a participant's laptop or tablet.

Small to medium-sized meeting spaces

The SW-510W is compact and ideal for under-table mounting. It conveniently provides automatic switching and display control for simplified user operation, especially with laptops and mobile devices brought into the system.

Conference rooms and boardrooms

The SW-510W features two matrixed outputs for seamless integration into a display and a hardware-based video conferencing system, with additional versatility by enabling wireless AV content presentations to the far end.
The matrix switching capability provides the convenience of auto-switching for local BYOD content that feeds into the codec, while simultaneously allowing far-end content to be shared.

Presentation spaces where two displays are needed

This switcher can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location. With matrixed outputs, the SW-510W also can support two simultaneous presenters on two screens.

Product TypeAudio/Video Switchbox
Technical Information
Connectivity TechnologyCable
Number of Input Devices Supported5
Device Supported
  • Display
  • Tablet
  • Computer
Number of Displays Supported2
Video
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Interfaces/Ports
HDMI InYes
HDMI OutYes
DisplayPortYes
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports2
Number of USB Ports4
Number of HDMI Inputs2
Number of HDMI Outputs1
Number of DisplayPort Inputs1
Media & Performance
Media Type SupportedTwisted Pair
Maximum Operating Distance330 ft (100584 mm)
Power Description
Input Voltage24 V DC
Power Consumption121 W
Physical Characteristics
Form FactorRack-mountable
Height1.73" (43.94 mm)
Width8.64" (219.46 mm)
Depth10" (254 mm)
Weight (Approximate)1.68 kg
Miscellaneous
Package Contents
  • 4K/UHD Five-Input Universal Matrix Switcher
  • User Guide
  • 2 x USB Wi-Fi Adapters/Antennas
  • Surface Mounting Brackets
  • 2 Meter (6.5 Foot) USB-C Male-to-Male Cable (USB 3.1 Gen 1)
  • External Universal Power Supply
ConditionNo
UPC846352005146
Warranty
Limited Warranty10 Year
