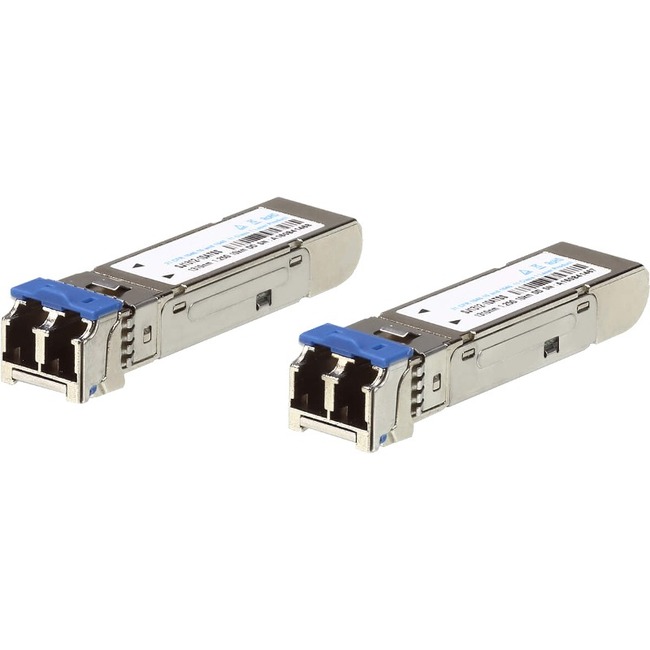

ATEN Fiber Multi-Mode 1.25G SFP Transceiver Module (550M)
For Data Networking, Optical Network - 1 x Duplex 1000Base-X Network - Optical Fiber - Multi-mode - 1.25 Gigabit Ethernet - 1000Base-X - Hot-pluggable - 2
$172.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | 2A-136G |
| Brand Name | ATEN |
| Product Model | 2A-136G |
| Product Name | Fiber Multi-Mode 1.25G SFP Transceiver Module (550M) |
| Marketing Information | The 2A-136G Fiber Multi-Mode 1.25G SFP Transceiver Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver. |
| Packaged Quantity | 2 |
| Product Type | SFP (mini-GBIC) |
Technical Information
| Application/Usage |
|
Interfaces/Ports
| Total Number of Ports | 1 |
| Interfaces/Ports Details | 1 x Duplex 1000Base-X Network |
Media & Performance
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Network Technology | 1000Base-X |
Physical Characteristics
| Form Factor | Hot-pluggable |
| Height | 0.51" (13 mm) |
| Width | 0.57" (14.60 mm) |
| Depth | 2.20" (55.90 mm) |
| Weight (Approximate) | 20 g |
Miscellaneous
| Compatibility | MSA Compliant |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 672792007903 |
