Atlona 4K/UHD Two-Input Wallplate Switcher for HDMI with HDBaseT Output
4096 x 2160 - 4K - Twisted Pair - 2 x 1 - Display, Computer, Blu-ray Disc Player
$983.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDVS-210H-TX-WP |
| Brand Name | Atlona |
| Product Series | HDVS-200 |
| Product Model | AT-HDVS-210H-TX-WP |
| Product Name | 4K/UHD Two-Input Wallplate Switcher for HDMI with HDBaseT Output |

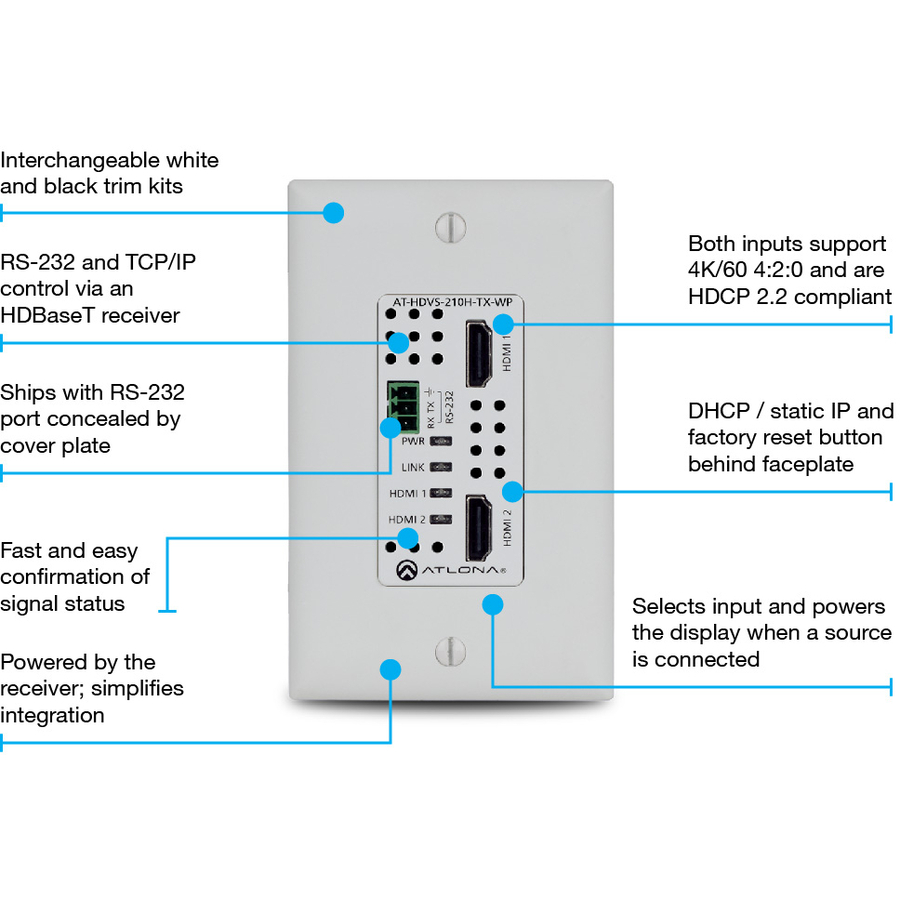

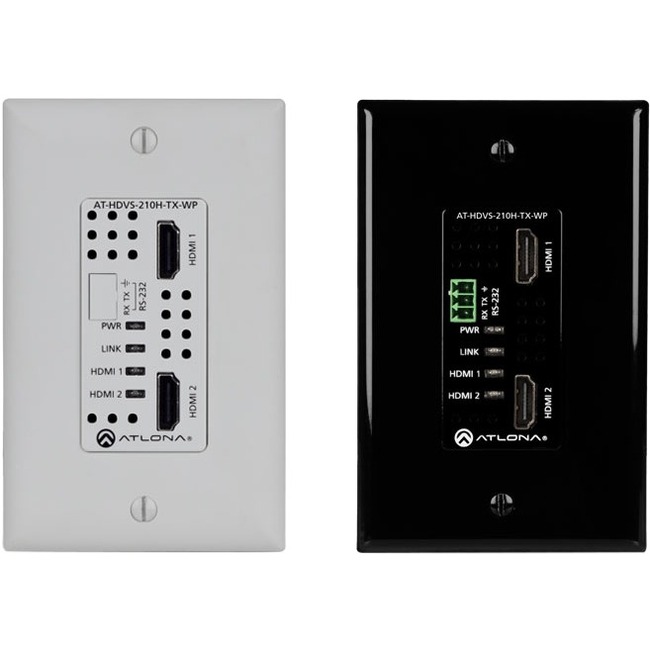

| Marketing Information | The Atlona AT-HDVS-210H-TX-WP is a 2x1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to 330 feet (100 meters). The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is designed for use with select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the UHD-EX-100CE-RX-PSE or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE). Applications Complete system applications The HDVS-210H-TX-WP and a compatible HDBaseT receiver provide a compact, yet comprehensive and cost-effective integration solution. Larger system applications The HDVS-210H-TX-WP is ideal for extending AV connectivity from a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system. |
| Product Type | Audio/Video Switchbox |
Technical Information
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported |
|
| Number of Displays Supported | 1 |
Video
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
Interfaces/Ports
| HDMI In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 2 |
Media & Performance
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
Physical Characteristics
| Form Factor | Wall Plate |
| Depth | 2.35" (59.69 mm) |
| Weight (Approximate) | 180 g |
Warranty
| Limited Warranty | 10 Year |
