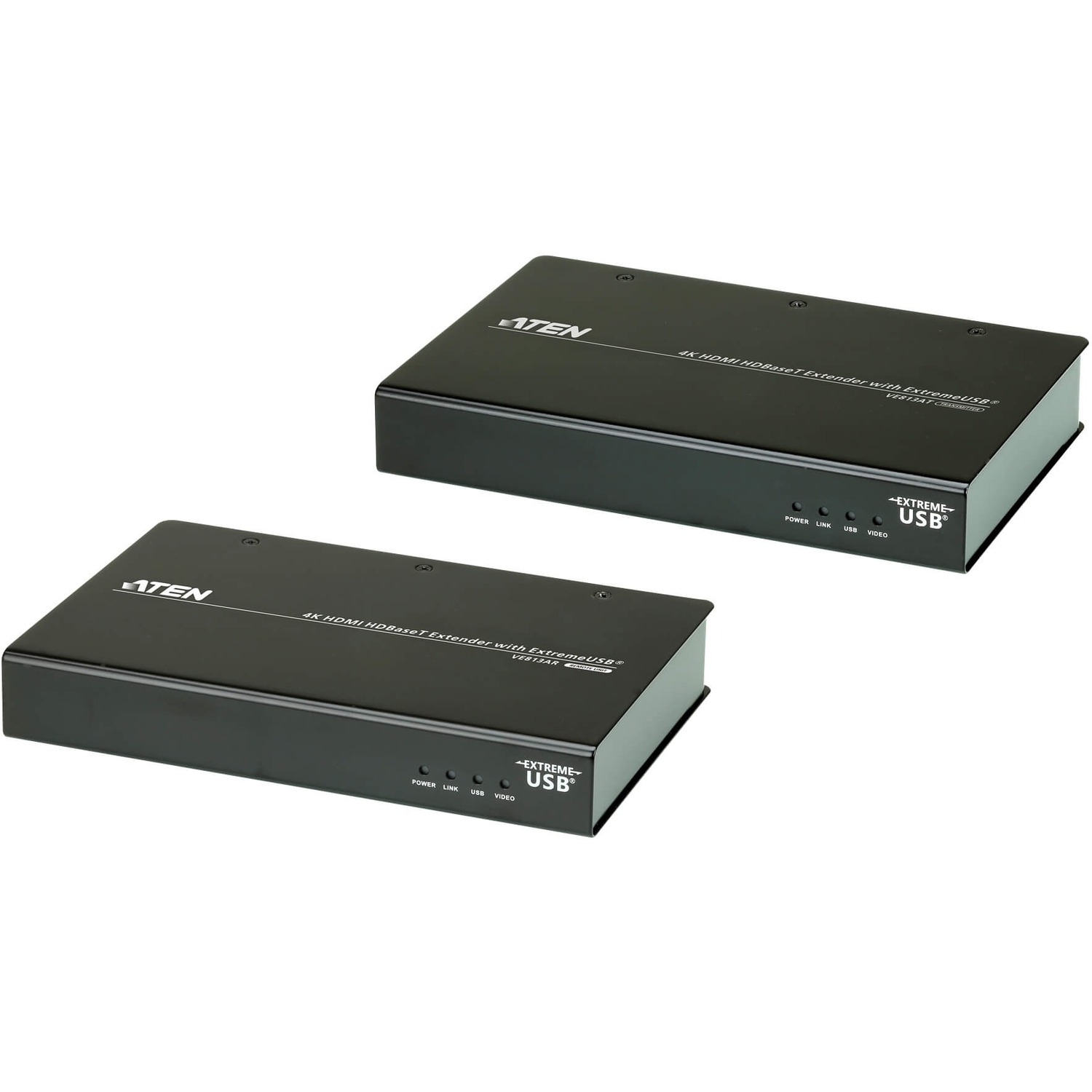

ATEN 4K HDMI HDBaseT Extender with ExtremeUSB (4K@100m) (HDBaseT Class A)
1 Computer(s) - 1 Remote User(s) - 328.08 ft (100000 mm) Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x HDMI - 5 V DC Input Voltage - Rack-mountable - For PC
$1310.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | VE813A |
| Brand Name | ATEN |
| Product Line | VanCryst |
| Product Model | VE813A |
| Product Name | 4K HDMI HDBaseT Extender with ExtremeUSB (4K@100m) (HDBaseT Class A) |
| Marketing Information | The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Color, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage. |
| Product Type | KVM Console/Extender |
Technical Information
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 328.08 ft (100000 mm) |
Video
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
Interfaces/Ports
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
Power Description
| Input Voltage | 5 V DC |
| Power Consumption | 5.75 W |
Physical Characteristics
| Form Factor | Rack-mountable |
| Transmitter Height | 1.13" (28.70 mm) |
| Transmitter Width | 4.57" (116.08 mm) |
| Transmitter Depth | 7.17" (182.12 mm) |
| Receiver Height | 1.13" (28.70 mm) |
| Receiver Width | 4.57" (116.08 mm) |
| Receiver Depth | 7.17" (182.12 mm) |
| Transmitter Weight (Approximate) | 1.34 lb (610 g) |
| Receiver Weight (Approximate) | 1.37 lb (620 g) |
Miscellaneous
| Package Contents |
|
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | Taiwan |
| Condition | No |
| UPC | 672792007156 |
