Lantronix Lantronix 48-port SLC 8000, TAA Compliant

Part No. SLC80482211G

by Lantronix, Inc

$13584.99

On back-order, will ship once in-stock

  • All Locations: (0+)

Lantronix Lantronix 48-port SLC 8000, TAA Compliant

Remote Management

Part No. SLC80482211G

by Lantronix, Inc

$13584.99

On back-order, will ship once in-stock

  • All Locations: (0+)

General Information
ManufacturerLantronix, Inc
Manufacturer Part NumberSLC80482211G
Brand NameLantronix
Product SeriesSLC
Product Model8000
Product NameLantronix 48-port SLC 8000, TAA Compliant
Marketing Information
  • Secure access to IT equipment with RS-232 and USB console ports
  • Access devices via Telnet/SSH or a Web browser-based console client without any proprietary software.
  • Leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact.
  • Connect in-band with dual Gigabit Ethernet or dual SFPs and through out-of-band connections including dial-up and cellular connectivity options.
  • Modular design to deploy what you need at each location, up to 48 ports: RJ-45 serial, Ethernet, or serial USB.
Product TypeInfrastructure Management Equipment
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Input Voltage Range100V AC to 240V AC
Physical Characteristics
Form FactorRack Mount
Height1.73" (44 mm)
Width17.24" (438 mm)
Depth12.01" (305 mm)
Weight (Approximate)11.10 lb (5034.88 g)
Miscellaneous
Additional InformationDevice Access
  • In-Band (10/100/1000 Base - Ethernet) 2 GbE (10/100/1000BT) ports on RJ45 or 2 SFP Fiber/Copper port
  • Out-of-Band (Local terminal, internal modem, external gateway)
Security and Authentication
  • Enterprise-grade security
  • Secure Shell (TLS v1, v1.1, v1.2)
  • Secure Sockets Layer (TLS)
  • Packet filtering (firewall)
  • Per port user permissions
  • Configurable user/group rights
  • Remote authentication: LDAP, RADIUS, Kerberos, TACACS+, AD, NIS
  • Local username/password
  • NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197
  • FIPS 140-2 compliant cryptography (Certificate #1878)
Serial Device Port Access
  • Software programmable device ports
  • Telnet/SSH to SLC command line
  • Telnet/SSH/RAW-TCP direct to IP address and port number
  • HTML5 support for Java-free web based WebSSH/WebTelnet remote access to console ports
  • Multiple Telnet/SSH sessions
  • Simultaneous access on the same port
  • No inadvertent "breaks" - Sun break-safe
  • Customizable multi-level user menus
  • USB modem access
  • Automatic port-initiated connections to network host or neighboring port
  • Enable terminal login on any device port
  • SD card and USB
Data Capture and Notification
  • Port buffering-256 KB per port
  • Port logging to local files, syslog, USB thumb drive, SD card, and NFS share
  • NFS files (simultaneous)
  • System event logs
  • Console event notification via email
  • Event string recognition (RegExp)
Management
  • Front panel keypad and LCD display for network setup
  • Quick setup and configuration web interface (SSL)
  • CLI setup script
  • CLI (Telnet, SSH, Web Telnet/SSH or direct serial)
  • SNMP (MIB II) compatible-v1, v2, v3, custom MIBs
  • Integrates with the Lantronix SLPTM remote power management tool and Server Technology PDU
  • Integrated support for Sensorsoft devices
  • Diagnostics and port status counters
    • Performance monitoring utility
    • Packet generation utility
    • Network trace utility
    • Configuration audit log
  • Active user list display, port monitoring and timeout
  • Local subnet search for other Lantronix console solutions
  • Maximum of 396 concurrent sessions and maximum 15 users per device port at 9600 baud rate (typical)
Additional Protocols Supported
  • DHCP and BOOTP for dynamic IP address assignment
  • NTP for time synchronization
  • FTP, TFTP, SFTP, SCP client for file transfers
  • DNS for text-to-IP address name resolution
  • SSH, SSL, Telnet and UDP, PPP with PAP/CHAP, NFS and CIFS for connections in and out of the SLC
  • IPsec/VPN
  • RIP and RIPv2
  • IPv6 Ready Certified
Interfaces

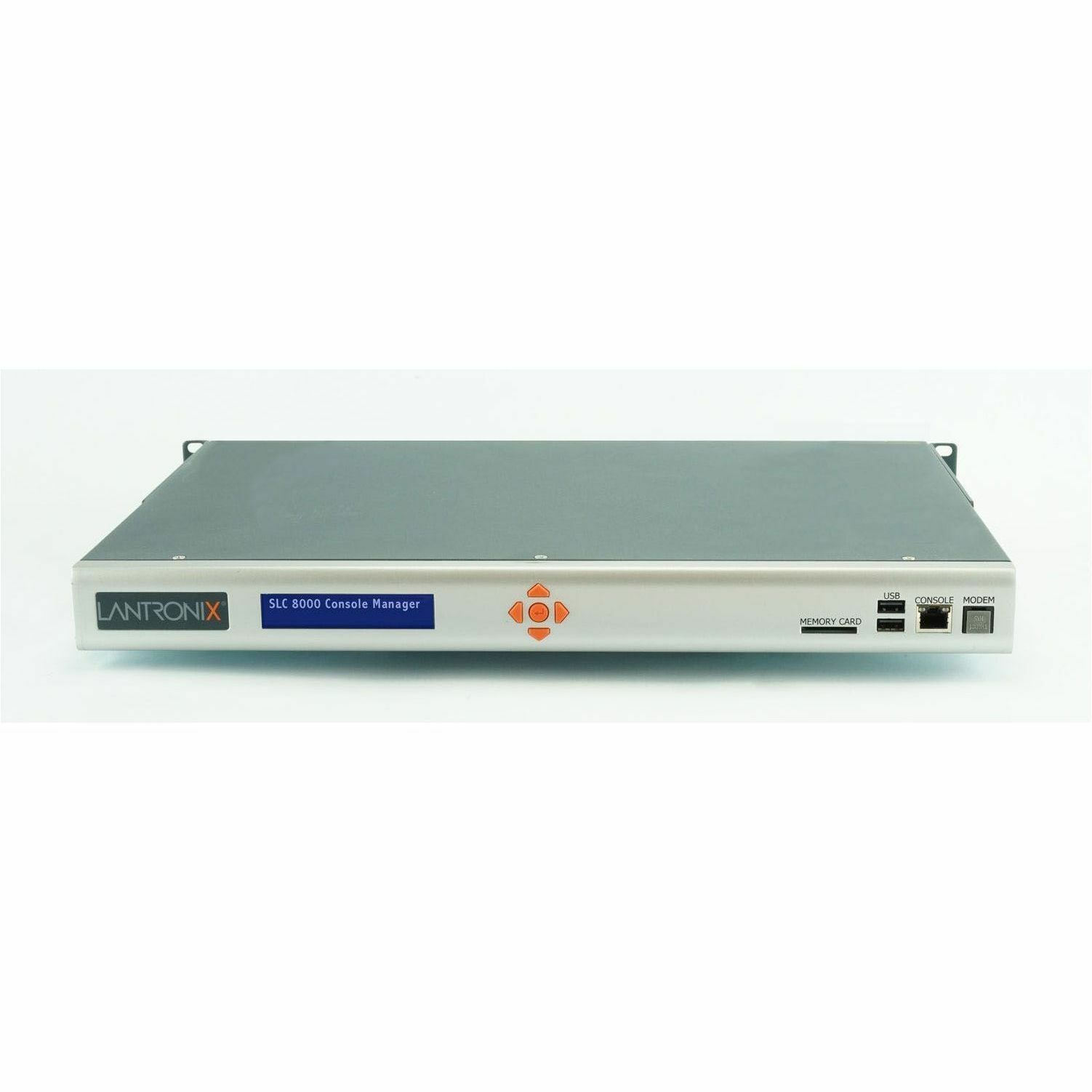

  • Front Panel: USB Host port, SD/SDHC slot, POTS (RJ11) modem, RS-232 console

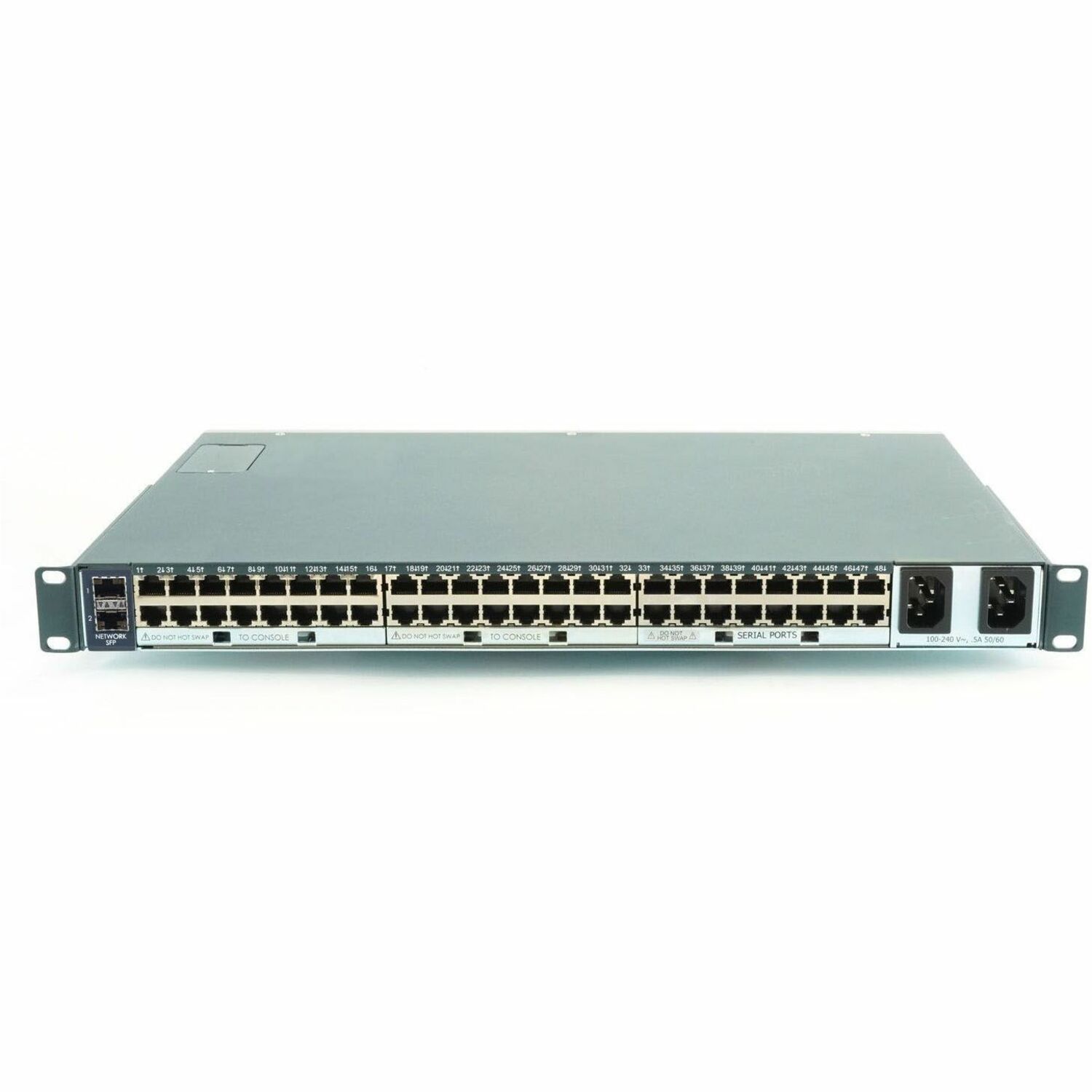

  • Back Panel: Dual Gb Ethernet or Dual Gb fiber SFP ports; RS-232 (RJ45) 300 to 230400 bps or USB in 16, 32, 48 ports
Power
  • AC model input (single/dual): 100-240 VAC, 50 to 60 Hz
  • DC model input (dual): -20 to -72 VDC
Application/UsageRemote Management
Environmentally FriendlyYes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • China Restriction of Hazardous Substances (China RoHS)
Country of OriginUnited States
TAA CompliantYes
ConditionNo
UPC0783384238527
Warranty
Limited Warranty3 Year
