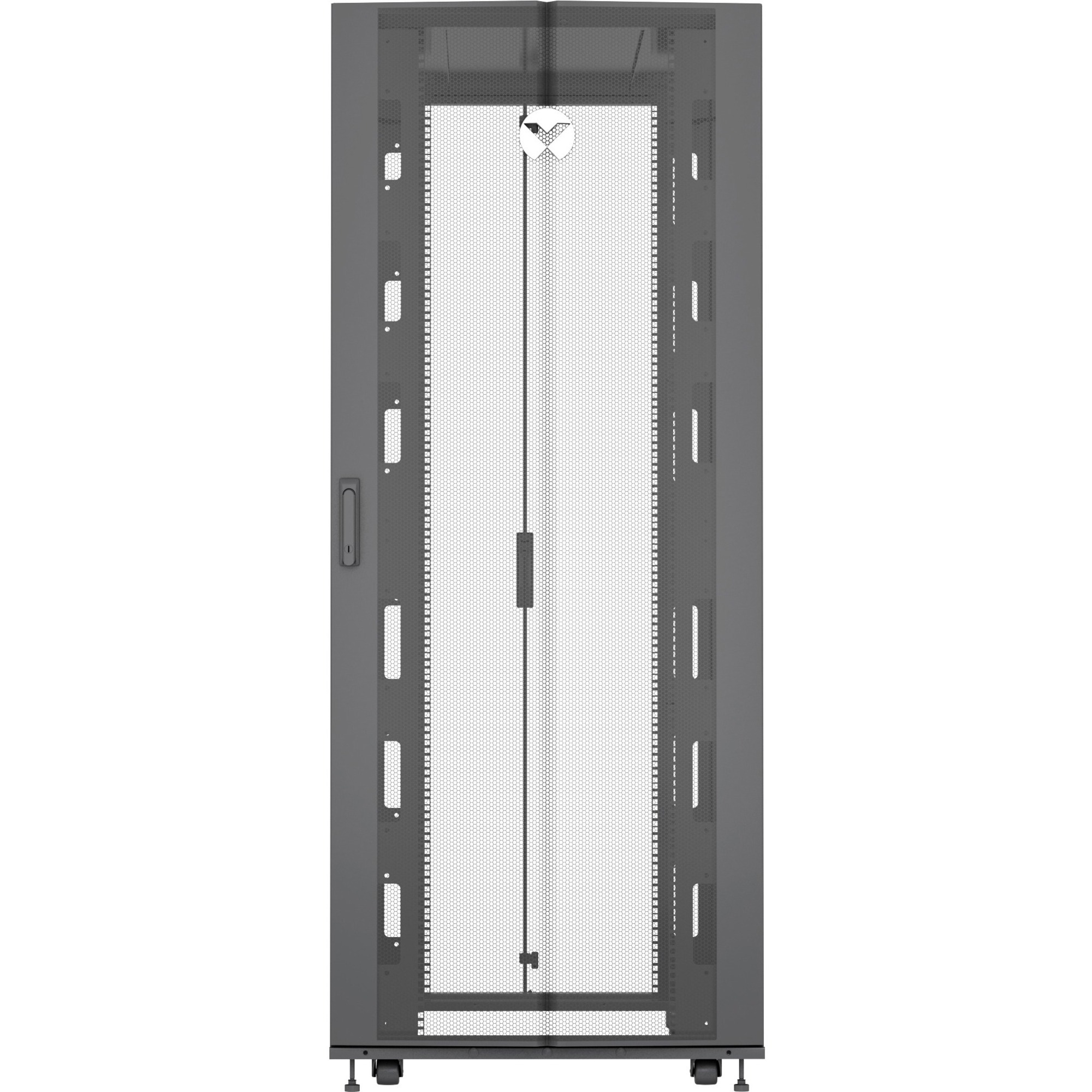

Vertiv™ VR Rack - 48U, 2265mm (H), 600mm (W), 1200mm (D)

Part No. VR3307

by Vertiv

Vertiv™ VR Rack - 48U, 2265mm (H), 600mm (W), 1200mm (D)

For Server, LAN Switch, Patch Panel, UPS, PDU, KVM Switch - 48U Rack Height x 19" (482.60 mm) Rack Width x 47.83" (1215 mm) Rack Depth - Floor Standing - Black - Steel - 3000.49 lb (1361000 g) Maximum Weight Capacity - 2248.72 lb (1020000 g) Dynamic/Rolling Weight Capacity - 2998.29 lb (1360000 g) Static/Stationary Weight Capacity

Part No. VR3307

by Vertiv

$3875.99
General Information
ManufacturerVertiv
Manufacturer Part NumberVR3307
Brand NameVERTIV
Product LineVR
Product NameVertiv VR Rack - 48U Server Rack Enclosure| 600x1200mm| 19-inch Cabinet (VR3307)
Marketing Information

The Vertiv VR Rack VR3307 is a 48U server rack built with reliable engineering and is designed for simple and easy configuration. It has dimensions of 2265mm x 600mm x 1200mm (height, width, and depth), and has a deep frame that provides users around 2.5 inches more useable depth than similar sized racks. It has load capacities of 3,000 pounds static and 2,500 pounds dynamic. It is delivered ready for high density environments and supports a wide variety of equipment, including: servers, storage, PDUs, UPSs, console servers, and KVM switches. The zero U spaces in the Vertiv VR Rack have brackets and mounting holes for tool-less installation and removal of rack PDUs and cable management accessories. Each rack also comes with two sets of 19-inch EIA rails for sliding shelves, and the rack has split side panels with single locking slam latch that allows for easy single person installation and removal.

More from the Manufacturer

Product TypeRack Cabinet
Technical Information
Application/Usage
  • Server
  • LAN Switch
  • Patch Panel
  • UPS
  • PDU
  • KVM Switch
Physical Characteristics
Form FactorFloor Standing
Product ColorBlack
Product MaterialSteel
Maximum Weight Capacity3000.49 lb (1361000 g)
Dynamic/Rolling Weight Capacity2248.72 lb (1020000 g)
Static/Stationary Weight Capacity2998.29 lb (1360000 g)
Height89.17" (2265 mm)
Width23.62" (600 mm)
Depth47.24" (1200 mm)
Weight (Approximate)365.97 lb (166000 g)
Rack Height48U
Rack Width19" (482.60 mm)
Rack Depth47.83" (1215 mm)
Miscellaneous
Package Contents
  • VR - 48U with Doors/ Sides & Casters
  • 50 x M6 Cage Nuts and M6 Screws
  • Baying Hardware
  • Edge Grommet
  • Combination T30 Torx L-key with Phillips head
  • Cage Nut Insertion Tool
  • T30 Extension Driver
Additional Information
  • Rack rails: Yes
  • Side panel key lock: Yes
  • Front door key lock: Yes
  • Side panels included: Yes
  • Cable management: Yes
  • Reversible doors: Yes
Compatibility

Vertiv VR Rack

Assembly RequiredNo
Country of OriginThailand
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
ConditionNo
UPC0767041025361
