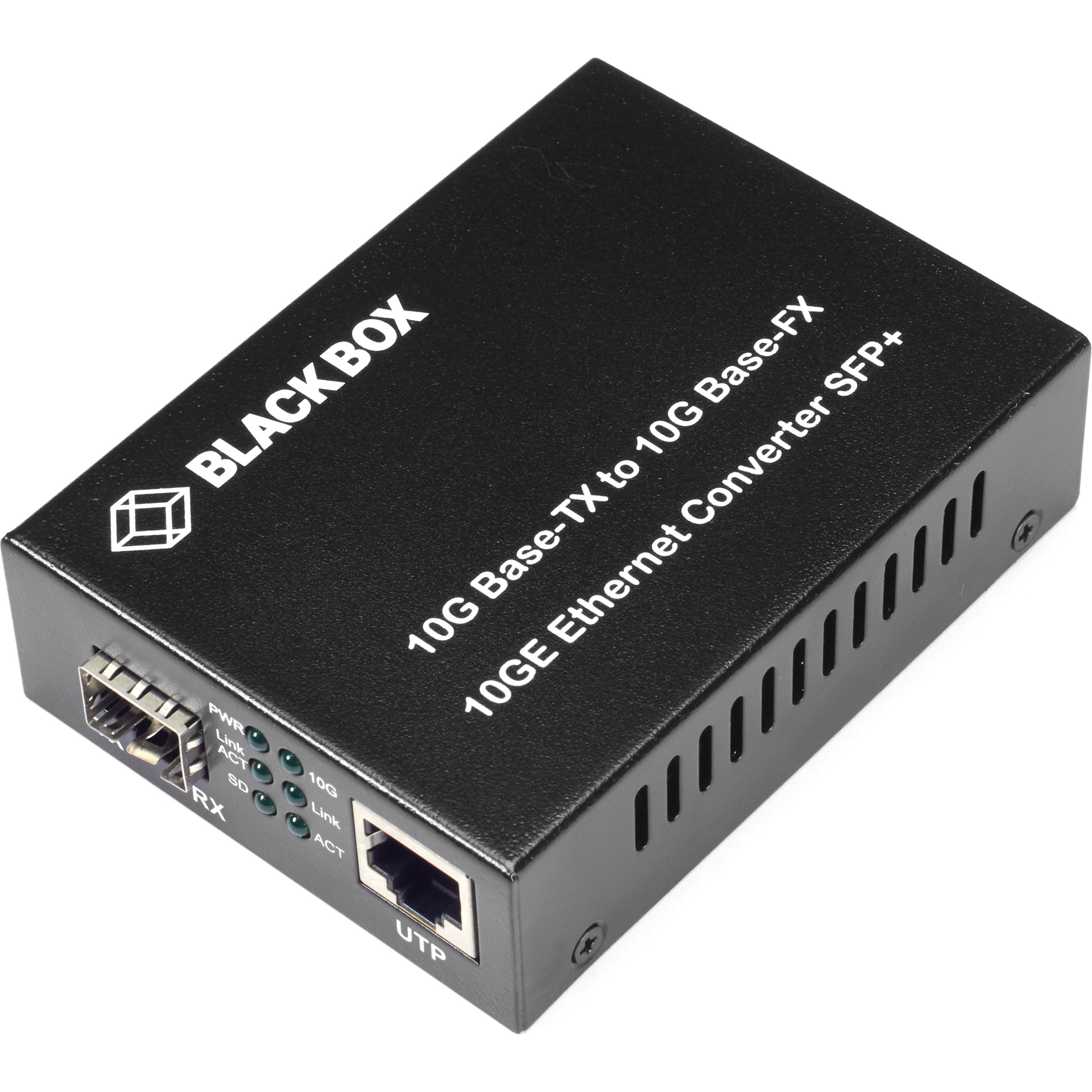

Black Box 10GBASE-TX to 10GBASE-FX Media Converter

1 x Network (RJ-45) - Single-mode, Multi-mode - 10 Gigabit Ethernet - 10GBase-T, 10GBase-FX - 0.10 km (0.06 Mile) - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - AC Adapter - Standalone

Part No. LGC220A

by Black Box Corporation

$702.99

Manufacturer Brochure

Specifications
Options & Accessories (4)

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	LGC220A
Brand Name	Black Box
Product Line	Pure Networking
Product Name	10GBASE-TX to 10GBASE-FX Media Converter
Marketing Information	Convert quickly and easily Convert 10GBASE-T to 10GBASE-R without hassle. The bridge media converter is designed with a 10GBASE Ethernet PHY chip that connects these two segment types smoothly. Support for a variety of media The converter supports 1000BASE-T: CAT5 UTP/STP. MAX 100m; 2.5GBASE-T: CAT5e UTP/STP. MAX 50m; 5GBASE-T: CAT5e UTP/STP. MAX 50m; and 10G BASE-T: CAT6a UTP/STP. MAX 50m.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode Multi-mode
Maximum Distance Supported	0.10 km (0.06 Mile)
Fiber Optic Cable Core/Cladding Specification	50/125 µm 62.5/125 µm 8.3/125 µm 9/125 µm 10/125 µm

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP+
Number of SFP+ Slots	1

Network & Communication

Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-T 10GBase-FX

Power Description

Power Source	AC Adapter
Power Consumption	12 W
Plug/Connector Type	Barrel
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Standalone
Height	1" (25.40 mm)
Width	3.70" (93.98 mm)
Depth	2.70" (68.58 mm)
Weight (Approximate)	11.20 oz (317.51 g)

Miscellaneous

Package Contents	Pure Networking 10-Gigabit (10-Gbps) Media Converter 12-V DC Power Supply Power Cord
Additional Information	Works as a mode converter, but not a rate converter.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	China
Condition	No
UPC	822088130925

Warranty

Limited Warranty	3 Year
