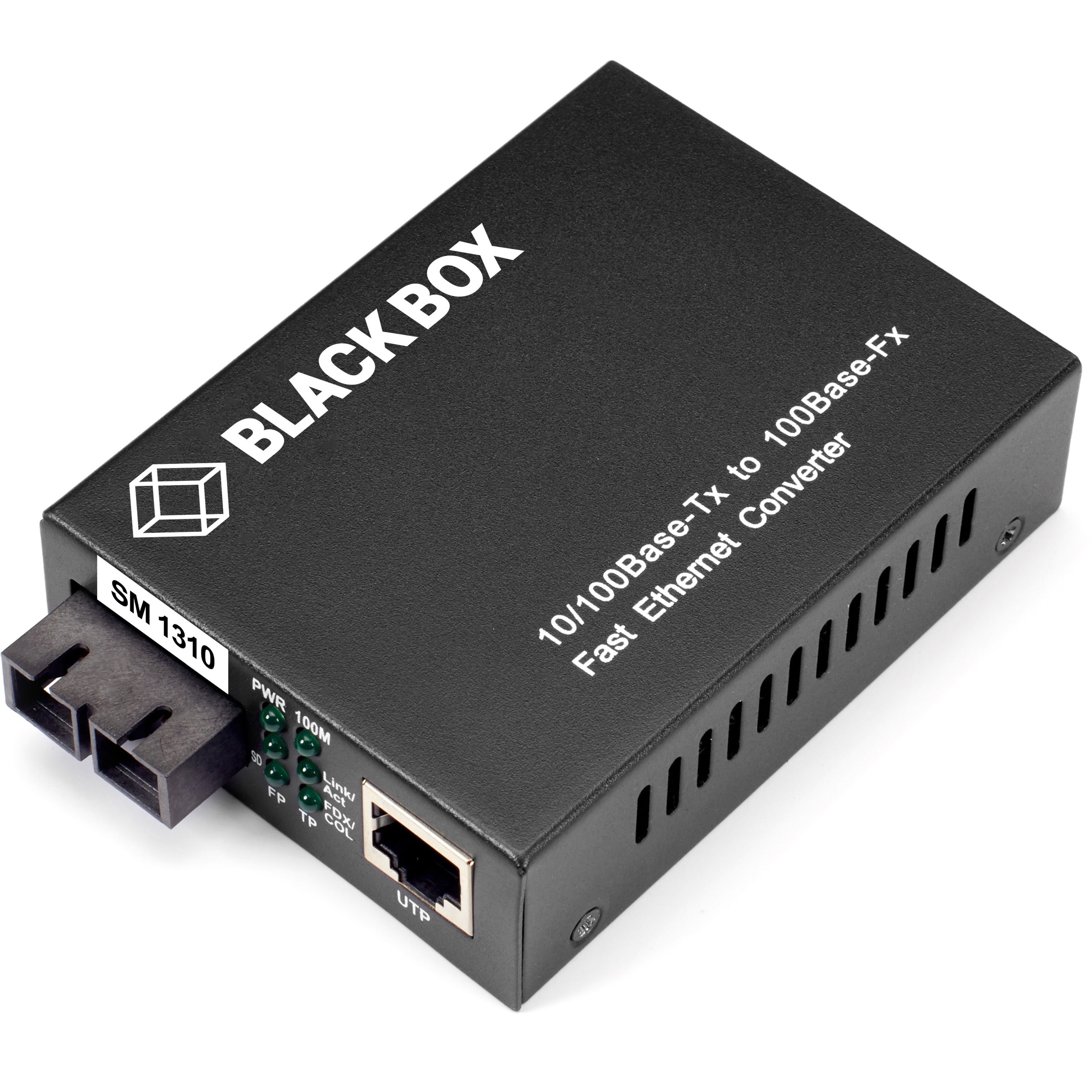

Black Box Pure Networking Fast Ethernet (100-Mbps) Media Converter

1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 10 km (6.21 Mile) - AC Adapter - Standalone, Rack-mountable

Part No. LHC212A

by Black Box Corporation

$92.99

Specifications
Options & Accessories (4)

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	LHC212A
Brand Name	Black Box
Product Line	Pure Networking
Product Name	Pure Networking Fast Ethernet (100-Mbps) Media Converter
Marketing Information	High-quality media conversion Adapt your deployment. This media converter easily converts 10/100BASE-TX to 100BASE-FX-TP-to-ST/SC/VF-45/MT-RJ. Smooth connection This media converter is designed with a switch controller and buffer memory that ensures two segment types connect without issue. Straight-forward installation Quick installation and setup. This converter can be used as a standalone unit or as a slide-on module to the 19' converter rack chassis for use in a central wiring closet. Know link media issues immediately Features helpful Link Fault Pass-Through (LFP) functionality. LFP immediately alarms administrators to the problem with the link media and provides an efficient solution to monitor the net.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Distance Supported	10 km (6.21 Mile)
Fiber Optic Cable Core/Cladding Specification	8.3/125 µm 9/125 µm 10/125 µm

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX

Power Description

Power Source	AC Adapter
Plug/Connector Type	Barrel
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Standalone Rack-mountable
Height	1" (25.40 mm)
Width	3.70" (93.98 mm)
Depth	2.70" (68.58 mm)
Weight (Approximate)	11.20 oz (317.51 g)

Miscellaneous

Package Contents	Pure Networking Fast Ethernet (100-Mbps) Media Converter 5 -VDC Power Adapter
Additional Information	Use as a standalone unit or with available chassis (LHGC-RACK).
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	China
Condition	No
UPC	822088130963

Warranty

Limited Warranty	3 Year
