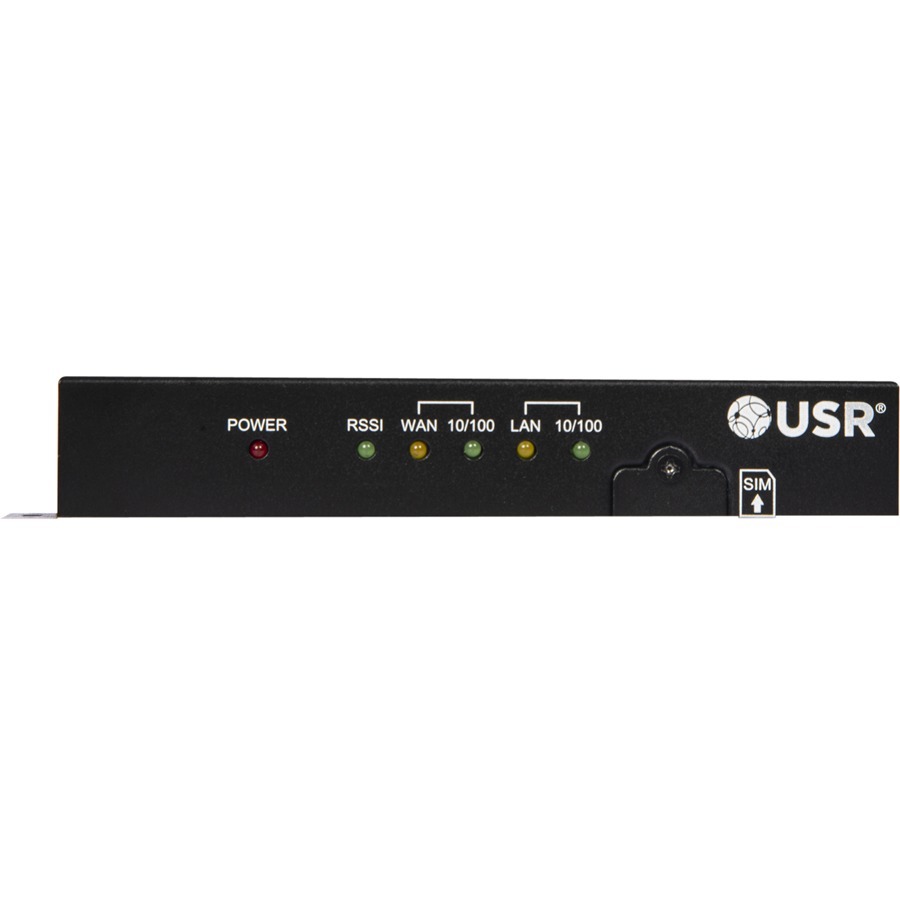

USRobotics Courier USR3513 1 SIM Cellular, Ethernet Modem/Wireless Router

Part No. USR3513

by U.S. Robotics

USRobotics Courier USR3513 1 SIM Cellular, Ethernet Modem/Wireless Router

4G - LTE 1900, LTE 1700, LTE 850, LTE 700, WCDMA 1900, WCDMA 850 - HSDPA, HSUPA, LTE(2 x External) - 1 x Network Port - 1 x Broadband Port - Fast Ethernet - VPN Supported - DIN Rail Mountable

Part No. USR3513

by U.S. Robotics

$221.99
General Information
ManufacturerU.S. Robotics
Manufacturer Part NumberUSR3513
Brand NameUSRobotics
Product LineCourier
Product ModelUSR3513
Product NameCourier M2M 4G LTE CAT 1 Cellular Gateway
Marketing Information

USR® Cellular M2M Gateway provides LAN-to-WWAN routing ideal for traditional M2M and IoT applications around the world.

The new USR® Courier® M2M 4G LTE Cat 1 Cellular Gateway provides cost-effective LAN-to-WWAN small-volume data transfer on all major 4G cellular networks. Affordable Cat 1 hardware reduces overall costs significantly while lowering the entry barriers to a wide range of M2M solutions making for an easier transition from analog to a long-term cellular solution. With an embedded serial port, the gateway allows quick implementation for a wide variety of serial-based systems already out in the field - making it ideal for M2M Serial applications including remote maintenance and control, Point-of-Sale, ATMs, monitoring, and automation. The embedded HTML-based GUI makes initial configuration simple and fast, with remote configuration available after deployment. For reliable, secure persistent connections rely on USR's international cellular modems and gateways for mission-critical applications.

Product TypeModem/Wireless Router
Wireless Specifications
Broadband Transmission Technology
  • Cellular
  • Ethernet
Cellular Generation4G
Cellular Network Supported
  • LTE 1900
  • LTE 1700
  • LTE 850
  • LTE 700
  • WCDMA 1900
  • WCDMA 850
Cellular Data Connectivity Technology
  • HSDPA
  • HSUPA
  • LTE
Number of External Antennas2
Interfaces/Ports
Number of Network (RJ-45) Ports1
Number of Broadband (RJ-45) Ports1
Network & Communication
Ethernet TechnologyFast Ethernet
VPN SupportedYes
Multi-SIM SupportedNo
Number of SIM Card Supported1
Physical Characteristics
Form FactorDIN Rail Mountable
Height1.04" (26.50 mm)
Width5.86" (148.80 mm)
Depth4.46" (113.30 mm)
Weight (Approximate)15.17 oz (430 g)
Miscellaneous
Package Contents
  • Courier M2M 4G LTE CAT 1 Cellular Gateway
  • 2 x 0db SMA Penta-band Antennas
  • Ethernet Cable
  • US Power Supply
  • Quick Start Guide
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Country of OriginTaiwan
ConditionNo
UPC738168041770
Warranty
Limited Warranty2 Year
