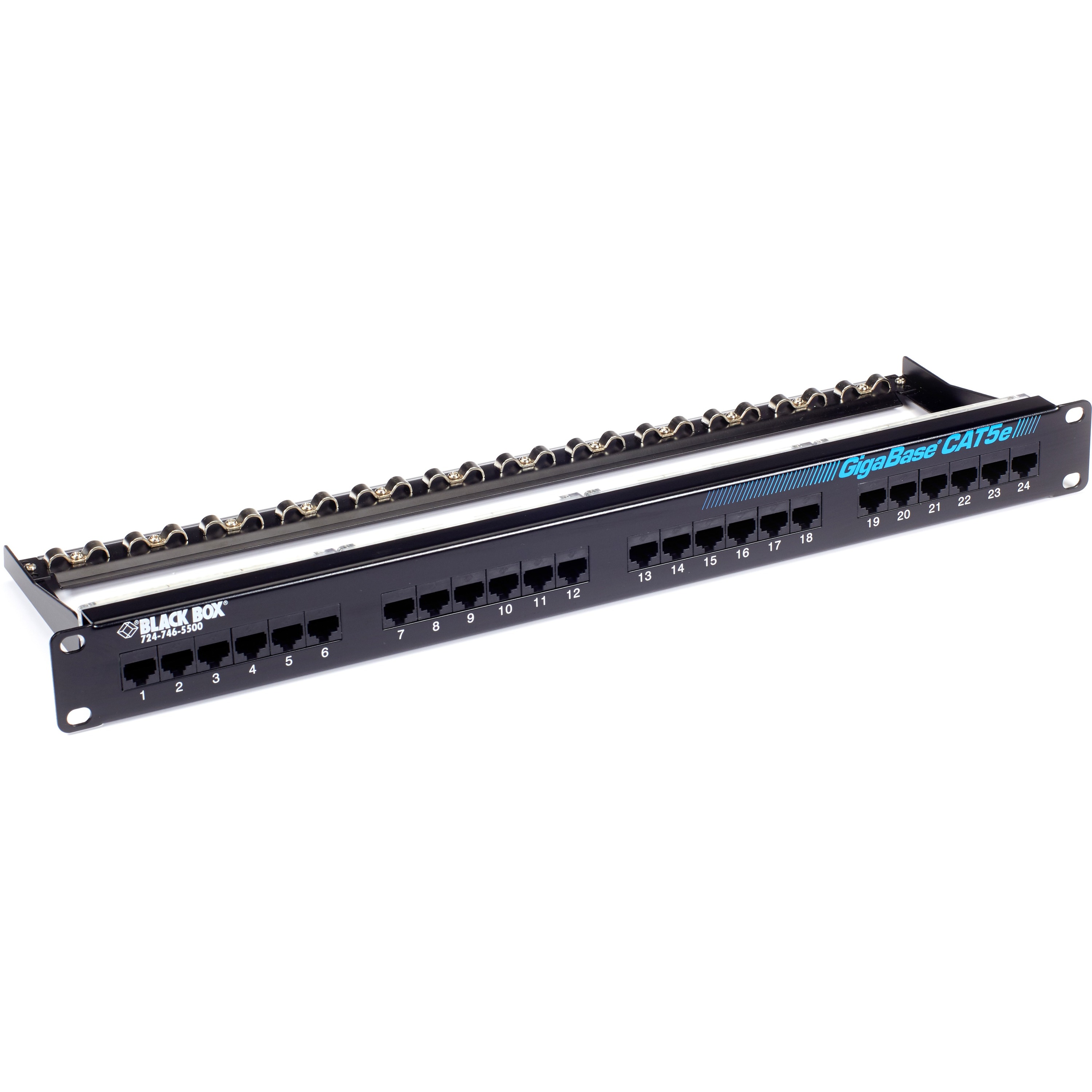

Black Box GigaBase CAT5e Patch Panel - 1U, Unshielded, 24-Port

Part No. JPM902A-R6

by Black Box Corporation

$128.99

Black Box GigaBase CAT5e Patch Panel - 1U, Unshielded, 24-Port

24 Port(s) - 24 x RJ-45 - 1U High - Rack-mountable - TAA Compliant

Part No. JPM902A-R6

by Black Box Corporation

$128.99

Specifications

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	JPM902A-R6
Brand Name	Black Box
Product Line	GigaBase
Product Name	GigaBase CAT5e Patch Panel - 1U, Unshielded, 24-Port

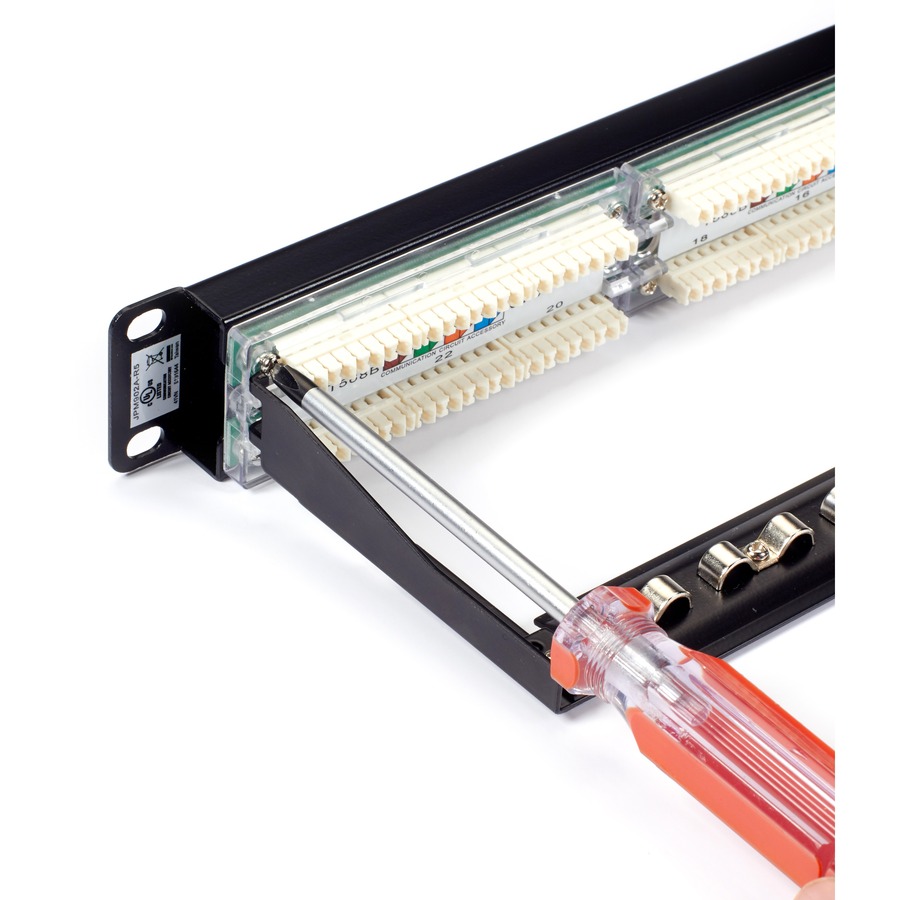

Marketing Information	Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT5e Includes cable management bars that make organization easier Provides significant headroom over CAT5e specifications Universal wiring - panels are supplied with labeling for both T568A and T568B wiring Wide spacing between IDCs means increased room for cable Rear IDCs feature in-line paired punchdown sequence IDC 110 block features peaks to make lacing cable easier Rolled-edge construction provides superior panel rigidity Includes cable ties and mounting hardware
Product Type	Network Patch Panel

Interfaces/Ports

Total Number of Ports	24
Number of Network (RJ-45) Ports	24

Physical Characteristics

Form Factor	Rack-mountable
Compatible Rack Unit	1U
Height	1.75" (44.45 mm)
Width	19" (482.60 mm)
Depth	1.25" (31.75 mm)
Weight (Approximate)	680.4 g

Miscellaneous

Package Contents	GigaBase CAT5e Patch Panel - 1U, Unshielded, 24-Port Cables Ties 4 x 10-32 4 x 12-24 Cup Heads Screws Stuffer Caps 1 x Cable Support Bar Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
TAA Compliant	Yes
Condition	No

Warranty

Limited Warranty	Lifetime
