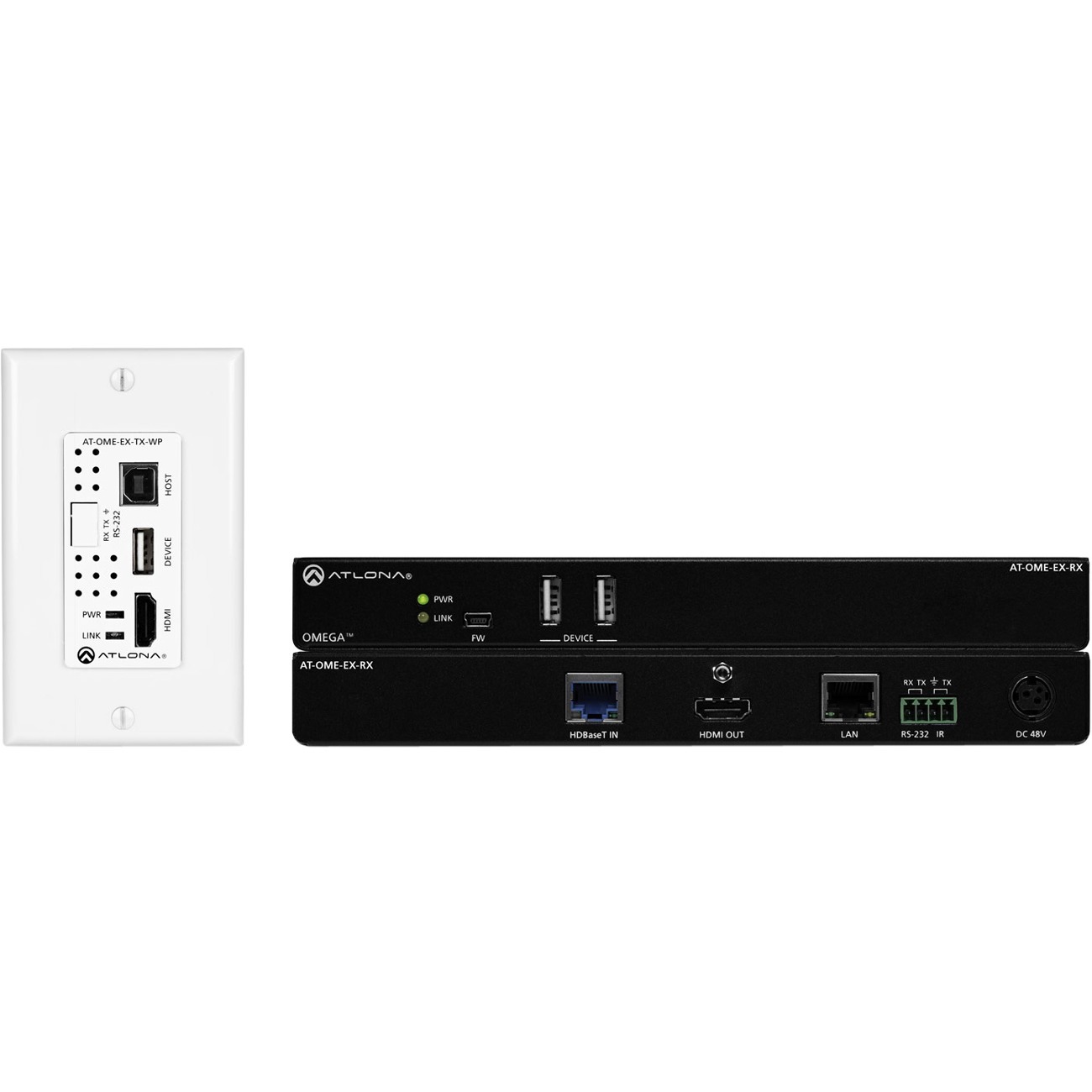

Atlona Wallplate HDBaseT TX/RX for HDMI with USB
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-EX-WP-KIT |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Name | Wallplate HDBaseT TX/RX for HDMI with USB |

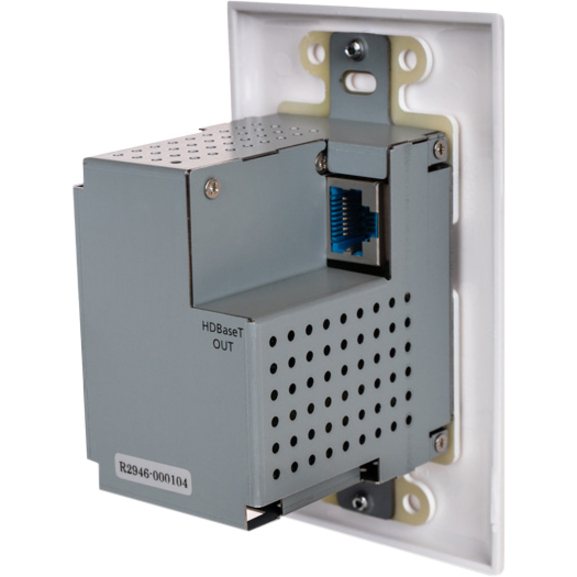

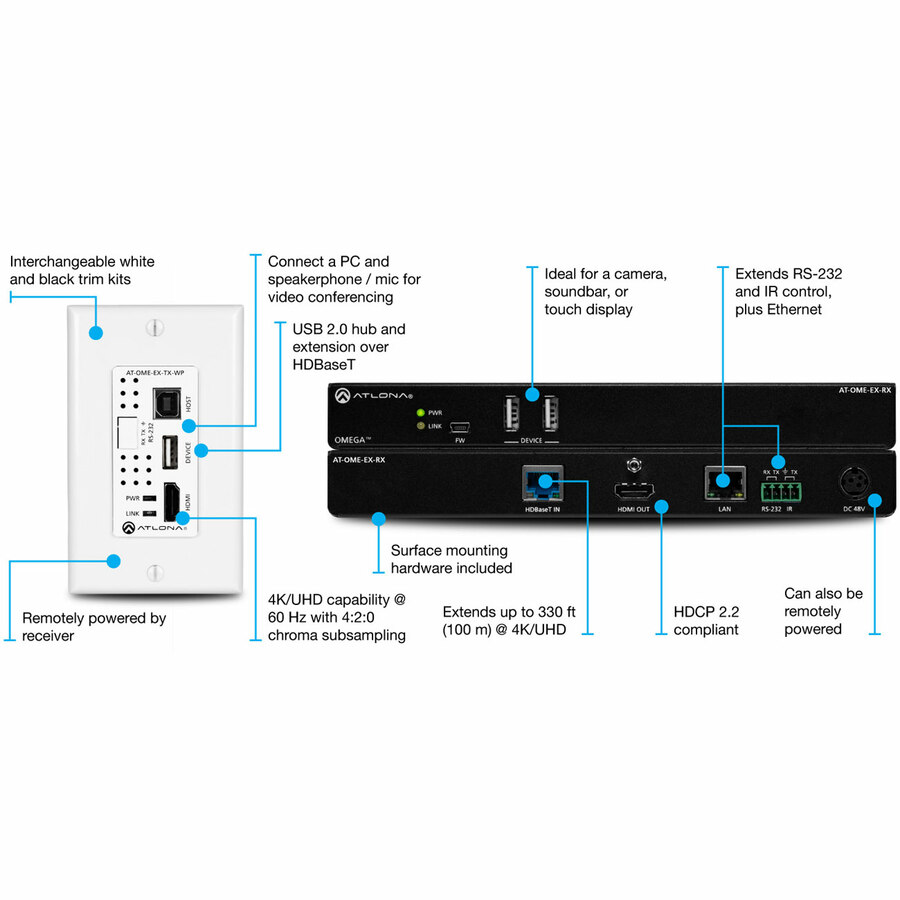

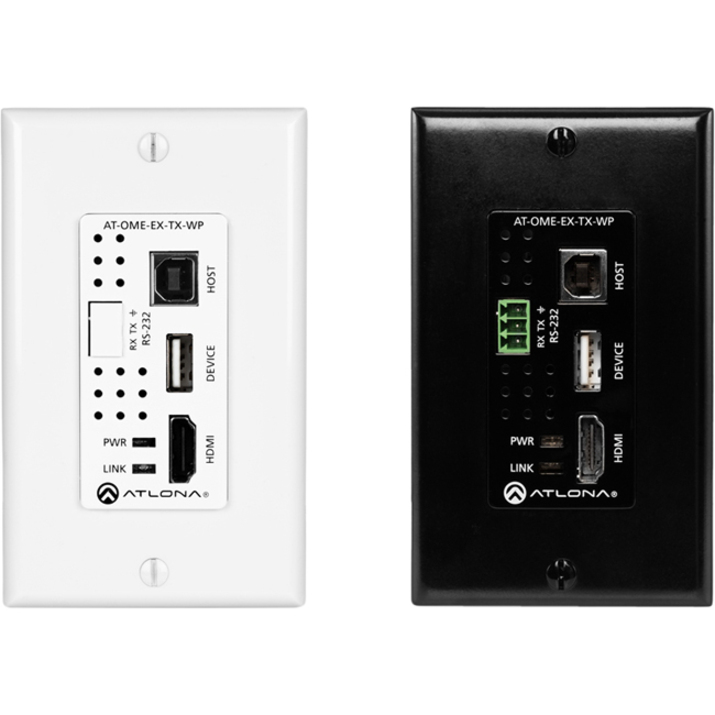

| Marketing Information | Easy BYOD and Conferencing for Huddle Rooms. HDMI and USB extender. Bring together the best of both worlds. Ready for Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, GoToMeeting, and more. Enhance collaboration and productivity with your preferred UC platform.. Great for interactive displays too. Deliver remote mouse and keyboard control with ease. Additional Features The Atlona AT-OME-EX-WP-KIT is an HDBaseT extender with wallplate transmitter, for video, control, and USB over distances up to 330 feet (100 meters). The OME-EX-WP-KIT is part of the Omega™ Series of integration products for modern AV communications and collaboration. White or black wallplate The wallplate transmitter for the OME-EX-WP-KIT includes interchangeable white and black trim kits, so you can choose what best matches the environment. Easy to install discreetly The wallplate transmitter can be installed on a wall, in furniture, or hidden within a floor box. The low-profile receiver can easily be concealed behind a wall-mounted display or above a projector. Remote device powering The transmitter is powered remotely by the receiver over the HDBaseT cable link. This greatly simplifies installation at a wall or any other location, without the need for local AC power. Extend RS-232 control The OME-EX-WP-KIT extends RS-232 control signals over HDBaseT, offering numerous possibilities for remotely interfacing a source or display with a control system. |
| Product Type | Video Extender Transmitter/Receiver |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of USB Ports | 5 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Transmitter Height | 4.07" (103.50 mm) |
| Transmitter Width | 1.80" (45.80 mm) |
| Transmitter Depth | 2.64" (67 mm) |
| Receiver Height | 1.02" (26 mm) |
| Receiver Width | 8.62" (219 mm) |
| Receiver Depth | 5.98" (152 mm) |
| Form Factor | Wall Plate |
| Transmitter Weight (Approximate) | 180 g |
| Receiver Weight (Approximate) | 870 g |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 8.46352E+11 |
| Limited Warranty | 10 Year |
