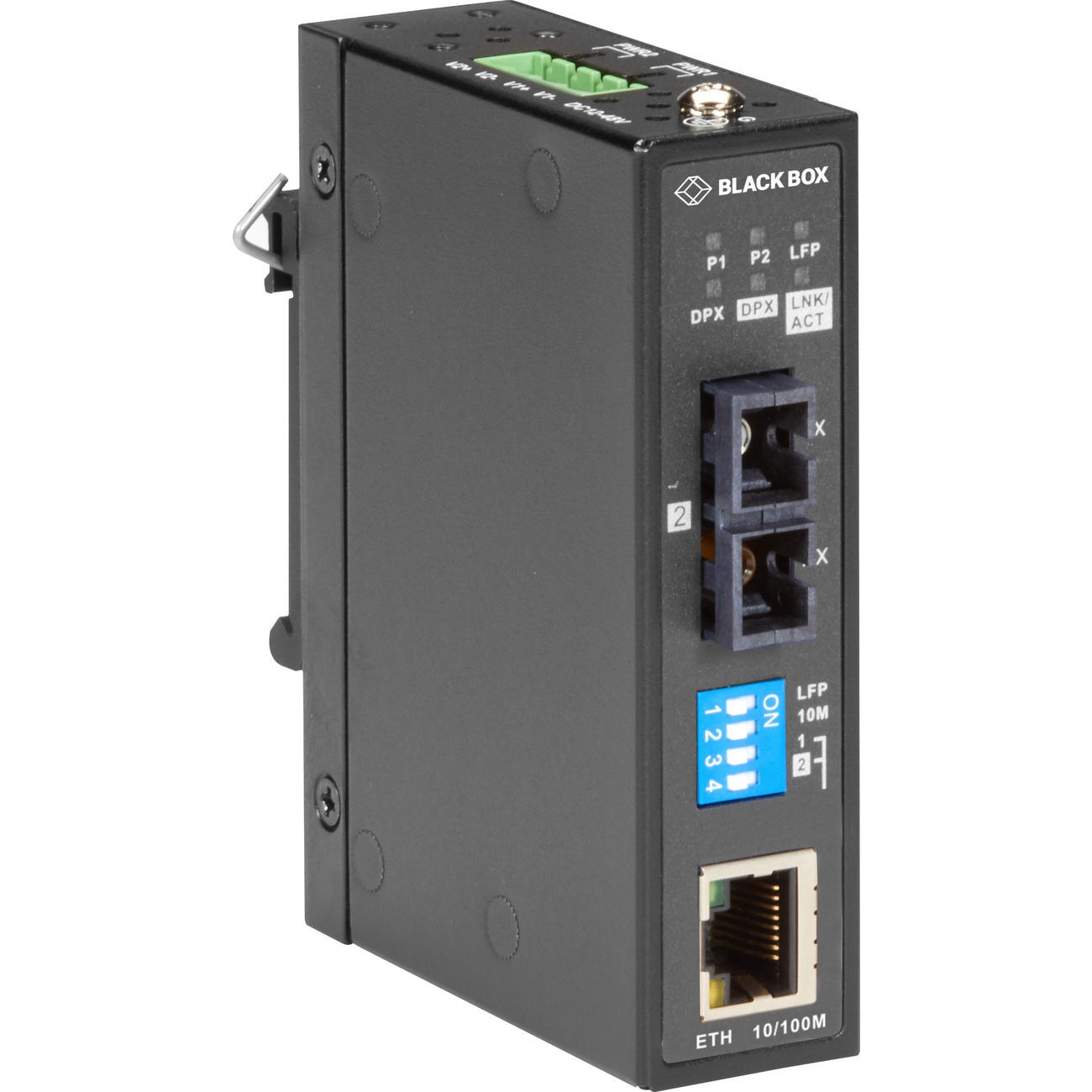

Black Box LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC

Part No. LMC282A

by Black Box Corporation

Black Box LMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC

1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Fast Ethernet - 10/100Base-T, 100Base-FX - 30 km (18.64 Mile) - DC - Rail-mountable, Wall Mountable

Part No. LMC282A

by Black Box Corporation

$342.99
General Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberLMC282A
Brand NameBlack Box
Product SeriesLMC280
Product NameLMC280 Series Fast Ethernet Industrial Media Converter - Single-Mode SC
Marketing Information

Extend Your Network with Fiber

The Fast Ethernet Industrial Media Converter provides a cost-effective way to add fiber to your existing network infrastructure. It converts 10/100Base-T(X) to 100BaseFX with ease. Additionally, this media converter supports MDI/MDIX auto detection, so you do not need to use crossover wires.

Designed for the Toughest Environments

This media converter provides consistent network performance in the harshest work environments on earth. It features rigid IP-30 housing, an operating temperature range of -40° to 158° F and has dual power inputs that each accept a wide voltage range (12 to 48 VDC).

Supports Link Fault Pass-Through

When one side of your network link fails, the other side continues transmitting packets and waits for a response that never arrives from the disconnected side. Link fault pass-through forces the active link to shut down as soon as it notices the other link has failed, giving the application software a chance to fix the issue. This maximizes the uptime of your network.

Product TypeTransceiver/Media Converter
Interfaces/Ports
Total Number of Ports2
Network (RJ-45)Yes
Number of Network (RJ-45) Ports1
Number of SC Ports1
SC Port TypeDuplex
Media & Performance
Media Type Supported
  • Twisted Pair
  • Optical Fiber
Fiber Mode SupportedSingle-mode
Fiber Optic Cable Wavelength1310 nm
Maximum Distance Supported30 km (18.64 Mile)
Network & Communication
Ethernet TechnologyFast Ethernet
Network Technology
  • 10/100Base-T
  • 100Base-FX
Power Description
Power SourceDC
Physical Characteristics
Form Factor
  • Rail-mountable
  • Wall Mountable
Height3.74" (95 mm)
Width1.03" (26.16 mm)
Depth2.76" (70.10 mm)
Weight (Approximate)7.68 oz (217.72 g)
Miscellaneous
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginTaiwan
TAA CompliantYes
ConditionNo
UPC822088143079
Warranty
Limited Warranty3 Year
