Black Box GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port

Part No. JPM612A-R8

by Black Box Corporation

$442.99

Black Box GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port

48 Port(s) - 48 x RJ-45 - 2U High - Rack-mountable

Part No. JPM612A-R8

by Black Box Corporation

$442.99

Specifications

General Information

Manufacturer	Black Box Corporation
Manufacturer Part Number	JPM612A-R8
Brand Name	Black Box
Product Line	GigaTrue
Product Name	GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port
Product Type	Network Patch Panel

Interfaces/Ports

Total Number of Ports	48
Number of Network (RJ-45) Ports	48

Physical Characteristics

Form Factor	Rack-mountable
Compatible Rack Unit	2U
Height	1.75" (44.45 mm)
Width	19" (482.60 mm)
Depth	1.25" (31.75 mm)
Weight (Approximate)	1.50 lb (680.39 g)

Miscellaneous

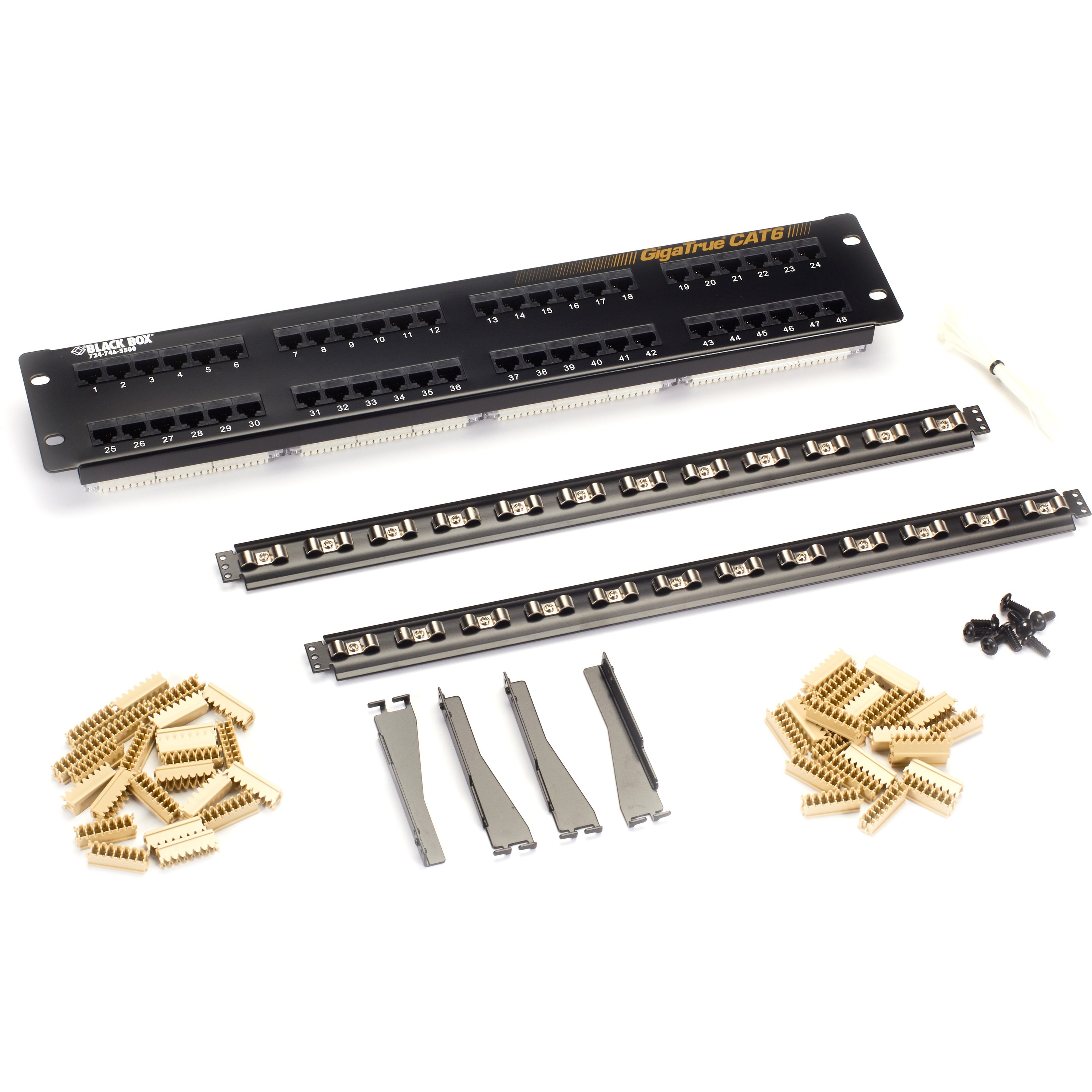

Package Contents	GigaTrue® CAT6 Patch Panel - 2U, Unshielded, 48-Port Cables Ties 4 x 10-32 4 x 12-24 Cup Heads Screws Stuffer Caps 1 x Cable Support Bar Manual
Additional Information	Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6 Includes cable management bars that make organization easier Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz Universal wiring - panel is supplied with labeling for both T568A and T568B Paired punchdown sequence enables pair twist within 1/2" of termination Redesigned IDC 110 block features peaks to make lacing cable easier Rolled-edge construction provides superior panel rigidity to eliminate flex during termination Includes cable ties and mounting hardware
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
TAA Compliant	Yes
Condition	No
UPC	822088143543

Warranty

Limited Warranty	Lifetime
