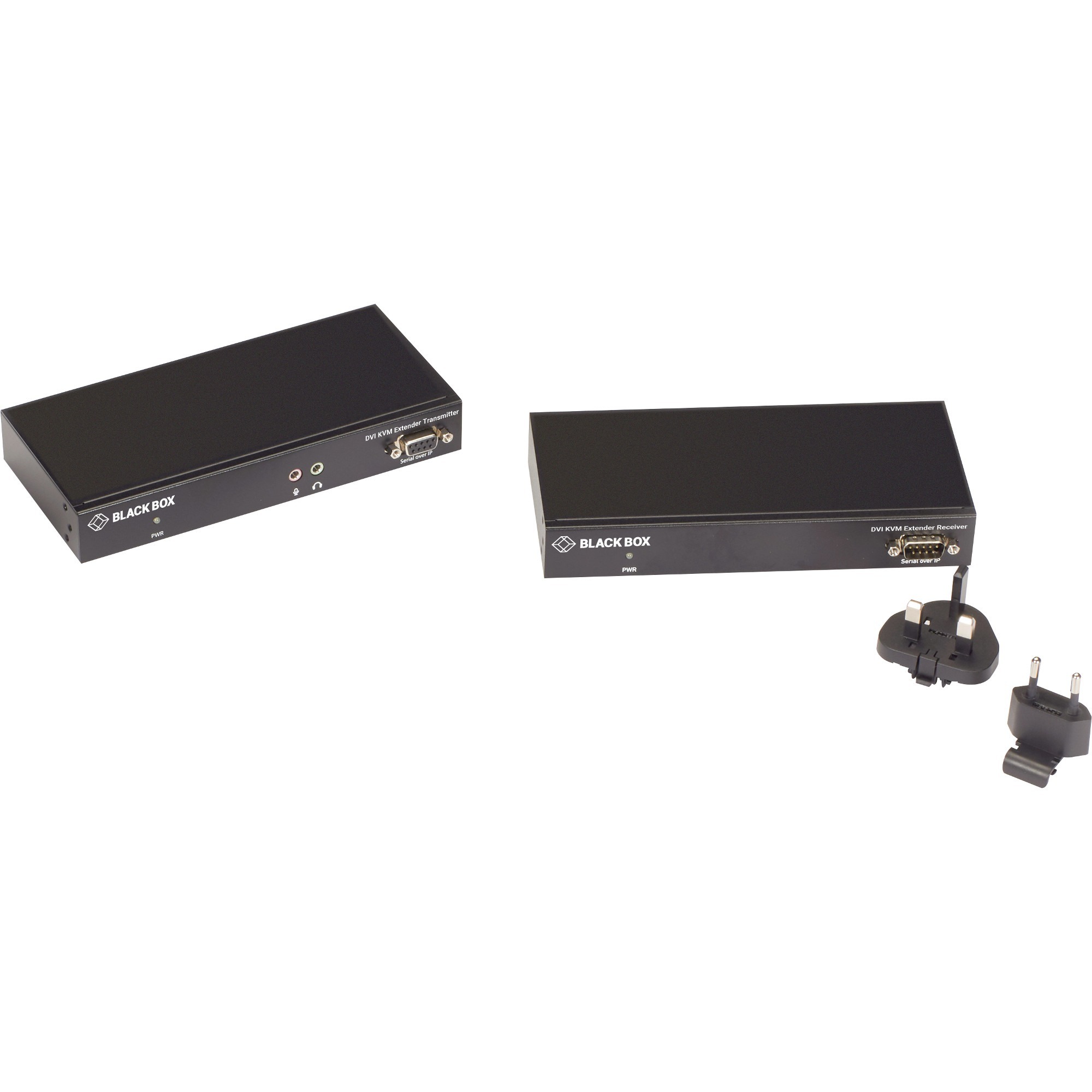

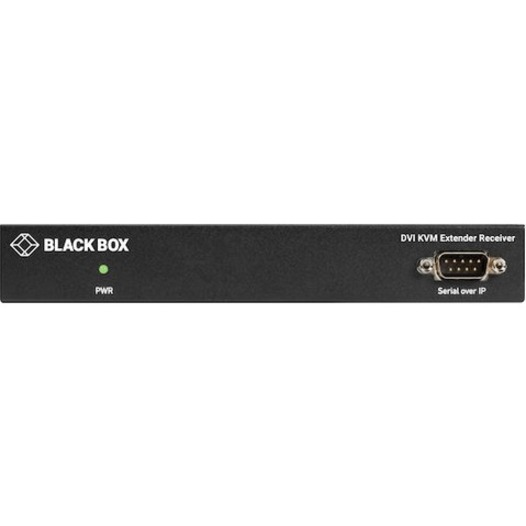

Black Box LC100 Series KVM Extender - DVI, Transmitter and Receiver, Fiber

Part No. KVXLCF-100

by Black Box Corporation

Black Box LC100 Series KVM Extender - DVI, Transmitter and Receiver, Fiber

1 Computer(s) - 1 Local User(s) - 98425.20 ft (30000000 mm) Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 5 x USB - 3 x DVI - 5 V DC Input Voltage - Desktop

Part No. KVXLCF-100

by Black Box Corporation

$904.99
General Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberKVXLCF-100
Brand NameBlack Box
Product SeriesLC100
Product ModelKVXLCF-100
Product NameLC100 Series KVM Extender - DVI, Transmitter and Receiver, Fiber
Marketing Information

The KVX DVI-I Single Head KVM Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box. If your connections require VGA extension, simply add a DVI to VGA converter such as VA-DVII-VGA or DVI to VGA converter cable such as EVNDVI01-0006.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVXLCF is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVXLCF also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX is TAA compliant and backed by free lifetime technical support.

KVXLCF is a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Product TypeKVM Extender
Technical Information
Connectivity TechnologyWired
Number of Computers Supported1
Number of Local Users Supported1
Maximum Operating Distance98425.20 ft (30000000 mm)
Device TypeKVM Extender
Video
Graphic ModeWUXGA
Maximum Video Resolution1920 x 1200

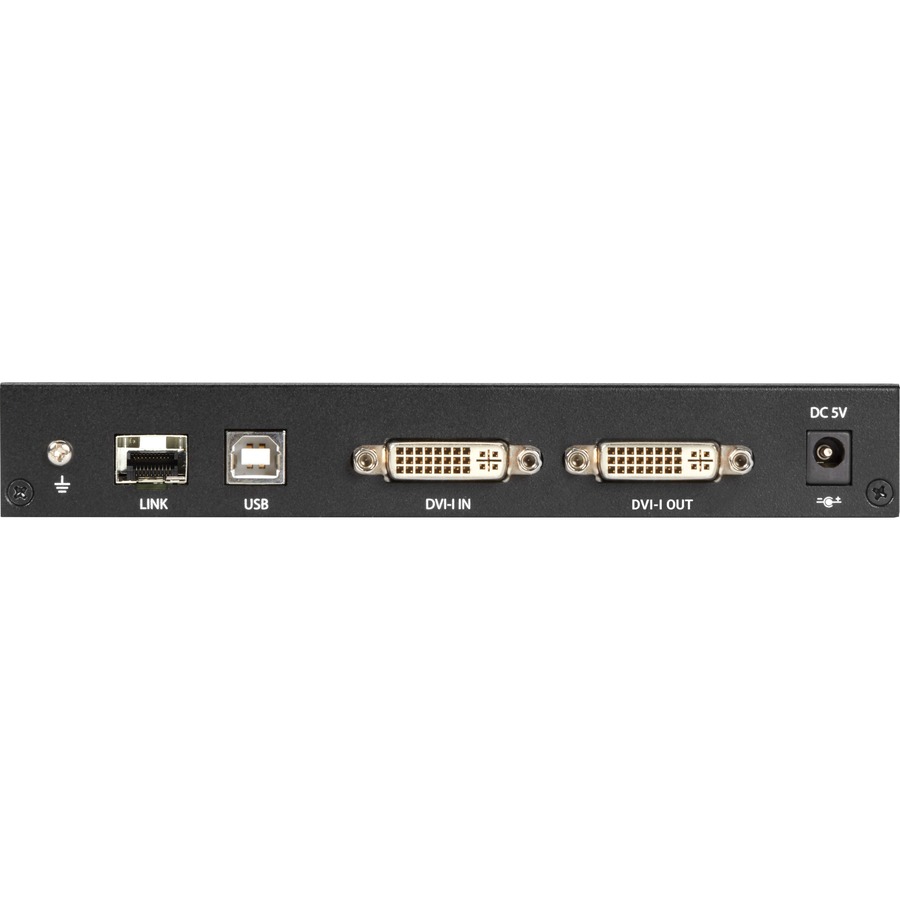

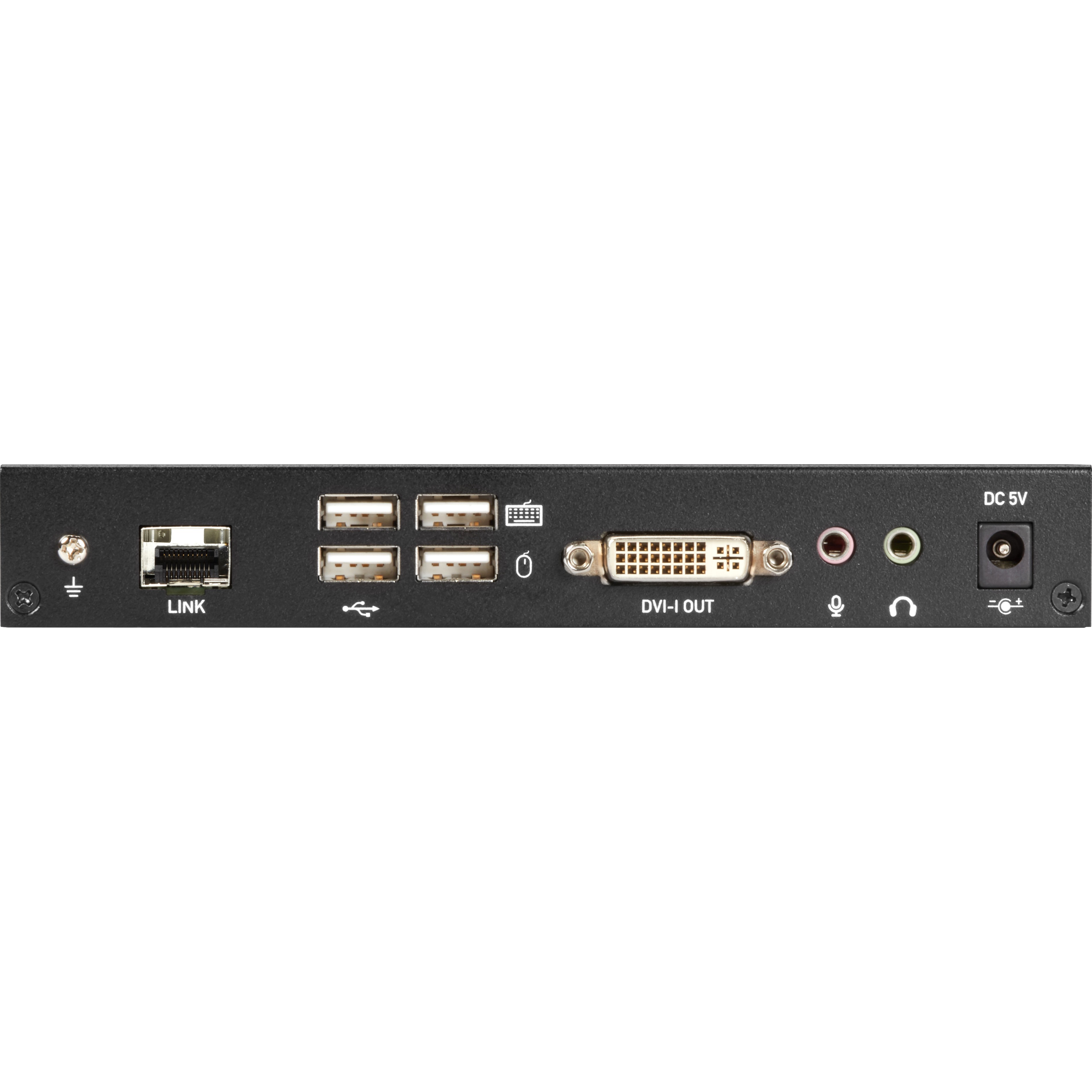

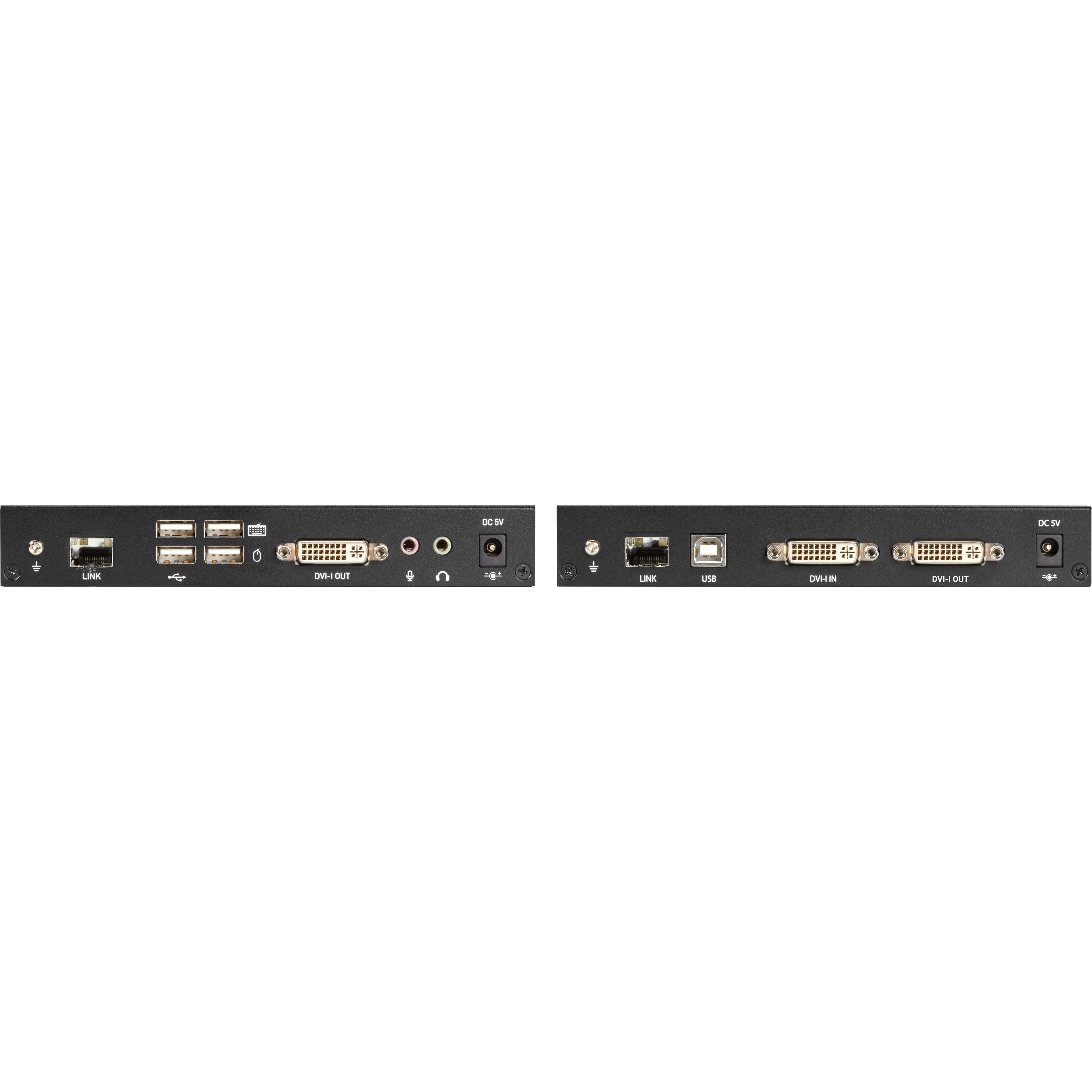

Interfaces/Ports
USBYes
DVIYes
HeadphoneYes
MicrophoneYes
Number of USB Ports5
Number of DVI Ports3
Power Description
Input Voltage5 V DC
Physical Characteristics
Form FactorDesktop
Transmitter Height1.06" (27 mm)
Transmitter Width7.09" (180 mm)
Transmitter Depth3.27" (83 mm)
Receiver Height1.06" (27 mm)
Receiver Width7.09" (180 mm)
Receiver Depth3.27" (83 mm)
Transmitter Weight (Approximate)350 g
Receiver Weight (Approximate)370 g
Miscellaneous
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
  • 1 x DVI-D Cable, M/M 1.8m (6 ft.)
  • 1 x USB Type A to B Cable, M/M 1.8m (6ft.)
  • 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
  • 2 x Deskmounting brackets (with screws)
Environmentally FriendlyYes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginTaiwan
TAA CompliantYes
ConditionNo
UPC822088132707
Warranty
Limited Warranty2 Year
