• 5 x Fast Ethernet ports
• 1Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-Rail mount and wall mount brackets
• Wide operating temperature range of -40° - 75° C (-40° - 167° F)
• Dual inputs provide redundant power with overload current protection
• Power supply sold separately (model: TI-M6024)
• Fanless design for silent operation
• Lifetime Warranty

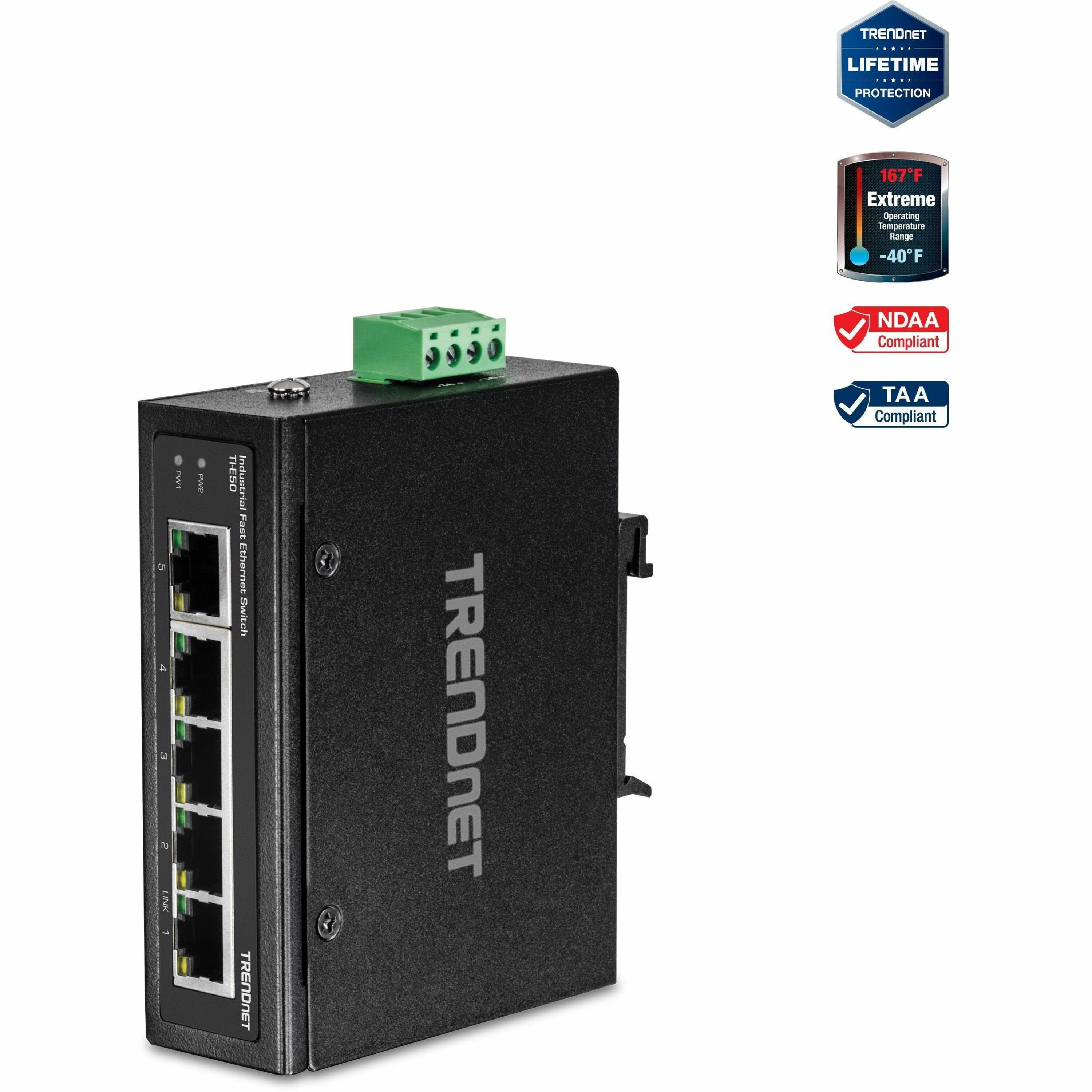

TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.

Easy Installation

No configuration needed, simply connect network devices to the industrial Ethernet switch.

Redundant Power

The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.

Industrial Hardened Design

Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F).

• Surge Protection
• Fanless

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x

• 12 V DC
• 56 V DC

• DIN Rail Mountable
• Wall Mountable

• 5-Port Industrial Fast Ethernet DIN-Rail Switch
• Removable Terminal Block
• DIN-Rail / Wall Mount Kit

• CE
• FCC
• LVD
• Shock (IEC 60068-2-27)
• Freefall (IEC 60068-2-32)
• Vibration (IEC 60068-2-6)
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
