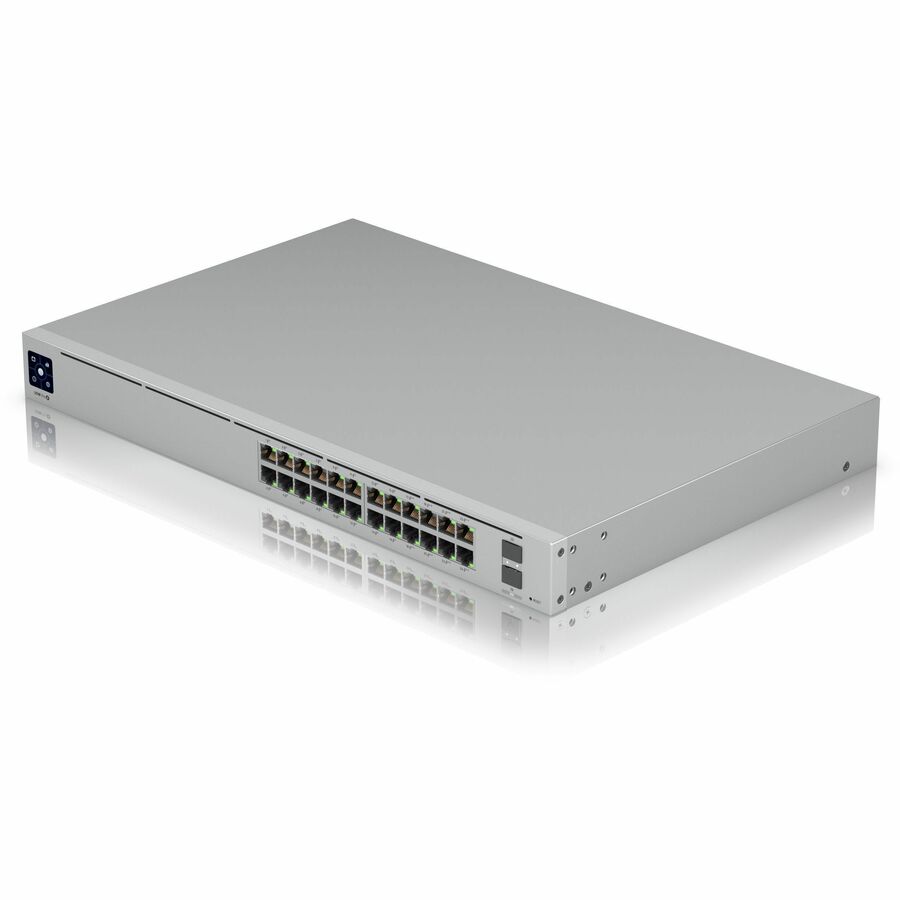

Ubiquiti USW-Pro-24-POE Layer 3 Switch
24 Ports - Manageable - 3 Layer Supported - Modular - 50 W Power Consumption - 400 W PoE Budget - Optical Fiber, Twisted Pair - 1U - Rack-mountable - 1 Year Limited Warranty
$999.00
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-PRO-24-POE |
| Brand Name | Ubiquiti |
| Product Model | USW-Pro-24-POE |
| Product Name | USW-Pro-24-POE Layer 3 Switch |
| Marketing Information | Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality. Near-Silent Cooling The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience. Fiber Connectivity SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. 802.3bt PoE++ PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE. Redundant Power Option The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails. |
| Product Type | Layer 3 Switch |
Interfaces/Ports
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details |
|
Media & Performance
| Media Type Supported |
|
| Ethernet Technology |
|
| Network Technology |
|
I/O Expansions
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
Network & Communication
| Layer Supported | 3 |
Management & Protocols
| Manageable | Yes |
Power Description
| PoE Budget | 400 W |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 50 W |
Physical Characteristics
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.40 mm) |
| Depth | 11.24" (285.40 mm) |
| Weight (Approximate) | 9.48 lb (4300 g) |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Condition | No |
| UPC | 817882028349 |
Warranty
| Limited Warranty | 1 Year |
