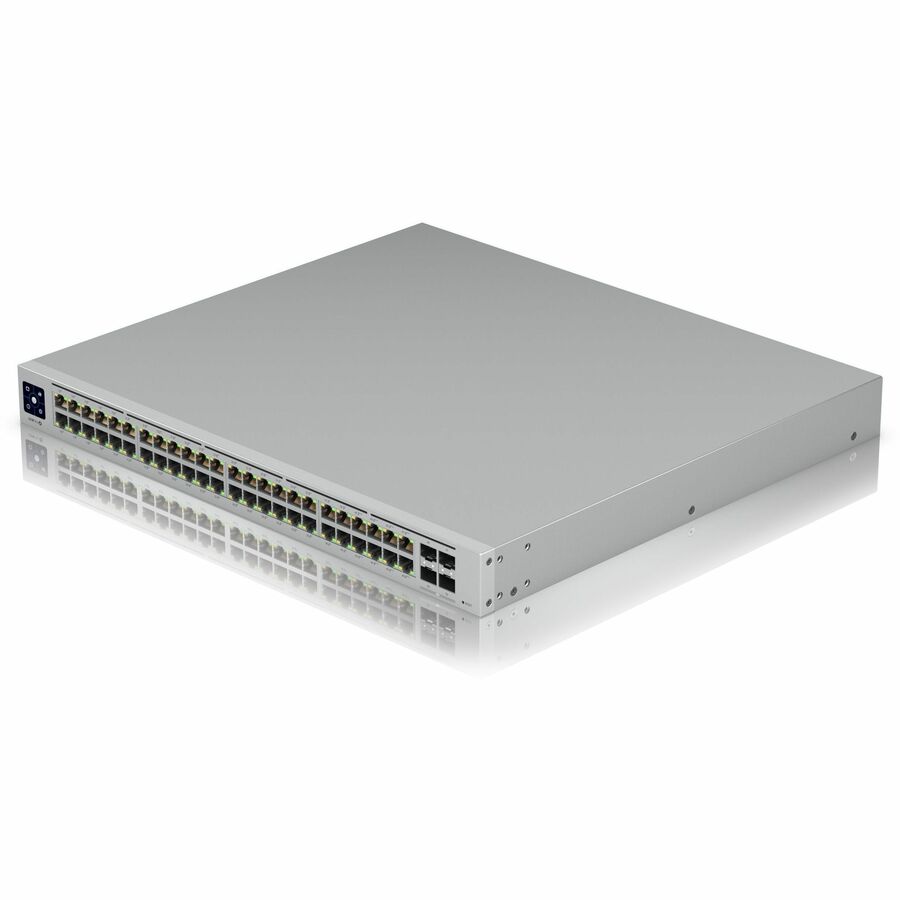

Ubiquiti USW-Pro-48-PoE Layer 3 Switch
In Stock Availability
- All Locations: (50+)
- Toronto, ON (50+)
| Manufacturer | Ubiquiti Inc. |
| Manufacturer Part Number | USW-PRO-48-POE |
| Brand Name | Ubiquiti |
| Product Line | UniFi Pro PoE |
| Product Model | USW-Pro-48-PoE |
| Product Name | USW-Pro-48-PoE Layer 3 Switch |
| Marketing Information | Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
Layer 3 Features In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality. Near-Silent Cooling The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience. Fiber Connectivity SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch. 802.3bt PoE++ PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE. Redundant Power Option The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails. |
| Product Type | Layer 3 Switch |
| Total Number of Network Ports | 48.0 |
| Uplink Port | Yes |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details |
|
| Media Type Supported |
|
| Ethernet Technology |
|
| Network Technology |
|
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Layer Supported | 3 |
| Networking Standards |
|
| Manageable | Yes |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 600 W |
| Input Voltage |
|
| Frequency |
|
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Power Consumption | 60 W |
| Product Material | Galvanized Cold Rolled Steel (SGCC) |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.70 mm) |
| Width | 17.42" (442.40 mm) |
| Depth | 15.73" (399.60 mm) |
| Weight (Approximate) | 13.78 lb (6250 g) |
| Package Contents |
|
| Application/Usage | Network |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Condition | No |
| UPC | 817882028356 |
| Limited Warranty | 1 Year |
