• Secure access to IT equipment with RS-232 and USB console ports
• Access devices via Telnet/SSH or a Web browser-based console client without any proprietary software.
• Leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact.
• Connect in-band with dual Gigabit Ethernet or Wi-Fi and through out-of-band connections including dial-up or cellular connectivity.
• Various configurations all you to deploy what you need at each location, up to 8 ports: RJ-45 serial or serial USB.

• 9 V DC
• 30 V DC

• Enterprise-grade security
• Secure Sockets Layer(TLS v1, v1.1,v1.2)
• Packet filtering (firewall)
• Per port user permissions
• Configurable user/group rights
• Remote authentication: LDAP/AD, RADIUS, Kerberos, TACACS+, NIS
• Local username/password
• NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197
• FIPS 140-2 compliant cryptography (Certificate #1878)

Serial Device Port Access:

• Software programmable reversible pinouts on device ports
• Telnet/SSH to EMG command line interface
• Telnet/SSH/RAW-TCP direct to an IP address
• HTML5 support for Java-free web terminal SSH access to console ports
• Multiple Telnet/SSH sessions
• Simultaneous user access to the same console port
• Customizable multi-level user menus
• RJ45 and/or USB device ports
• Automatic port-initiated connections to a network host or outbound SSH connections to neighboring equipment
• Enable CLI terminal logins from any device port
• SD card and USB

Data Capture and Notification:

• Port buffering-256 KB per port
• Port logging to local files, syslog, USB
• thumb drive, SD card, and NFS share
• System, audit and port logging
• Event notification via email, SNMP or Syslog entry
• Character string recognition

Management:

• Quick setup and configuration web interface (TLS)
• CLI setup script
• CLI (Telnet, SSH, WebTerminal or direct console port access)
• SNMP (MIB II) -v1, v2, v3 compatible, custom MIBs
• RPM (remote power management) feature to control and monitor industry leading PDU & UPS devices
• Active user list display, port monitoring and timeout
• Diagnostics and port status counters
• Performance monitoring utility
• Packet generation utility
• Network trace utility
• Digital I/O inputs and special integration with Sensorsoft environmental sensors
• Local subnet search for other Lantronix console manager solutions
• Maximum 15 users per device port

Additional Protocols Supported:

• DHCP and BOOTP for dynamic IP address assignment
• NTP for time synchronization
• FTP, TFTP, SFTP, SCP client for file transfers
• DNS IP address name resolution
• SSH, TLS, SSL, Telnet and TCP for connections in/out of every device port, UDP, PPP with PAP/CHAP, NFS and CIFS for data storage
• StrongSwan IPsec VPN client
• RIP and RIPv2
• IPv6 Addressing supported

Interfaces:

• RS232 Serial 4-Port, LTE APAC Cellular

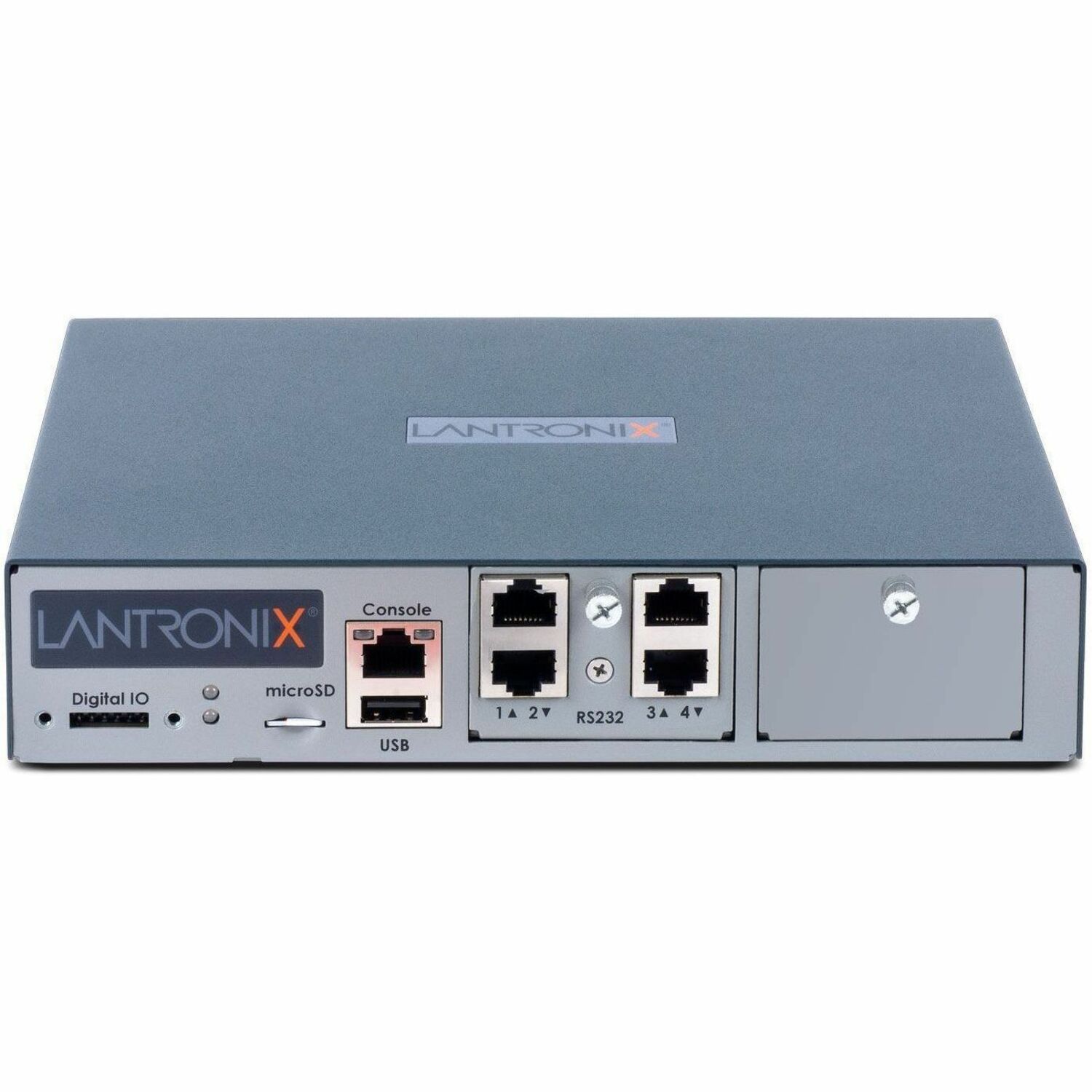

• Front Panel: USB Host port, microSD/SDHC slot, RS-232 console

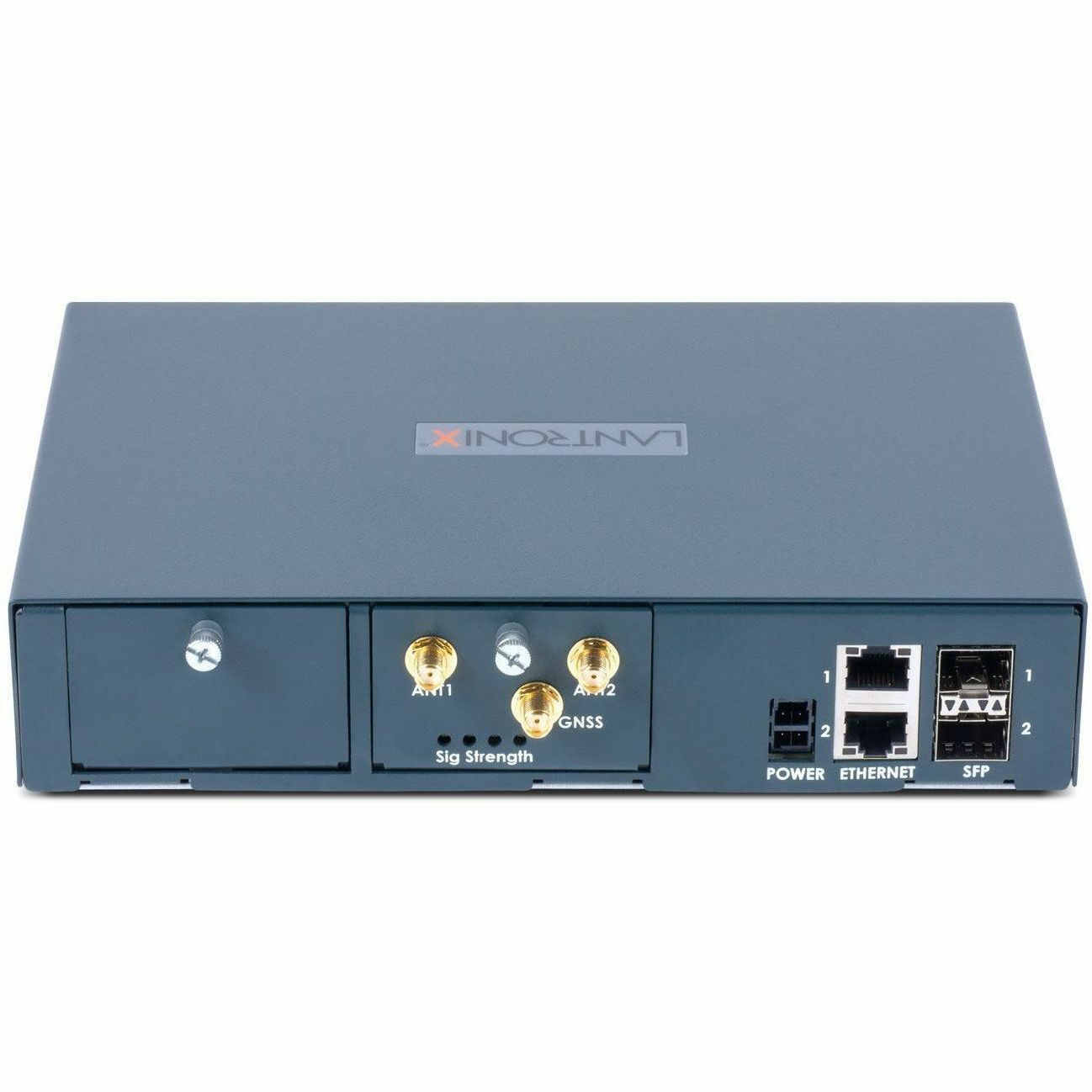

• Back Panel: Dual Gb Ethernet or Dual Gb fiber SFP ports
• Back Panel: Two (2) customer replaceable connectivity module slots for LTE/4G cellular, Wi-Fi, or dial up modem out-of-band options

• 1 GB Internal NAND Flash
• 1 GB Internal DRAM
• Internal Storage: 128GB Flash (optional)
• External Storage: microSD slot for up to 128 GB Flash
