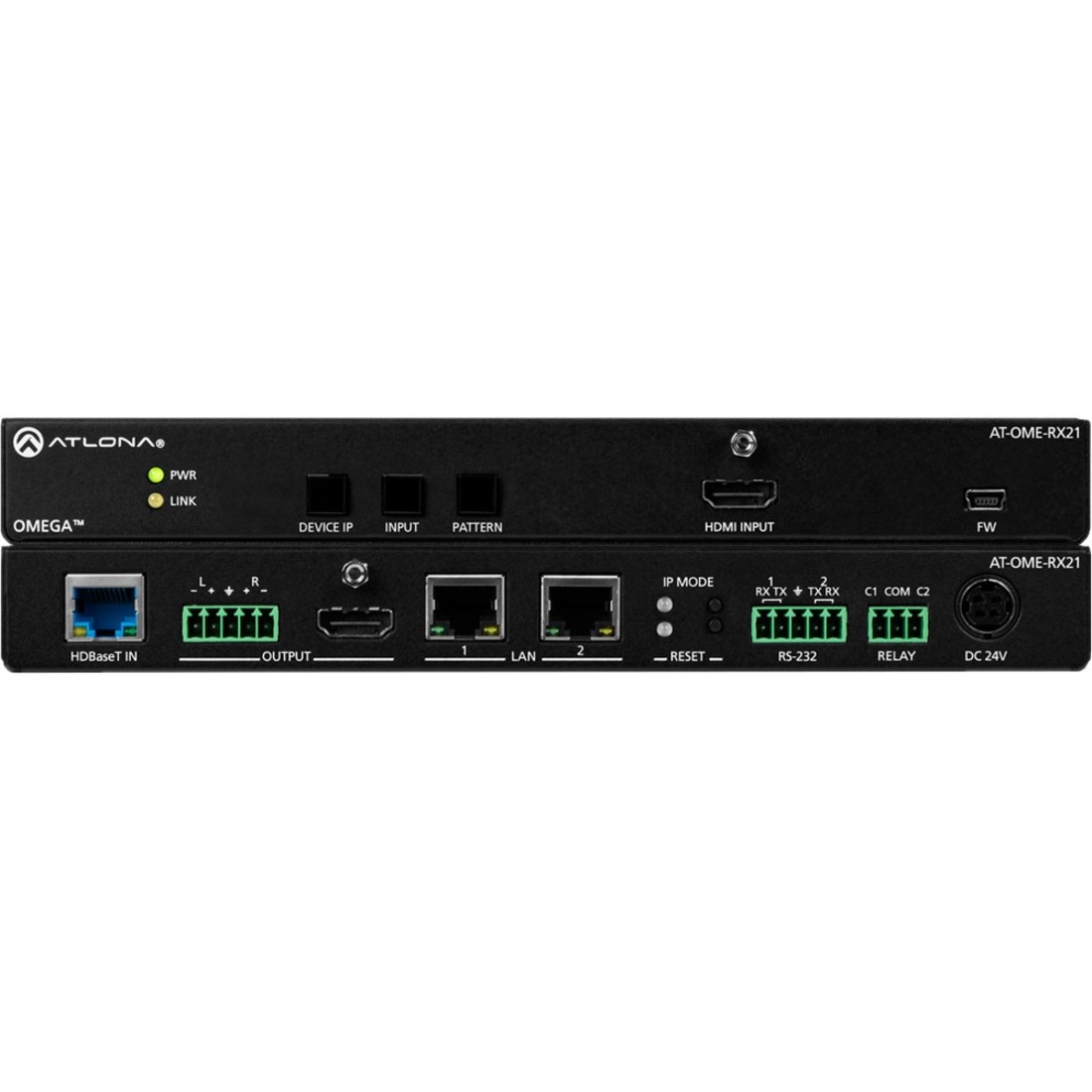

Atlona Scaler for HDBaseT and HDMI
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-RX21 |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Model | AT-OME-RX21 |
| Product Name | Scaler for HDBaseT and HDMI |
| Marketing Information | An HDBaseT Receiver for 4K and Collaboration. 4K upscaling and downscaling. Seamlessly incorporate 4K and HD into any system. Compact form factor. Small and easily mountable onto surfaces. Display control and automation. Effortless system operation with no user intervention. Additional Features The Atlona AT-OME-RX21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-RX21 receives HDBaseT for video, control, and Ethernet. Local HDMI input included This HDBaseT receiver includes an additional HDMI input - a convenience whenever there's a PC or wireless collaboration gateway to be installed near the display. Two-port network switch This is a simple but integration-friendly feature that lets you interface IP control between an AV LAN (or control processor), the display, and an upstream AV switcher over HDBaseT. Audio de-embedding The OME-RX21 features analog balanced stereo output, for de-embedding two-channel audio from any source and delivering to a sound system. A five-band EQ is included to fine-tune the audio. Internal test patterns Three internally generated test patterns are available to facilitate display setup, validate system performance, and provide a quick signal source for troubleshooting cabling or display issues. |
| Product Type | Video Extender Receiver |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 330 ft (100584 mm) |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Receiver Height | 1.02" (25.91 mm) |
| Receiver Width | 8.62" (218.95 mm) |
| Receiver Depth | 5.98" (151.89 mm) |
| Receiver Weight (Approximate) | 890 g |
