Black Box - Fiber Optic A/B Switch - Latching, SC Multimode Remote Control, Dry Contact

Part No. SW1043A-MM

by Black Box Corporation

$2626.99

On back-order, will ship once in-stock

  • All Locations: (0+)

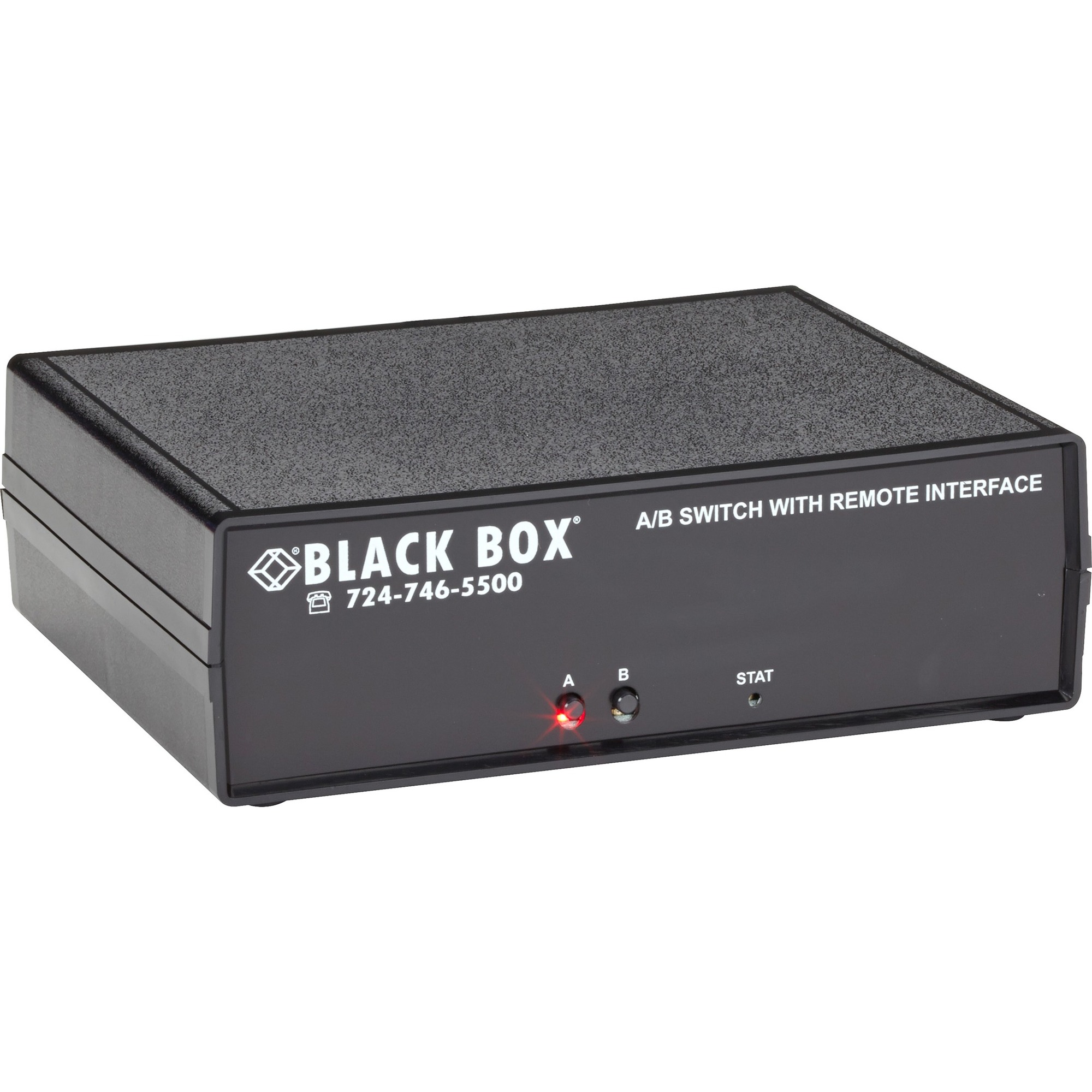

Black Box - Fiber Optic A/B Switch - Latching, SC Multimode Remote Control, Dry Contact

- SwitchingTAA Compliant

Part No. SW1043A-MM

by Black Box Corporation

$2626.99

On back-order, will ship once in-stock

  • All Locations: (0+)

General Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberSW1043A-MM
Brand NameBlack Box
Product NameFiber Optic A/B Switch - Latching, SC Multimode Remote Control, Dry Contact
Marketing Information
  • Durable and reliable. Tested to 1,000,000 cycles
  • Manual control of the switch port supported through A/B push button on the front.
  • an be switched remotely via dry contact as well.
Product ConditionNew
Product TypeFiber Optic Switchbox
Power Description
Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Height2.50" (63.50 mm)
Width6.25" (158.75 mm)
Depth8.10" (205.74 mm)
Weight (Approximate)4 lb (1814.37 g)
Miscellaneous
Additional Information
  • Data Rate Greater than 10 Gbps
  • Insertion Loss (Maximum) Less than 2 dB
  • Operating Wavelength 800 to 1600 nm
  • Optical Crosstalk Less than -45 dB
  • Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 5 VDC
  • Switching Speed Typical: 5 msec; Maximum: 10 msec

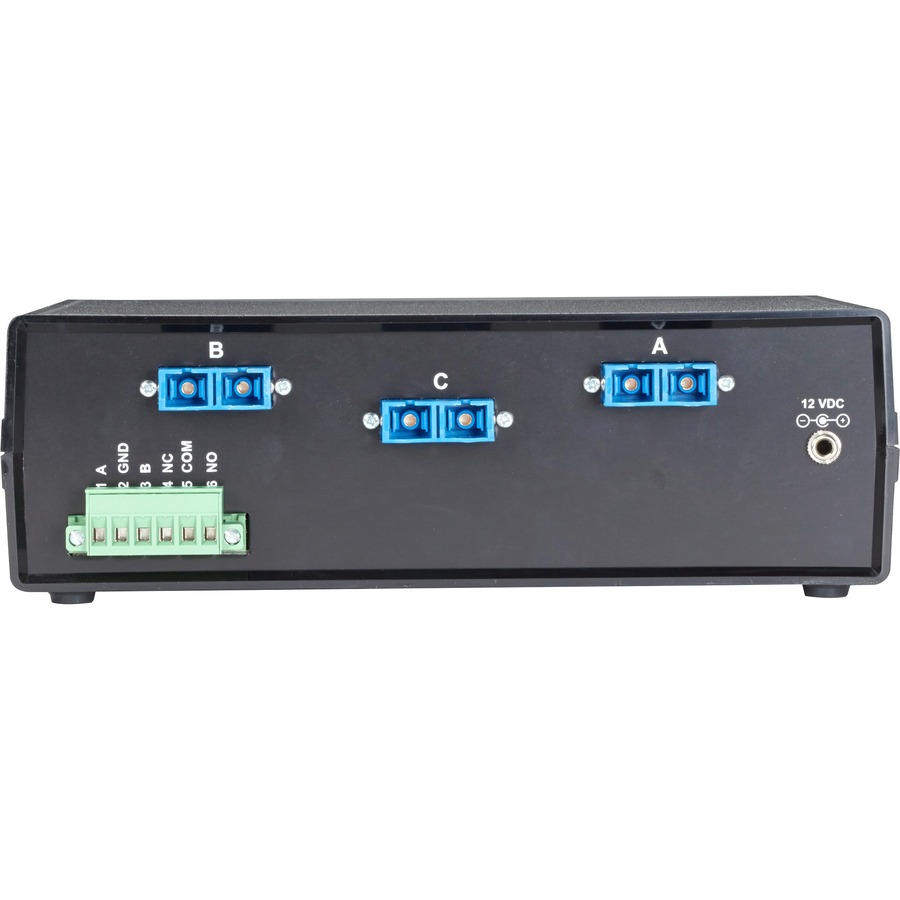

Connectors:
  • A/B switch ports: (3) SC
  • Remote control/status port: (1) 6-position terminal block
  • Power: (1) 2.1 x 5.5-mm power input
Certifications & Standards
  • CE
  • FCC
Country of OriginUnited States
TAA CompliantYes
ConditionNo
Warranty
Limited Warranty1 Year
