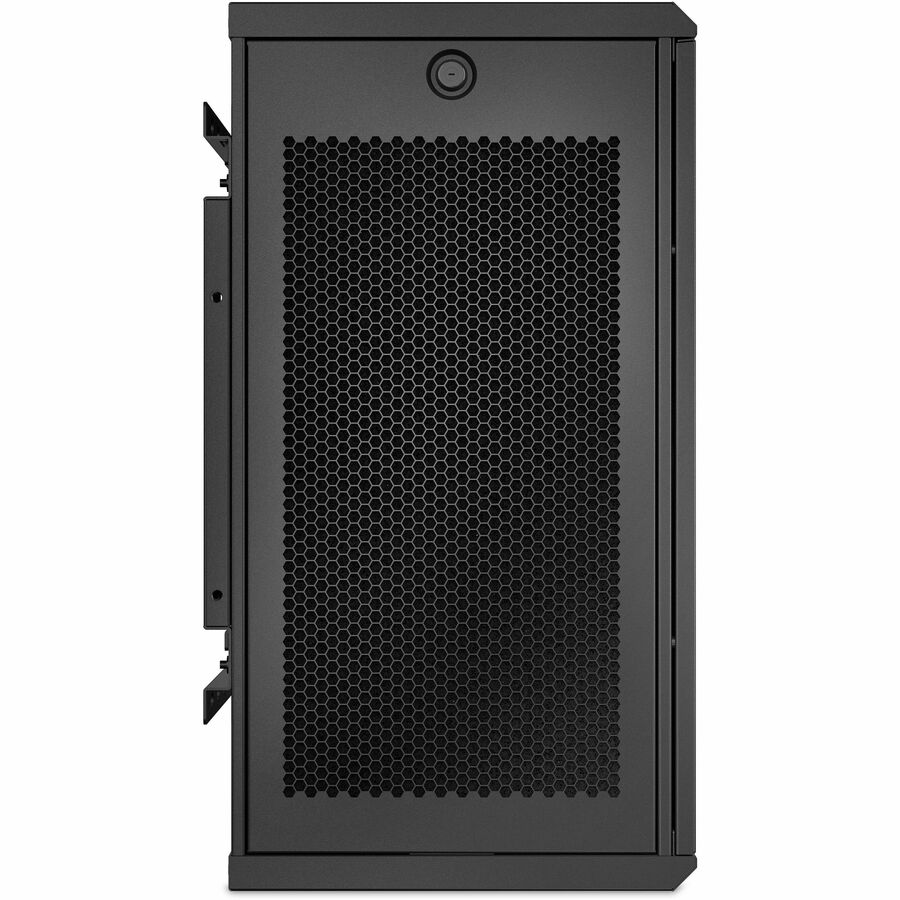

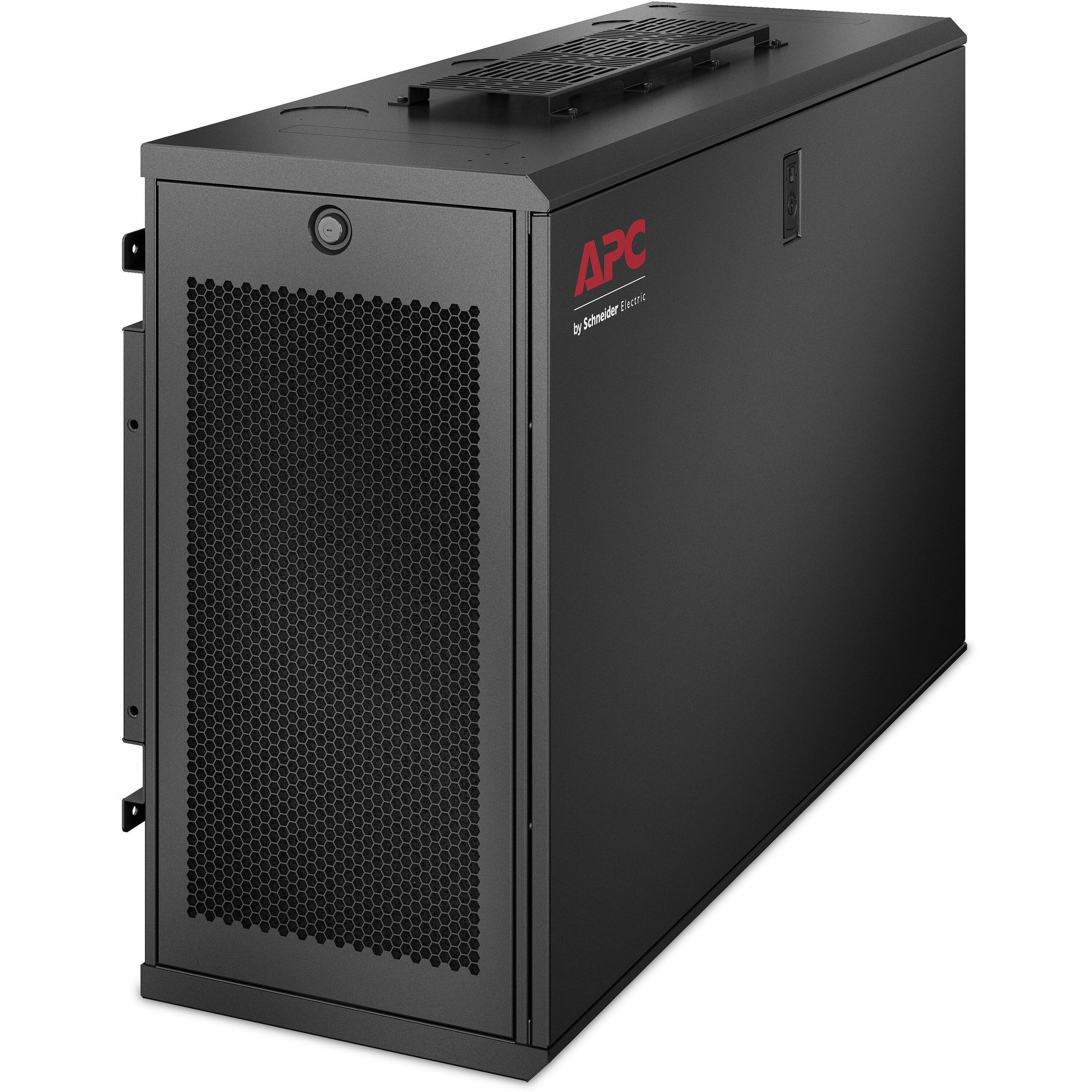

APC by Schneider Electric NetShelter WX 6U Low-Profile Wall Mount Enclosure 120V Fans
On back-order, will ship once in-stock
- All Locations: (0+)
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AR106V |
| Brand Name | APC by Schneider Electric |
| Product Line | NetShelter WX |
| Product Name | NetShelter WX 6U Low-Profile Wall Mount Enclosure 120V Fans |

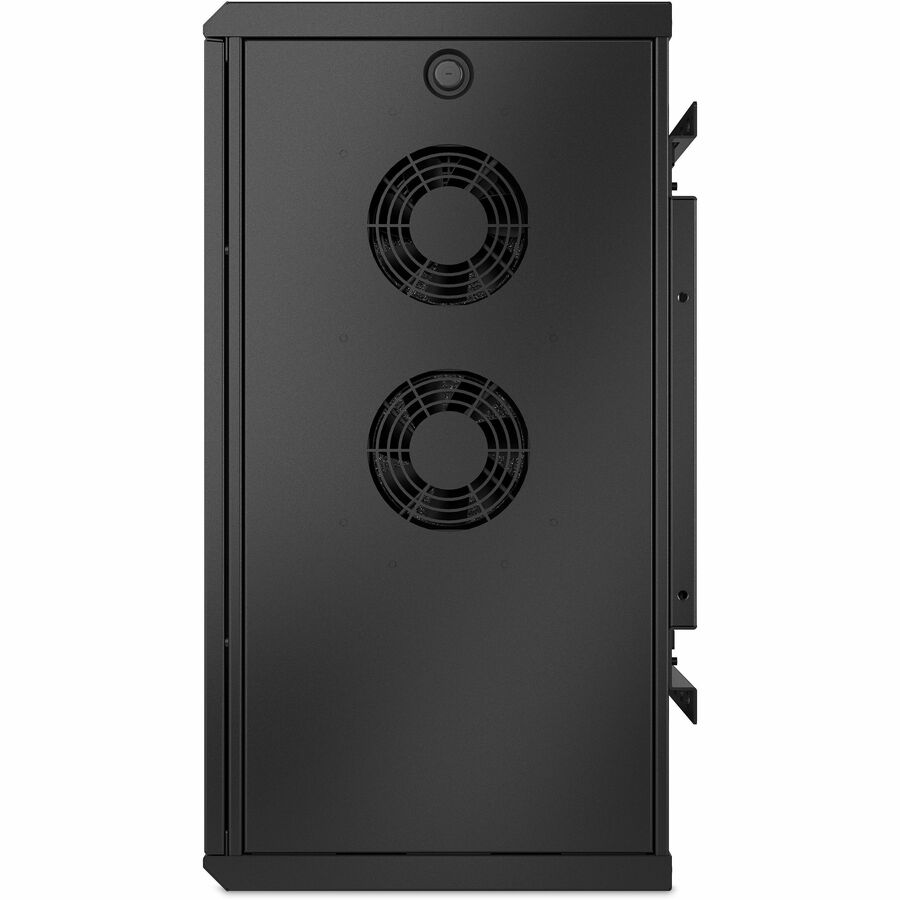

| Marketing Information | APC by Schneider Electric 6U Wall-Mount is an innovative new way to deploy server and networking equipment at the edge. Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U vertical wall-mount cabinet, 30 in mounting depth, 250 lb weight capacity, 19" rack width, side panels for access to equipment, ships fully assembled, UL2416 Listed, MERV 5 dust filter and 120V integrated fans included. Input connector IEC 60320 C13 with 500VA - 1.5kVA output power capacity. |
| Product Type | Rack Cabinet |
| Application/Usage |
|
| Mounting Location | Vertical |
| Mounting Preference | No Preference |
| Plug/Connector Type | IEC 60320 C13 |
| Input Voltage |
|
| Form Factor | Wall Mountable |
| Color Family | Black |
| Product Color | Black |
| Dynamic/Rolling Weight Capacity | 250.53 lb (113640 g) |
| Static/Stationary Weight Capacity | 250.53 lb (113640 g) |
| Height | 25.51" (648 mm) |
| Width | 13.90" (353 mm) |
| Depth | 38.11" (968 mm) |
| Weight (Approximate) | 80.01 lb (36291.93 g) |
| Rack Height | 6U |
| Rack Width | 19" (482.60 mm) |
| Rack Depth | 30" (762 mm) |
| For Country/Region | United States |
| Compatibility |
|
| Certifications & Standards | Free of Substances of Very High Concern above the threshold |
| Assembly Required | No |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR109_ROHS_DECLARATION&p_FileName=AR109KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500385&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500385&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVPEP1512008_EN |
| REACH free of SVHC | Yes |
| Toxic Heavy Metal Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Condition | No |
| UPC | 0731304402022 |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 year repair or replace |
