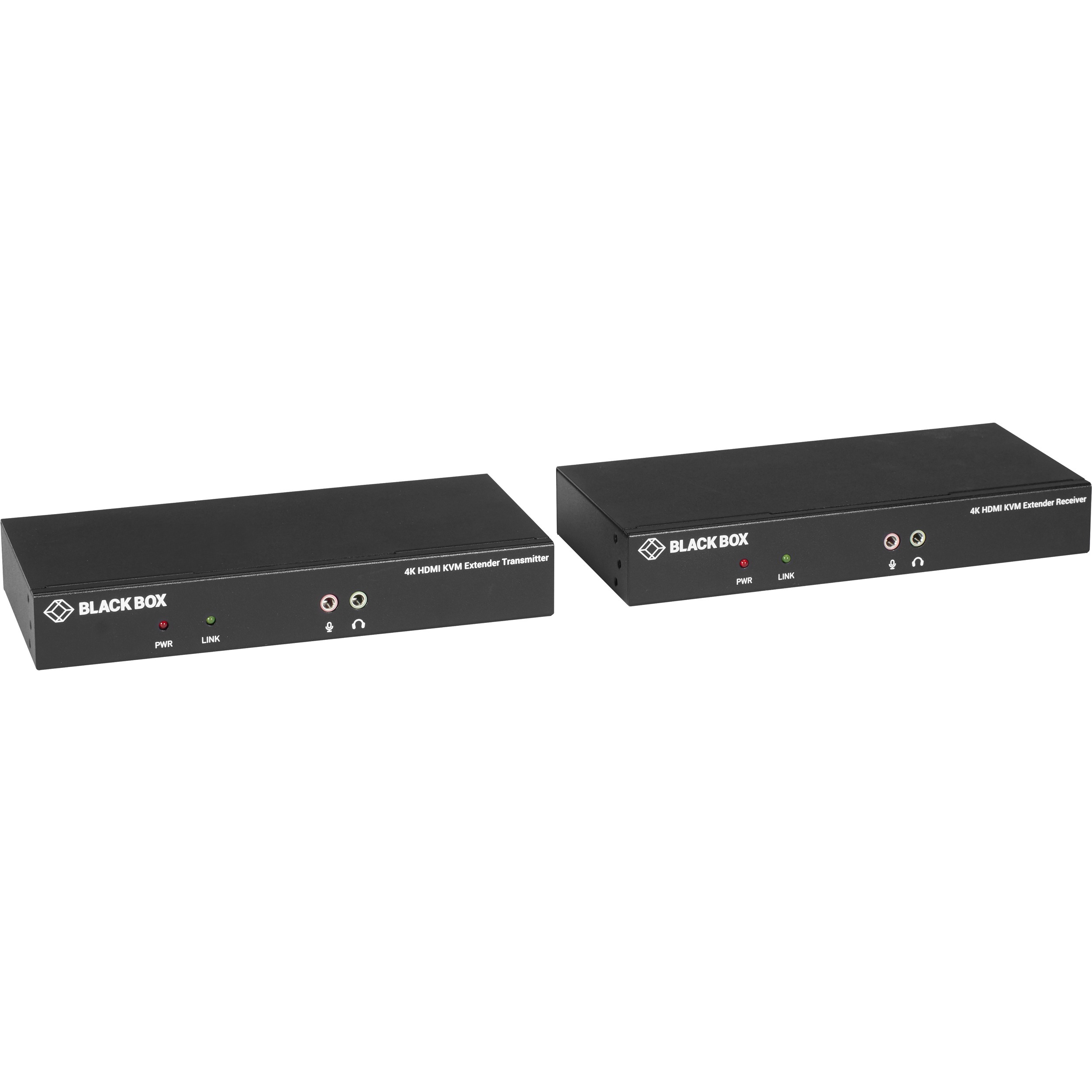

Black Box KVXLCHF-100 Video Extender Transmitter/Receiver

Part No. KVXLCHF-100

by Black Box Corporation

Black Box KVXLCHF-100 Video Extender Transmitter/Receiver

1 Input Device - 2 Output Device - 98425.20 ft (30000000 mm) Range - 5 x USB - 1 x HDMI In - 2 x HDMI Out - 4K UHD - 3840 x 2160 - Optical Fiber - Desktop

Part No. KVXLCHF-100

by Black Box Corporation

$895.99
General Information
ManufacturerBlack Box Corporation
Manufacturer Part NumberKVXLCHF-100
Brand NameBlack Box
Product SeriesKVX
Product ModelKVXLCHF-100
Product NameKVXLCHF-100 Video Extender Transmitter/Receiver
Marketing Information

The KVX HDMI/DisplayPort Single Head Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 30 km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant and backed by free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.

Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported2
Maximum Operating Distance98425.20 ft (30000000 mm)
Video
Graphics Modes4K UHD
Maximum Video Resolution3840 x 2160
Interfaces/Ports
HDMI InYes
HDMI OutYes
USBYes
Serial PortYes
Number of USB Ports5
Number of HDMI Inputs1
Number of HDMI Outputs2
Media & Performance
Media Type SupportedOptical Fiber
Physical Characteristics
Transmitter Height0.83" (21 mm)
Transmitter Width3.27" (83 mm)
Transmitter Depth7.09" (180 mm)
Receiver Height0.83" (21 mm)
Receiver Width3.27" (83 mm)
Receiver Depth7.09" (180 mm)
Form FactorDesktop
Transmitter Weight (Approximate)13.12 oz (371.95 g)
Receiver Weight (Approximate)13.28 oz (376.48 g)
Miscellaneous
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 5V, 2A Power Supplies (includes US, EU, UK plug types)
  • 1 x HDMI Cable, M/M 1.2m (4 ft.)
  • 1 x USB Type A to B Cable, M/M 1.8m (6 ft.)
  • 1 x 3.5mm Dual Audio / Mic Cable, M/M 1.8m (6 ft.)
  • 2 x Deskmounting brackets (with screws)
Country of OriginTaiwan
Environmentally FriendlyYes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
ConditionNo
UPC822088133681
Warranty
Limited Warranty2 Year
