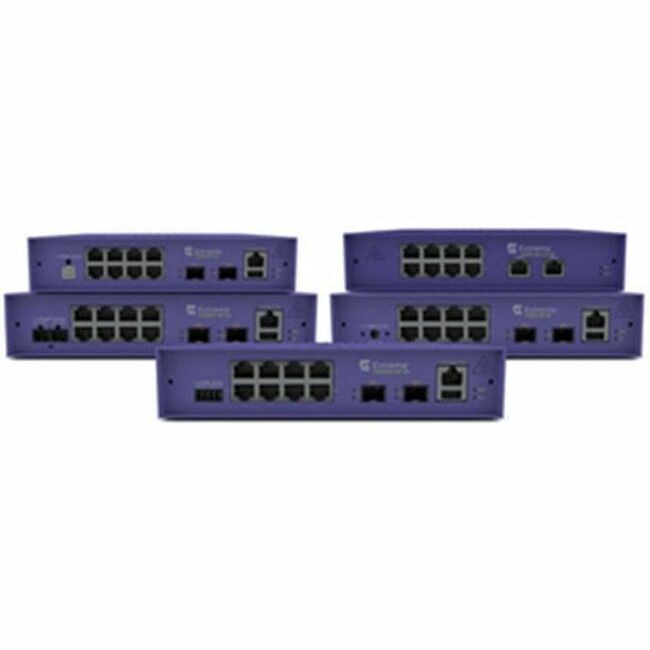

Extreme Networks V300HT-8P-2X Ethernet Switch

Part No. V300HT-8P-2X

by Extreme Networks, Inc

Extreme Networks V300HT-8P-2X Ethernet Switch

8 Ports - 2 Layer Supported - Modular - 213.30 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable

Part No. V300HT-8P-2X

by Extreme Networks, Inc

$513.99
General Information
ManufacturerExtreme Networks, Inc
Manufacturer Part NumberV300HT-8P-2X
Brand NameExtreme Networks
Product ModelV300HT-8P-2X
Product NameV300HT-8P-2X Ethernet Switch
Marketing Information

V300 Series

Cost-effective edge switches powered by ExtremeXOS

Part of Extreme's Extended Edge Switching solution

Seamless Unified Services

As an extension of the central ExtremeXOS aggregation switch, V300 edge devices/ports deliver the same network services and software features across the network. This simplifies service delivery and enables advanced features to be seamlessly extended to the network edge.

Simplified, Single Point of Management

V300 devices and ports are centrally configured and managed from the ExtremeXOS aggregation switch. This simplifies network operations and reduces overhead.

Plug and Play Installation

Once connected, the V300 automatically finds the central ExtremeXOS aggregation switch, downloads its configuration, and is ready to go. No need for local console set-up.

More features

  • 24 and 48-port Gigabit Ethernet models
  • All models include 2 or 4 x 10 Gigabit SFP+ uplinks
  • Available in IEEE 802.3at/af PoE+ versions
  • Cascading of up to 4 x V300 units off a single aggregation switch port
  • Redundant Power Supply (RPS) option
Product TypeEthernet Switch
Interfaces/Ports
Total Number of Network Ports8
Uplink PortYes
ModularYes
Port/Expansion Slot Details
  • 8 x Gigabit Ethernet PoE+
  • 2 x 10 Gigabit Ethernet Uplink
Media & Performance
Media Type Supported
  • Twisted Pair
  • Optical Fiber
Ethernet Technology
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 10GBase-X
I/O Expansions
Total Number of Expansion Slots2.0
Expansion Slot TypeSFP+
Number of SFP+ Slots2
Network & Communication
Layer Supported2
Power Description
Power SourcePower Supply
Redundant Power Supply SupportedYes
Power Consumption213.30 W
Physical Characteristics
Compatible Rack Unit1U
Form FactorRack-mountable
Height1.71" (43.43 mm)
Width8.27" (210.06 mm)
Depth7.68" (195.07 mm)
Weight (Approximate)3.25 lb (1474.175203 g)
connector cables (2)

Part No. 10304

Extreme Networks Network Cable - 3.3 ft Network Cable - First End: SFP Network

10 Gigabit Ethernet SFP+ passive cable assembly 1m length.

Part No. 10305

Extreme Networks 10305 Twinaxial Network Cable - 9.8 ft Twinaxial Network Cable - First End: SFP+ Network

10 Gigabit Ethernet SFP+ passive cable assembly 3m length.

modules (4)

Part No. 10070H

Extreme Networks 10/100/1000BASE-T SFP, Hi - 1 x RJ-45 10/100/1000Base-T LAN

10/100/1000BASE-T SFP module CAT5 cable 100m link RJ45-connector for Giga Bit Ethernet SFP Port Industrial Temp

Part No. 10051H

Extreme Networks 1000BASE-SX SFP, Hi - 1 x LC 1000Base-SX Network

1000BASE-SX SFP MMF 220 550 meters LC connector Industrial Temp

Part No. 10302

Extreme Networks 10GBASE-LR SFP+ Module - 1 x LC 10GBase-LR

10 Gigabit Ethernet SFP+ module, 1310nm, SMF 10km link, LC connector

mounting kits (4)

Part No. XN-2P-RMTKIT-2CS-001

Extreme Networks Rack Mount for Switch

Optional Two Post Rack Mount Kit for Two Compact Switches - side by side for a 19 Rack - V300

Part No. XN-DIN-MT-001

Optional DIN Rail Mounting Bracket for V300

Optional DIN Rail Mounting Bracket for V300

Part No. XN-2P-RMTKIT-1CS-001

Optional Two Post Rack Mount Kit for One Compact Switch 19 Rack V300

Optional Two Post Rack Mount Kit for One Compact Switch - 19 Rack - V300

Part No. XN-PS-MT-001

V300 PS Mounting Kit for Non-DIN PSs Supports V300 320W-HT 280W 40W-HT 40W Power Supplys

V300 PS Mounting Kit for Non-DIN PSs. Supports V300 320W-HT 280W 40W-HT 40W Power Supplys
