Get Things Done Faster with 10G

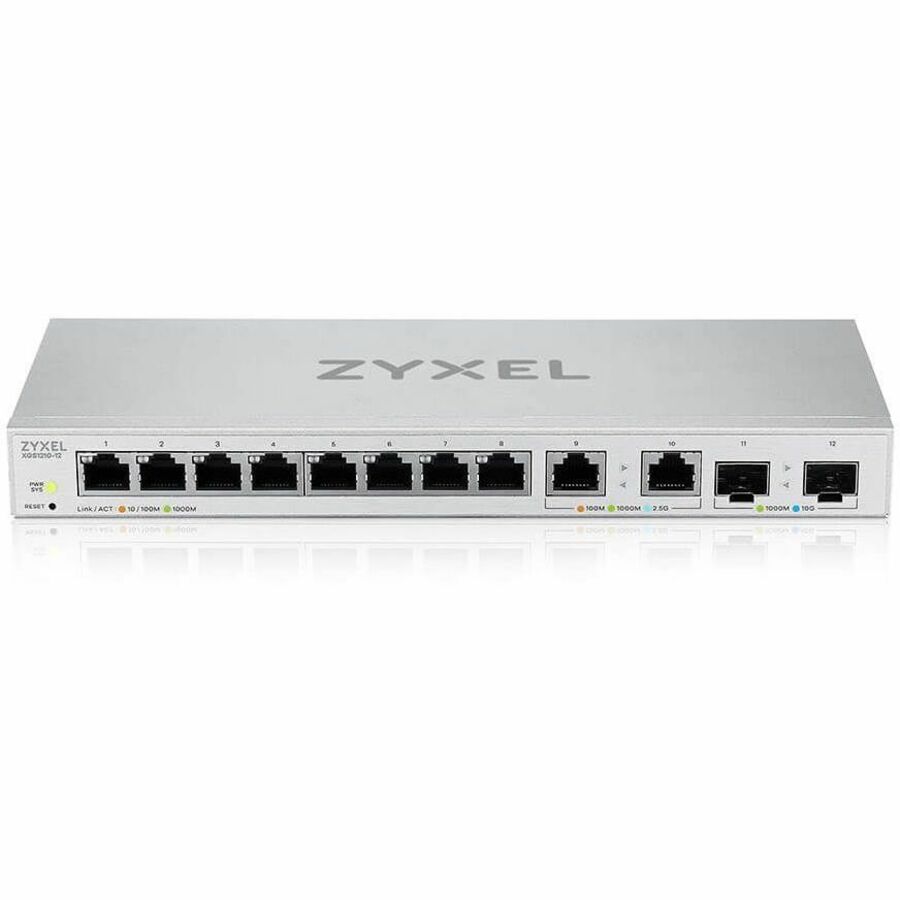

The Zyxel XGS1210-12 comes with two 10 Gigabit SFP+ uplink ports, two 2.5 Gigabit ports, and eight gigabit Ethernet ports. Connect 802.11ac or 802.11ax access points to the 2.5 Gigabit ports for true maximum wireless speed delivery. Deliver your data swiftly to your client devices from your NAS or other core networking essential with 10 Gigabit SFP+. Prioritize, limit, and/or protect your network traffic with its built-in Web GUI. Designed specifically for customers who want simple network management for their home or office.

10G Acceleration for All

The XGS1210-12 provides two SFP+ ports compatible with 10GbE which offers higher transmission speeds and allows customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.

Multi-Gigabit Speed Support

Support data transmission speed among 10G. 2.5G, 1G, and 100M, capable of servicing a range of network devices such as gaming laptops, desktops, workstations, servers, network attached storage (NAS) devices, or IEEE wireless access points.

Easy Web Management

XGS1210-12 comes with a user-friendly web-based interface setup that walks you through configuration and management quickly. It also walks you through setting up backups and firmware upgrades, ensuring that your network will perform reliably, so that you can get back to business.

QoS for better traffic control

QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a certain level of performance to a data flow.

VLAN segregation for enhanced network security

VLAN (virtual local area network) can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users.

Link Aggregation for increased throughput

XGS1210-12 combines up to four physical ports together to make a single high-bandwidth data path, for faster file transfers and enhanced connection reliability.

IGMP Snooping for optimized traffic delivery

Based on the Internet Group Management Protocol query and report messages, the switch forwards traffic only to the ports that request the multicast traffic rather than to all ports. It helps to optimize multicast performance and is especially useful for bandwidth-intensive IP multicast applications such as online media streaming and gaming.

Fanless, noiseless design

Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures silent operation and greater reliability over time with no moving parts.

Energy-Savings at Work

Built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.

Maximum Flexibility for Your Gig

Attempting to meet today's demand for more bandwidth, increasing expenditures, difficult deployments and other complex issues, the XGS1210-12 has been designed to overcome these challenges. Equipped with two 10GbE SFP+ ports, two 2.5GbE and eight Gigabit ports, XGS1210-12 offers additional flexibility for complex deployments and enables a hybrid high-speed network for homes or offices.

• 8 x Gigabit Ethernet Network
• 2 x 2.5 Gigabit Ethernet Network
• 2 x 10 Gigabit Ethernet Uplink

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

• 10/100/1000Base-T
• 2.5GBase-T
• 10GBase-X

• 12-Port Web-Managed Multi-Gigabit Switch with 2-Port 2.5G and 2-Port 10G SFP+
• Power Adapter
• Quick Start Guide
• Safety Warning and Doc
