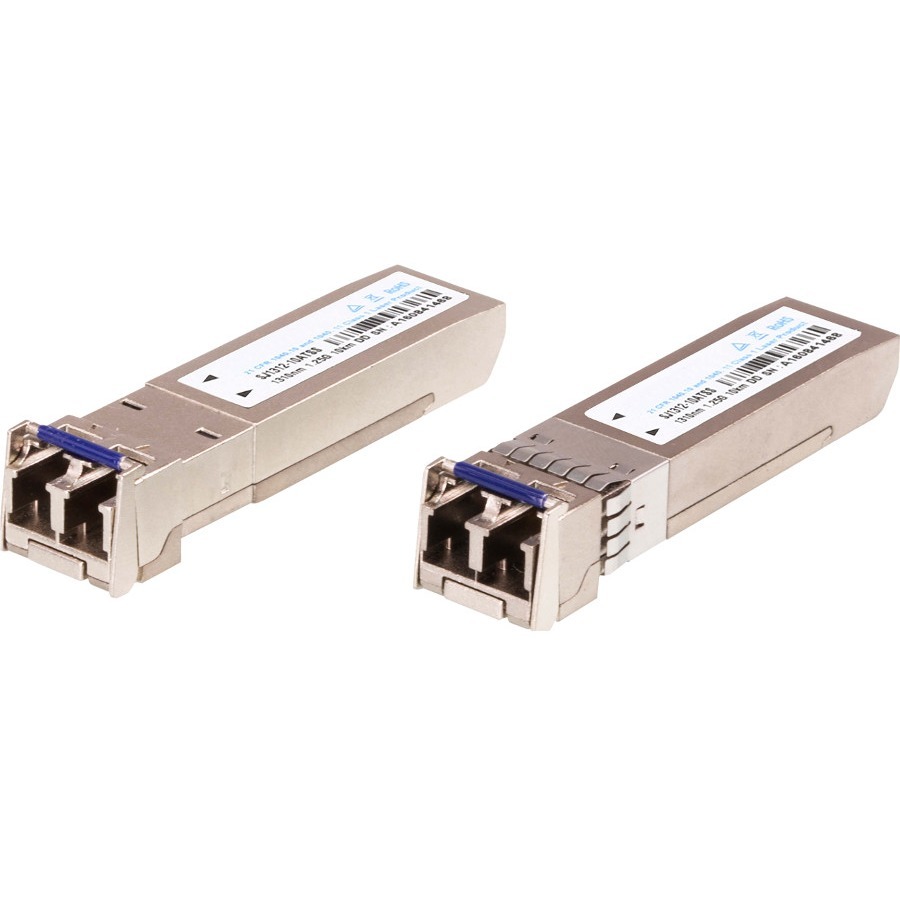

ATEN 10G Single-Mode/10KM Fiber SFP+ Module
For Data Networking, Optical Network - 1 x Duplex 10GBase-X Network - Optical Fiber - Single-mode - 10 Gigabit Ethernet - 10GBase-X - Hot-pluggable - 2
$397.99
On back-order, will ship once in-stock
- All Locations: (0+)
General Information
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | 2A-142G |
| Brand Name | ATEN |
| Product Model | 2A-142G |
| Product Name | 10G Single-Mode/10KM Fiber SFP+ Module |
| Marketing Information | The 2A-142G 10G Single-Mode/10KM Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a single-mode Gigabit Ethernet network cable to a network switch's SFP+ port. The 2A-142G provides 10GbE connectivity at distances up to 10 kilometers meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-142G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm. This makes the module a cost-effective and highperformance transceiver to significantly increase the span of a compatible network switch. |
| Packaged Quantity | 2 |
| Product Type | SFP+ |
Technical Information
| Application/Usage |
|
Interfaces/Ports
| Total Number of Ports | 1 |
| Interfaces/Ports Details | 1 x Duplex 10GBase-X Network |
Media & Performance
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
Physical Characteristics
| Form Factor | Hot-pluggable |
| Height | 0.51" (13 mm) |
| Width | 0.57" (14.60 mm) |
| Depth | 2.20" (55.90 mm) |
| Weight (Approximate) | 20 g |
Miscellaneous
| Compatibility | MSA Compliant |
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Condition | No |
| UPC | 672792011467 |
