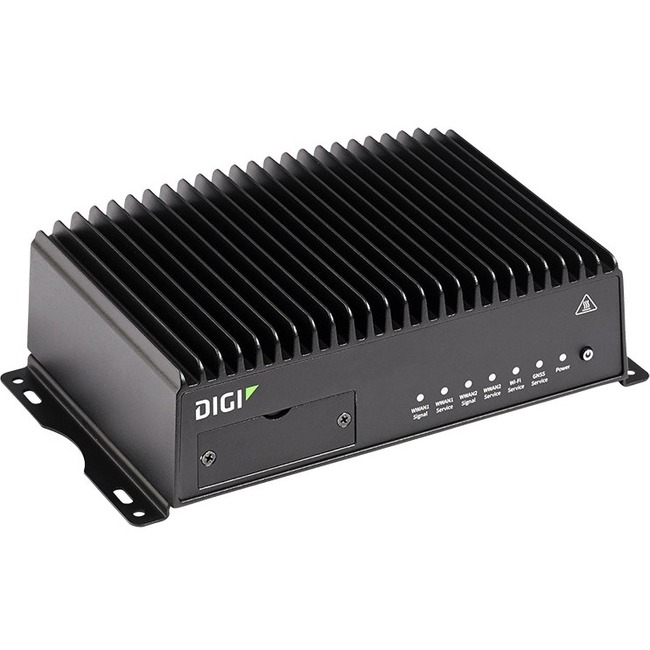

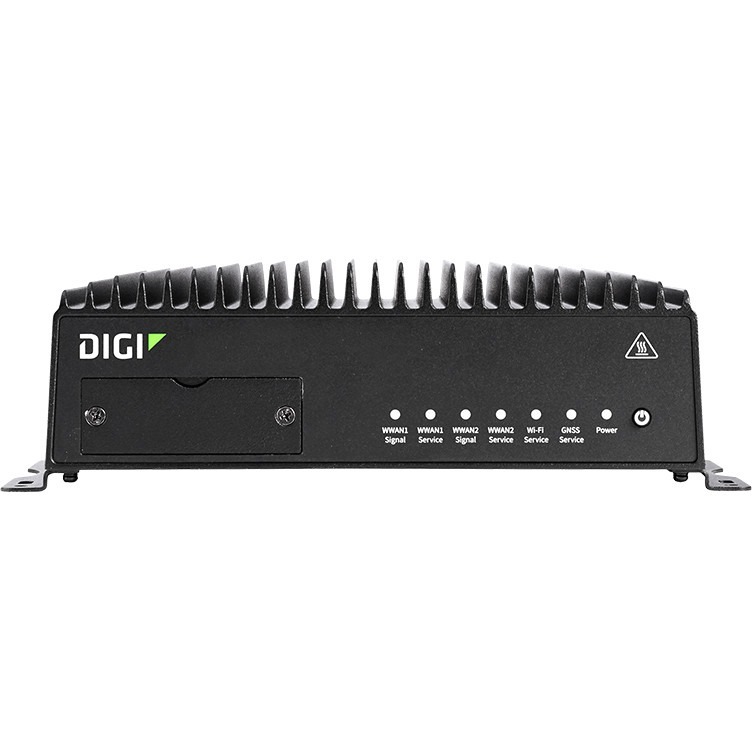

Digi TX54 Wi-Fi 5 IEEE 802.11ac 4 SIM Cellular, Ethernet Modem/Wireless Router

4G - LTE, HSPA+ - 2.40 GHz ISM Band - 5 GHz UNII Band - 108.38 MB/s Wireless Speed - 1 x Network Port - 3 x Broadband Port - USB - Gigabit Ethernet - VPN Supported - DIN Rail Mountable

Part No. TX54-A206

by Digi International

$2173.99

Specifications
Options & Accessories (3)

General Information

Manufacturer	Digi International
Manufacturer Part Number	TX54-A206
Brand Name	Digi
Product Model	TX54
Product Name	Dual Cellular / Dual Wi-Fi Mobile Access Router
Marketing Information	Rugged and secure cellular router for mission critical industrial and transportation applications, including models for public safety networks The versatility and performance of Digi TX54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. Digi TX54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity. Digi TX54 is available with dual Wi-Fi radios to segment passenger Wi-Fi from fare collection, data, video and other applications, and offers models with both single and dual LTEAdvanced or LTE-Advanced Pro cellular modules. Designed to meet the demands of first responders, Digi TX54 includes concurrent and independent dual cellular interfaces that prioritize critical communications. The industrial-grade design supports the most rugged conditions, including vibration and temperature changes. A Python development environment allows for edge computing and intelligence. Four Gigabit Ethernet ports connect other IP-capable systems, each configurable as an isolated secure LAN, or all four can function as a Layer 2 switch. Digi TrustFence®, a suite of hardware and firmware features, ensures the integrity of Digi TX54 security functions. Chip-level encryption protects the onboard file system.
Product Type	Modem/Wireless Router

Technical Information

Wi-Fi Generation	Wi-Fi 5

Wireless Specifications

Broadband Transmission Technology	Cellular Ethernet
Wireless LAN Standard	IEEE 802.11ac
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Cellular Generation	4G
Cellular Data Connectivity Technology	LTE HSPA+
Total Wireless Transmission Speed	108.38 MB/s

Interfaces/Ports

Number of Network (RJ-45) Ports	1
USB	Yes
Number of Broadband (RJ-45) Ports	3

Network & Communication

Ethernet Technology	Gigabit Ethernet
VPN Supported	Yes
Multi-SIM Supported	Yes
Number of SIM Card Supported	4
SIM Size Supported	Mini

Physical Characteristics

Form Factor	DIN Rail Mountable
Height	2.50" (63.50 mm)
Width	8.25" (209.50 mm)
Depth	5.75" (146.10 mm)
Weight (Approximate)	1.50 kg

Miscellaneous

Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Restriction of Hazardous Substances (RoHS) 2 Restriction of Hazardous Substances (RoHS) 3 Waste Electrical and Electronic Equipment Directive (WEEE)
Condition	No
UPC	063072965240
